Connection to power supply
The central vacuum unit is controlled by a
radio receiver unit that is plugged into an
earthed socket outlet.
Program the radio sender unit in the
radio receiver unit
➜ Plug radio receiver unit into the earthed
socket outlet (see Fig. 5-25).

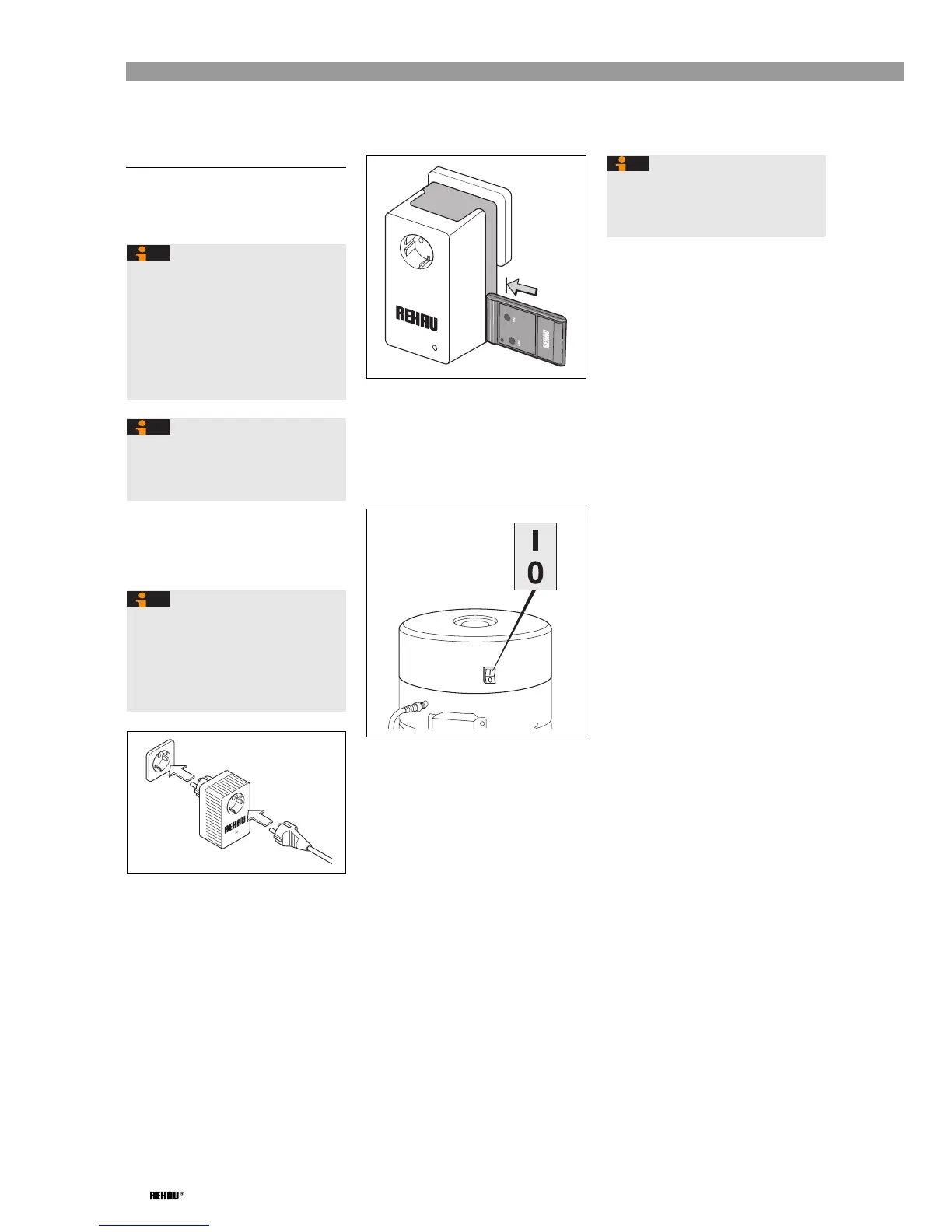

Fig. 5-25: Plugging in radio receiver unit
➜ Hold radio sender unit against the dark
rear section of the radio receiver unit
enclosure (see Fig. 5-26).
➜ Press one of the two send buttons on the
radio sender unit and keep it pressed until
the yellow LED lights up on the radio
receiver unit.
➜ Now remove the radio sender unit from the
radio receiver unit and press the same
button once again.
The settings will be saved and the yellow
LED will go out.
Fig. 5-26: Programming the radio sender
unit in the radio receiver unit
➜ To program the radio receiver unit for
communication with further radio sender
units, repeat the steps described above
with each radio sender unit.
Connecting the central vacuum unit
Fig. 5-27: Appliance switch on the central
vacuum unit
IOn
0Off
➜ Ensure that the central vacuum unit is
switched off at the appliance switch (see
Fig. 5-27).
➜ Connect the central vacuum unit's mains
plug to the radio receiver unit socket.
➜ When the red LED lights up on the radio
receiver unit, press the "OFF" button on
the radio sender unit.
The radio receiver unit interrupts the power
supply for the central vacuum unit and the
red LED goes out.
➜ Switch on central vacuum unit at the
appliance switch.
➜ To check whether the radio remote control
works, press the "ON" button on the radio
sender unit.
The central vacuum unit starts.
The site at which the central vacuum unit
is installed must be provided with an
earthed socket outlet (230 V, 16 A
Europe / 10 A CH) that is located at least
2 m but no further than 5 m from the
central vacuum unit.
The earthed socket outlet with the radio
receiver unit must be accessible at all
times.
➜ To avoid interference with the remote
radio control system: Keep a distance
of at least 2 m between central
vacuum unit and radio receiver unit.
The remote radio control system
contained in the suction set (Item No.:
242333-001) or available as a system
unit (radio receiver unit + radio sender
unit, Item No.: 243532-001) are already
programmed and can be installed
straight away.
If transmission power is not sufficient in
larger-type properties, we recommend
using a repeater (see Chap. 5.8,
Page 27).
