5.9.2.6
Connection to power supply
The central vacuum unit is started via the
control module (Item No. 249900-002) with
contact plug. The control module is plugged
into an earthed socket outlet.

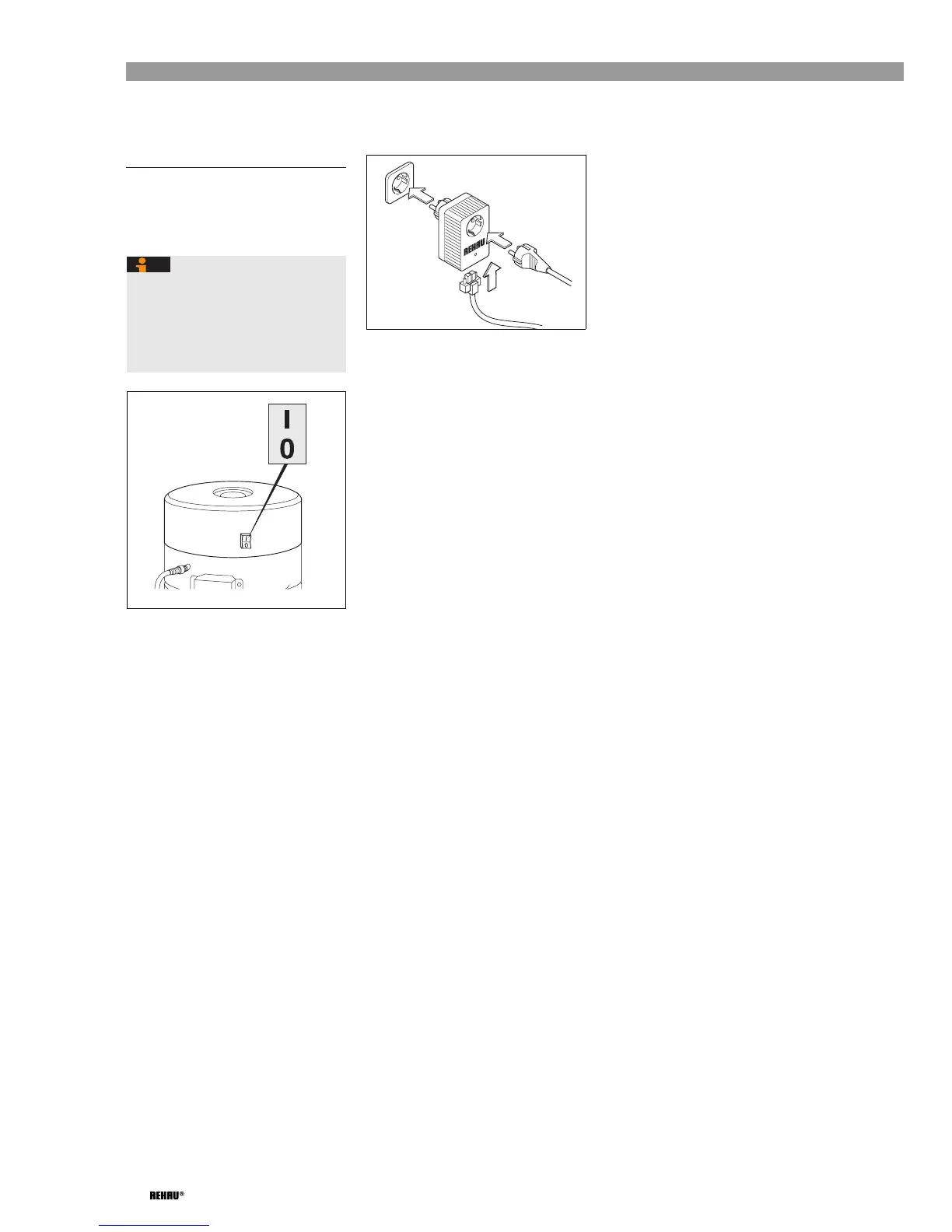

Fig. 5-42: Appliance switch on the central
vacuum unit
IOn
0Off
Fig. 5-43: Plugging in the control module
➜ Ensure that the central vacuum unit is
switched off at the appliance switch (see
Fig. 5-42).
➜ Connect the control cable to the contact
plug and fasten it with screws.
➜ Plug the control module into the earthed
socket outlet (see Fig. 5-43).
➜ Plug the contact plug into the control
module (bottom) and fastened it with
screws.
➜ Power the power plug of the central
vacuum unit into the control module.
➜ Switch on central vacuum unit at the
appliance switch.
➜ In order to start the suction process plug
the suction hose into a suction socket.
The location of the central vacuum unit
must be equipped with an earthed
socket outlet (230 V, 16 A Europe/10 A
CH).
The earthed socket outlet with the control
unit must be accessible at all times.
