REI TALAN 3.0 User Manual

3

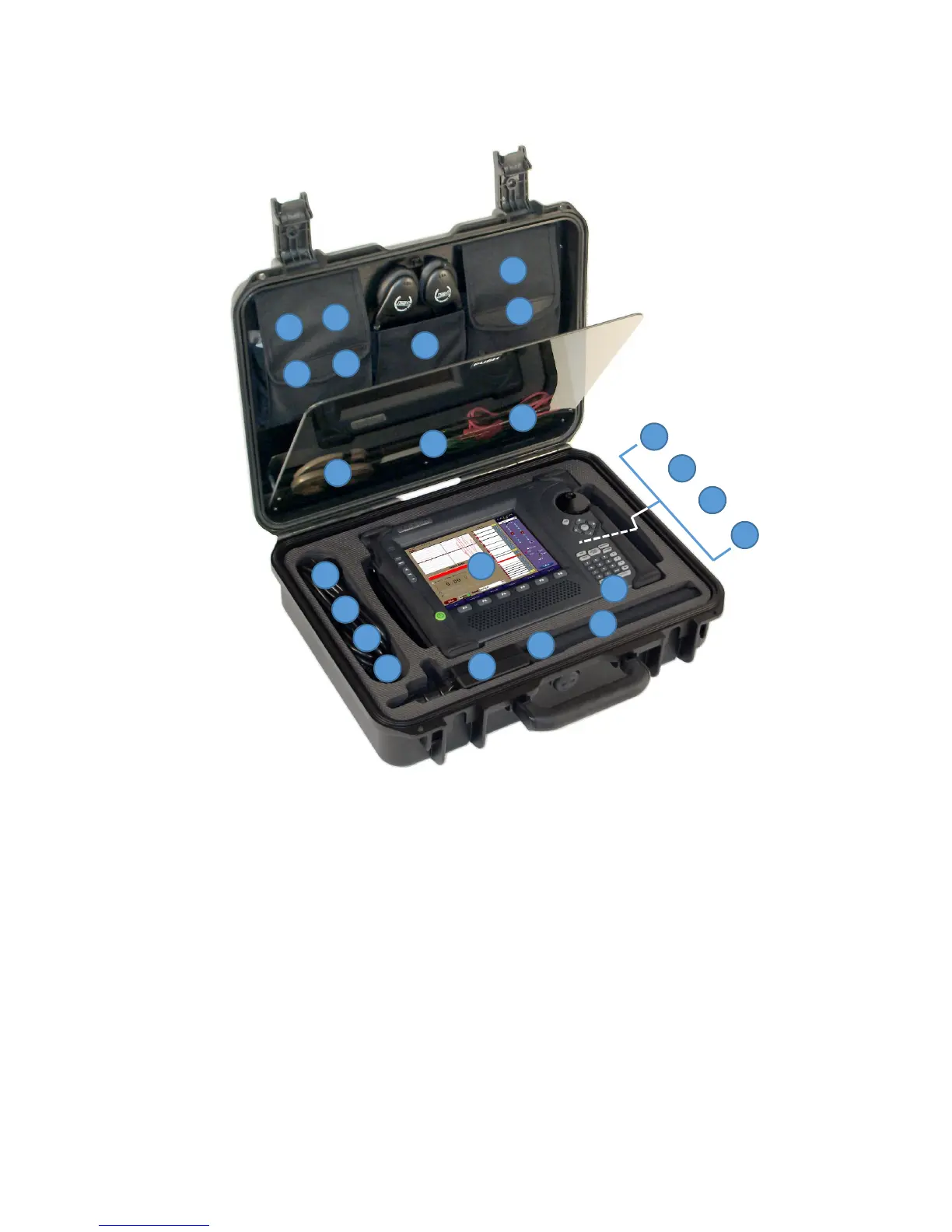

CASE CONTENTS
1. TALAN 3.0
2. US & Euro power cords
3. 15V adapter - for connecting power supply
4. VoIP adapter
5. Short network cable
6. HLP - Harmonic Locator Probe
7. Locator Probe Antenna
8. Compact Flash Memory Card - installed
9. RF Probe - 10 MHz - 2 GHz
10. DA-8000 Directional Antenna - 1.5 - 8 GHz
11. SMA-SMB - DA-8000 Connector Cable
12. SMB-SMB - DA-8000 Connector Cable
13. Lithium Ion rechargeable battery
14. 8 and 6 conductor phone cables
15. End of Line Box
16. Test Leads - red and green (earth ground)
17. Stylus - for use with the TALAN touchscreen
18. 66 Block Adapter
19. Red and black test probes
20. 8 Clip Breakout Cable
21. Headphones
22. CAT5 Patch Cable
23. 9V Battery
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

REI TALAN 3.0 Specifications

Control System

primary computer	32 bit RISC processor, 520 MHz
internal memory	64 MB SDRAM (OS), 64 MB Flash
external memory	Compact Flash Type III, USB mass storage

Digital Multimeter

sample rate	500 msec
AC/DC volts	0 to 250V Maximum
AC/DC current	0 to 300mA Maximum
resistance	0 to 42MΩ
capacitance	50pF to 40µF

Power System

external input	15VDC @3A
universal power supply	100-240VAC, 50-60Hz
removable battery	Rechargeable Lithium ion, 4-hour runtime

Mechanical

dimensions	10.0 in x 12.9 in x 2.7 in (25.4 cm x 32.8 cm x 6.9 cm)
weight with battery	6 lbs (2.7 kg)
case dimensions	5.4 in x 14.9 in x 19.5 in (13.7 cm x 37.8 cm x 49.5 cm)
loaded case weight	19.0 lbs (7.1 kg)
operating temperature	0°C to +50°C

Harmonic Locator Probe

operational frequency	225 kHz & 450 kHz
antenna type	Balanced Loopstick
headphone audio output	16Ω, 105dB SPL limited
battery	9V Alkaline
run-time	10 hours average, 22 hours (headphones)
size	17.5 in x 1.5 in (44.45 cm x 3.8 cm) stored, 63.75 in x 1.5 in (162 cm x 3.8 cm) fully extended
weight	1 lbs (.5 kg)
