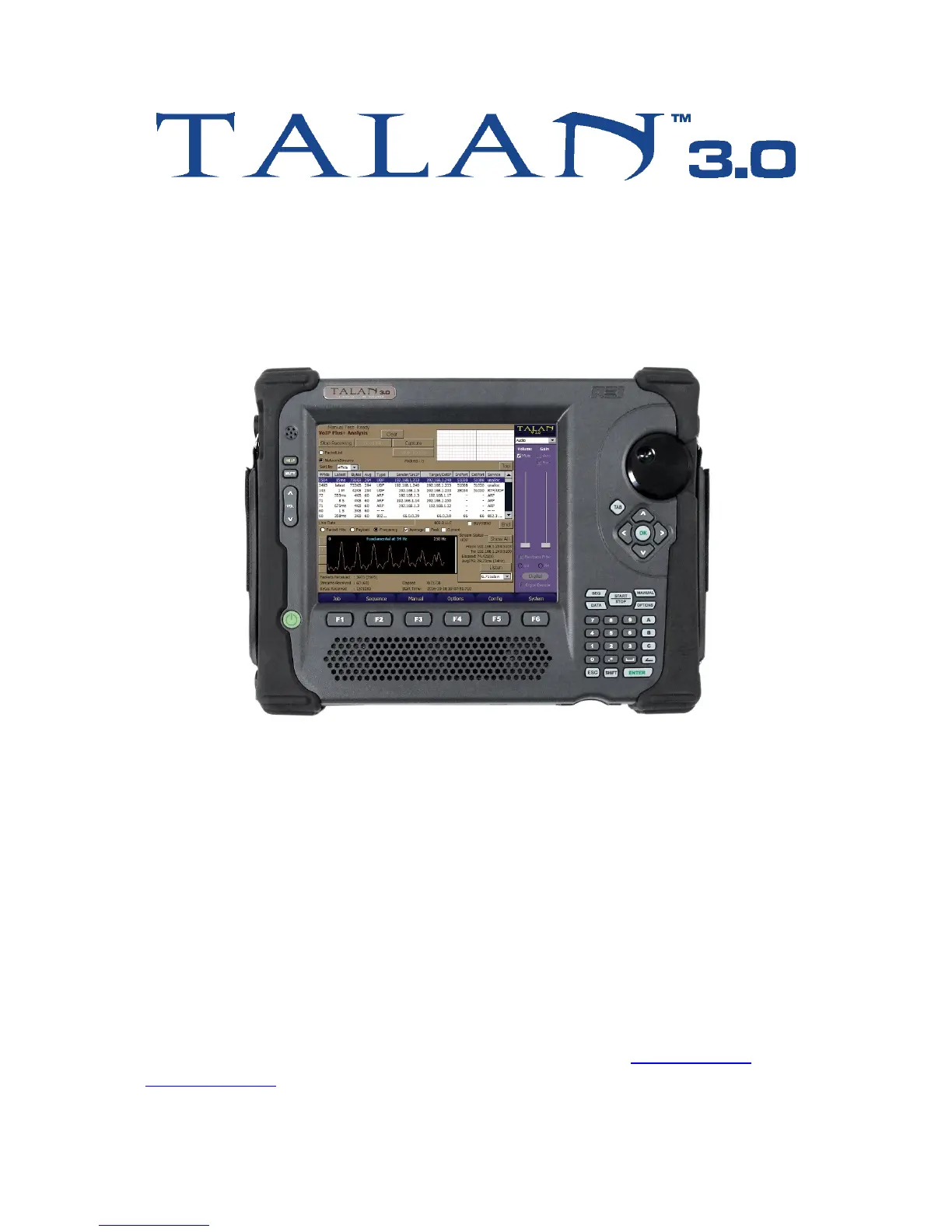

REI TALAN 3.0 User Manual

4
Telephone & Line Analyzer
User Manual
This document is intended to provide guidance and instruction on using the TALAN 3.0
Telephone and Line Analyzer for telephone testing.
The overall effectiveness of this product, and of any surveillance countermeasure, is dependent
on the threat level and the user’s ability to properly utilize the appropriate equipment.
REI offers the world’s largest commercially available Technical Security training facility. Training
courses include classroom instruction and hands-on exercises where students perform sweep
exercises in “live” environments utilizing “target rich” project rooms. The progressive course
curriculum is designed for the beginner or the seasoned Technical Security Technician.
Regularly scheduled courses are taught monthly; visit REI’s website (www.reiusa.net) or contact
REI (sales@reiusa.net) for training dates.

REI TALAN 3.0 Specifications

Control System

primary computer	32 bit RISC processor, 520 MHz
internal memory	64 MB SDRAM (OS), 64 MB Flash
external memory	Compact Flash Type III, USB mass storage

Digital Multimeter

sample rate	500 msec
AC/DC volts	0 to 250V Maximum
AC/DC current	0 to 300mA Maximum
resistance	0 to 42MΩ
capacitance	50pF to 40µF

Power System

external input	15VDC @3A
universal power supply	100-240VAC, 50-60Hz
removable battery	Rechargeable Lithium ion, 4-hour runtime

Mechanical

dimensions	10.0 in x 12.9 in x 2.7 in (25.4 cm x 32.8 cm x 6.9 cm)
weight with battery	6 lbs (2.7 kg)
case dimensions	5.4 in x 14.9 in x 19.5 in (13.7 cm x 37.8 cm x 49.5 cm)
loaded case weight	19.0 lbs (7.1 kg)
operating temperature	0°C to +50°C

Harmonic Locator Probe

operational frequency	225 kHz & 450 kHz
antenna type	Balanced Loopstick
headphone audio output	16Ω, 105dB SPL limited
battery	9V Alkaline
run-time	10 hours average, 22 hours (headphones)
size	17.5 in x 1.5 in (44.45 cm x 3.8 cm) stored, 63.75 in x 1.5 in (162 cm x 3.8 cm) fully extended
weight	1 lbs (.5 kg)
