Remak VCS User Manual

50
Control (HMI-DM,HMI-TM controllers)
a The user log-in is graphically indicated by the key
symbol in the page heading. The access levels are
distinguished by the following symbols.
b Page Heading
c Current line from the total number of lines on the page
d The page also includes the line above the current
display
e The page also includes the line below the current
display
f Access to the Main Menu from the current menu page
g Current line of the selection
Access to the Submenu
e cursor marks the selection of parameters on a correspond-
ing line. e arrow indicator in the right part of the display
indicates the option to access a submenu.
n Turn the knob (or use the Up and Down buttons) to select
the required line.
n Press the knob (Enter) to access the submenu.
If only the value description is highlighted on the line, the
value on the line is intended only to be displayed, refer to
Temperatures.
Value Settings
If the description and value of the parameter is highlighted on
the line, the highlighted value can be changed.
n Turn the knob (or use the Up and Down buttons) to select
the line.
n Press the knob (Enter) to confirm the page selection.
n Turn the knob (or use the Up and Down buttons) to change
the parameter values.
n Press the knob (Enter) to confirm the value change.
n Press the Esc button to exit the page.
Setting the Selection from Multiple Parameters
n e current parameter selection is marked.
n Turn the knob (or use the Up and Down buttons) to select
a new parameter.
n Press the knob (Enter) to confirm the selection or press
the Esc button to retain the original value as valid.
Setting the Continuous Value using the Knob
e scale displays minimum and maximum values.
n Set the arrow on the respective number
n By turning the wheel, the number can be changed
from 0 to 9.
n e cursor is moved to the following item automatically
n Press the knob to confirm the selection or press the Esc
button to retain the original value as valid
Setting the Continuous Value using the Up
and Down Buttons
n Press (hold) the Up or Down button to set the required
value.
n Press Enter to confirm the selection or press the Esc but-
ton to retain the original value as valid.

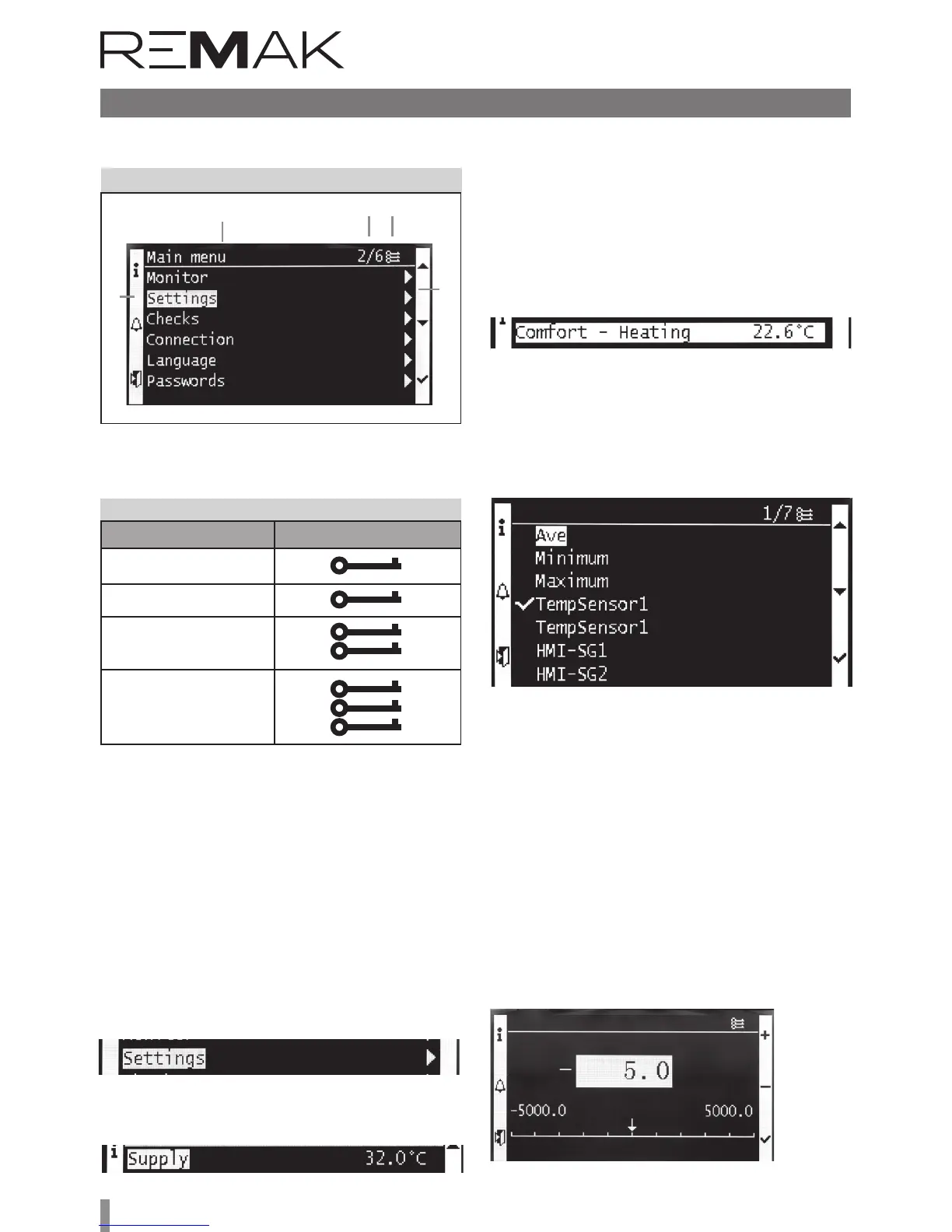

Display Layout
User Icon
GUEST
USER
ADMINISTRATOR
SERVICE
Table 3 – access levels
Figure 26 – LCD isplay
a
b
d
c
e
g
f
