Véhicule électrique : charge (XFK - Renault)
ELECTRIC VEHICLE: charging (5/13)
Charging type Alternating current (AC)
Connection Charging terminal 4/Charging lead 5 Vehicle 3/Charging lead 6
Charging types that con-
form to European stand-
ards (for all other cases,
please consult an ap-
proved dealer).
5
4
3
3 6
4 5
Charging types that conform
to European standards
Alternating current (AC)
If the information is displayed on the
vehicle charging flap, follow the instruc-
tions below.

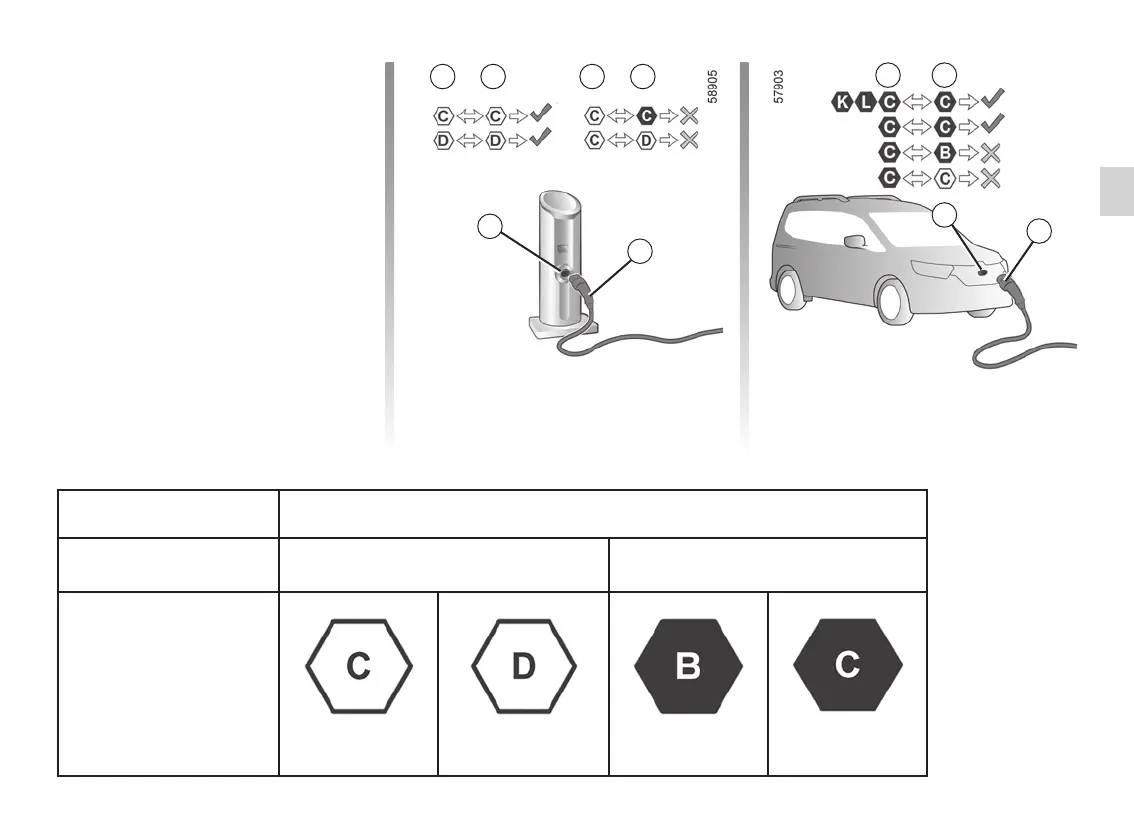

Before plugging in a charging lead,
check that:
– the colour and one of the letters of
the inlet socket 4 correspond to the
colour and one of the letters on the
end 5 of the lead;
– the colour and one of the letters of
the inlet socket 3 correspond to the
colour and one of the letters on the
end 6 of the lead.
4 5
6
