Barres de toit (XFK - Renault)
Modular roof bars
Before transporting a load on the mod-
ular roof bars, they must be set to their
operating position:

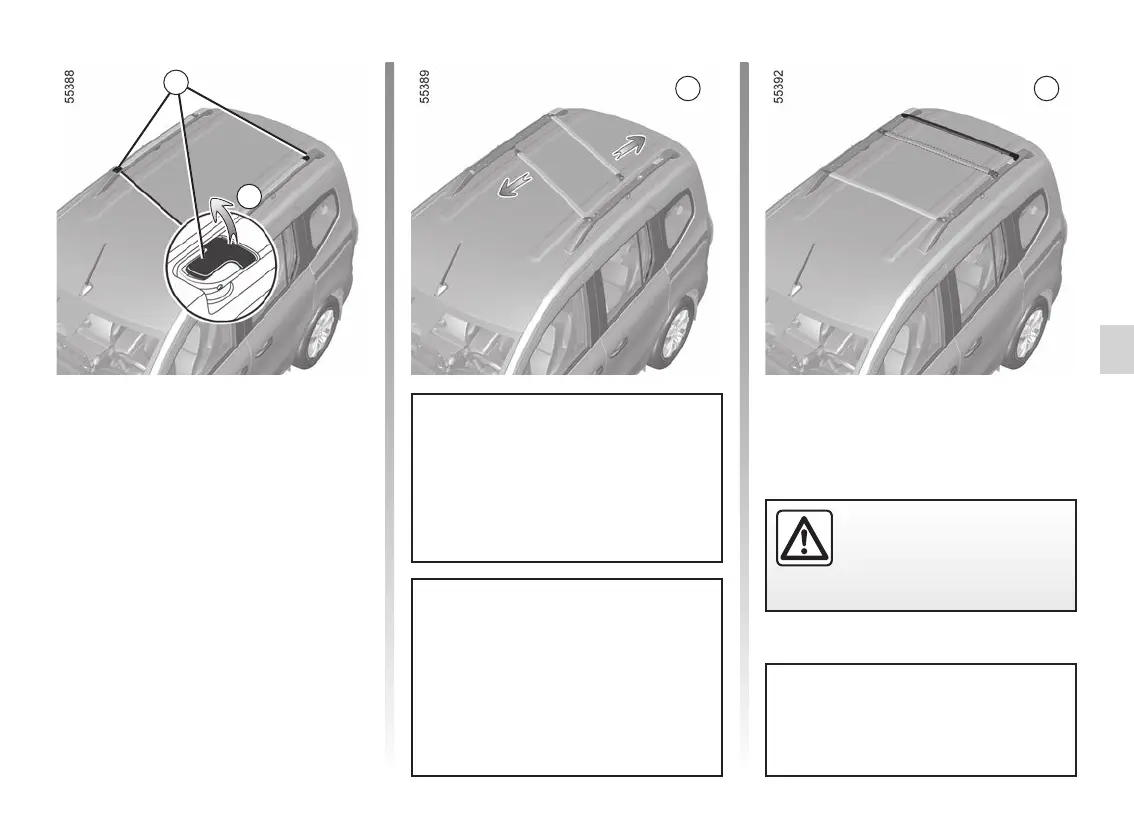

– unclip the levers 1 (movement A);
– raise the bars sufficiently to allow
them to be pivoted (figure B);
– lock the bars in the transverse
position by clipping the levers 1
(figure C);
– check that they are correctly locked.
Roof bars
ROOF BARS (1/3)
It is strictly forbidden to place the
modular roof bars in the transverse
position (carrying position) when
entering a roller-type car wash.
B C
Maximum weight on each roof bar:
40 kg evenly distributed (80 kg over
two roof bars).
When handling, ensure that the
bars do not touch the vehicle roof as
they may scratch the roof.
1
Make sure that the two roof
bars are correctly posi-
tioned and locked.
A
