Rear lights and side lights (replacing bulbs)
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (1/4)
To comply with current legislation, or
as a precaution, you can obtain an
emergency kit from your approved
dealer containing a set of spare
bulbs and fuses.
Direction indicator lights,
reversing lights, fog lights
and brake lights

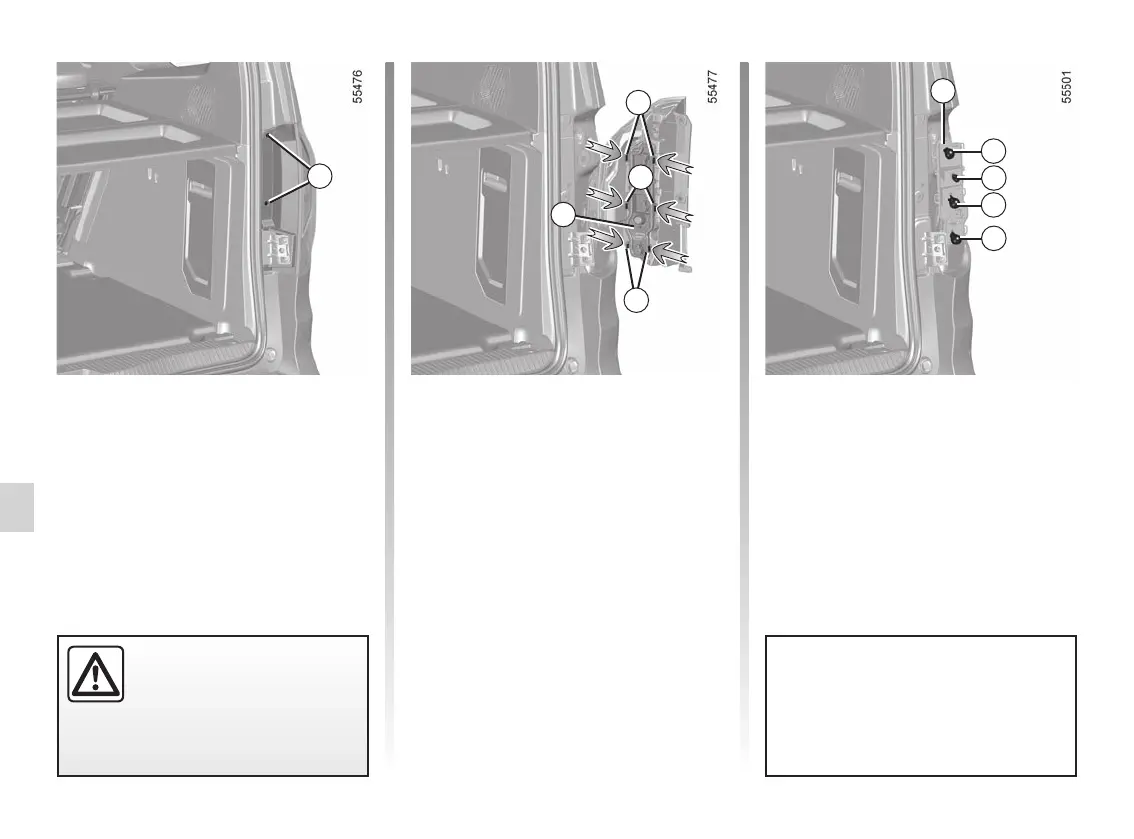

Undo bolt 1 to remove the light.
1
Release the light assembly from out-
side the vehicle by pulling towards the
rear.
Remove the bulb holder 3 by releasing
clips 2.
Refitting
To refit, proceed in the reverse order,
taking care not to damage the wiring,
and fasten clips 2 on the bulb holder 3.
2
2
2
3
4 Brake light
Bulb type 4: P21W or, depending on
the vehicle, PR21W.
5 Reversing light
Bulb type 5: W16W.
6 Indicator light
Bulb type 6: PY21W.
7 Fog light
Bulb type 7: P21W.
4
5
6
3
7
