Siège arrière: version châssis long (XFK - Renault)
REAR SEATS : long chassis version (15/18)

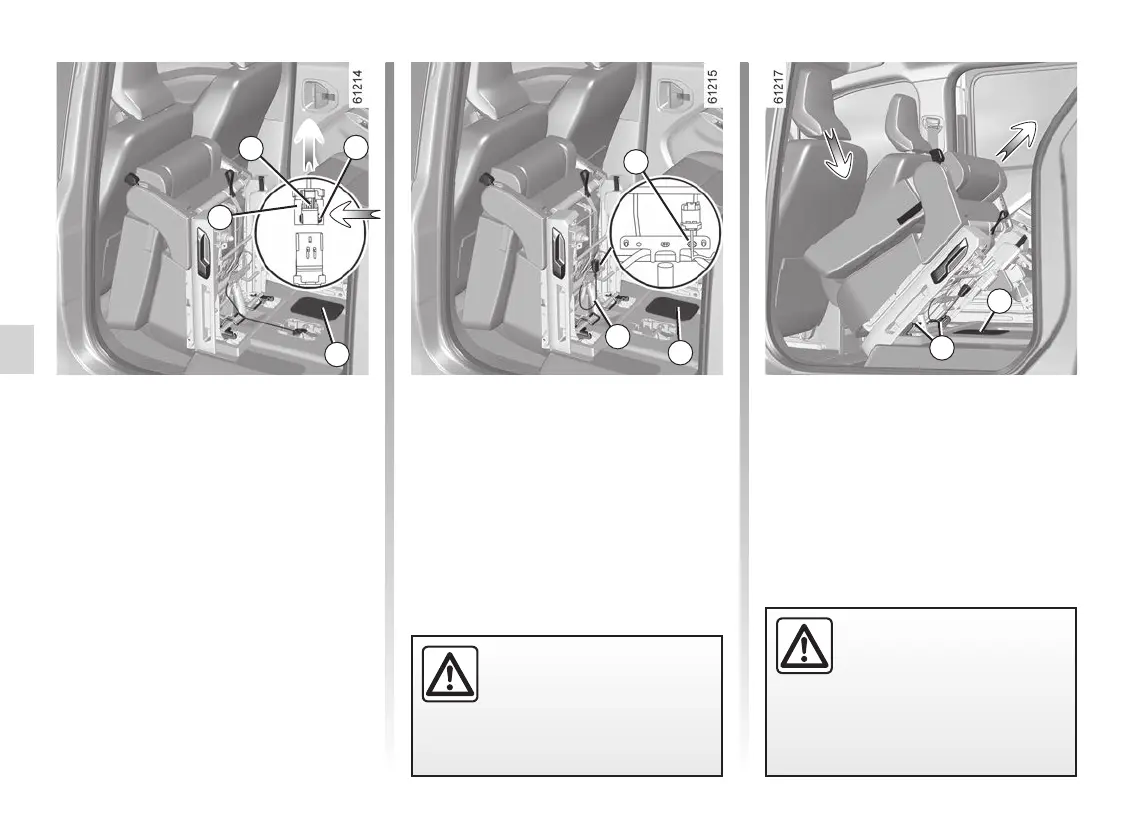

To remove the seat:
– Pull the release switch 23 indicated
with a red marking and hold it to tilt
the seat to 45°;
– Guide the seat to the table position.
You can then remove the unlocked seat
from the vehicle.
22
20
23
20
21
To avoid all risk of injury,
ensure that nobody is in
the proximity of the moving
parts.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
The rear seat is heavy. For your own
safety, please handle it carefully.
– Press the area 18 around the con-
nector and pull it at the same time to
disconnect it;
– Ensure the disconnect by manipulat-
ing the connector without pulling the
cable 21;
– Attach the cable 21 from the connec-
tor to the clip 22;
– Replace the flap 20.
Second-row and third-row
rear seats
To remove the seats
The second-row and third-row seats
can be removed for transporting bulky
objects. They are fitted with a connec-
tor to indicate the presence of the seat
on the vehicle and/or the presence of
a passenger on the seat and its belt
➥ 1.69.
– Fold the seat into the folded position,
and remove the flap 20;
– Disconnect the connector 17 by
moving the red tab 19;
20
17
19
18
