Filet de retenue de bagages (XFK - Renault)

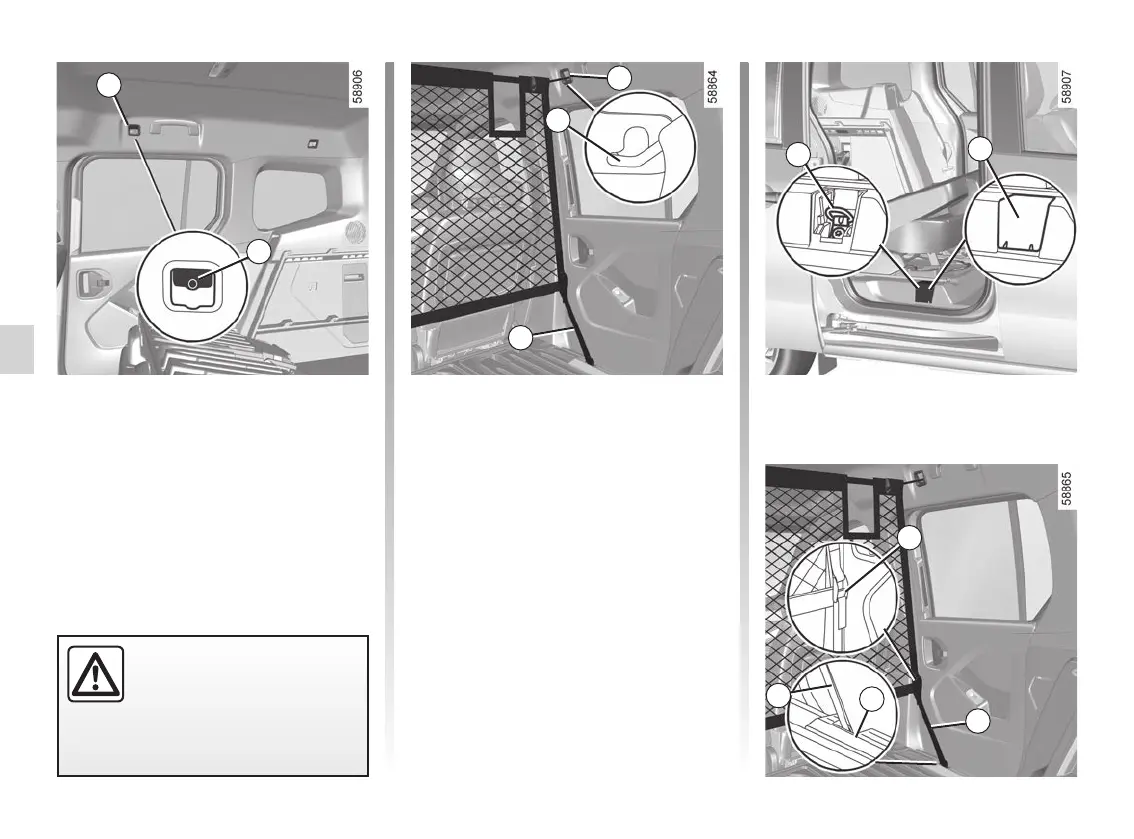

– lift the covers 2 to access the an-
chorage points 1;
– insert the upper rod 4 of the net into
the anchorage points 1;
– remove the covers 8 to access the
anchorage points 9;
– pass the lower straps 5 of the net
through the anchorage points 9;
– then insert them into the 7 net lock-
ing system;
– adjust the strap 5 of the net so that
it is taut (adjust the right-hand strap
first).
LUGGAGE NET (2/4)
7
5
9
5
5
1
2
Fitting the luggage net
behind the front seats
(standard chassis)
Inside the vehicle and on each side:
– place the entire bench seat in the
flat-floor position ➥ 3.44;
Do not install the luggage
net in this position when a
passenger is occupying a
rear seat.
4
1
8
7
5
9
