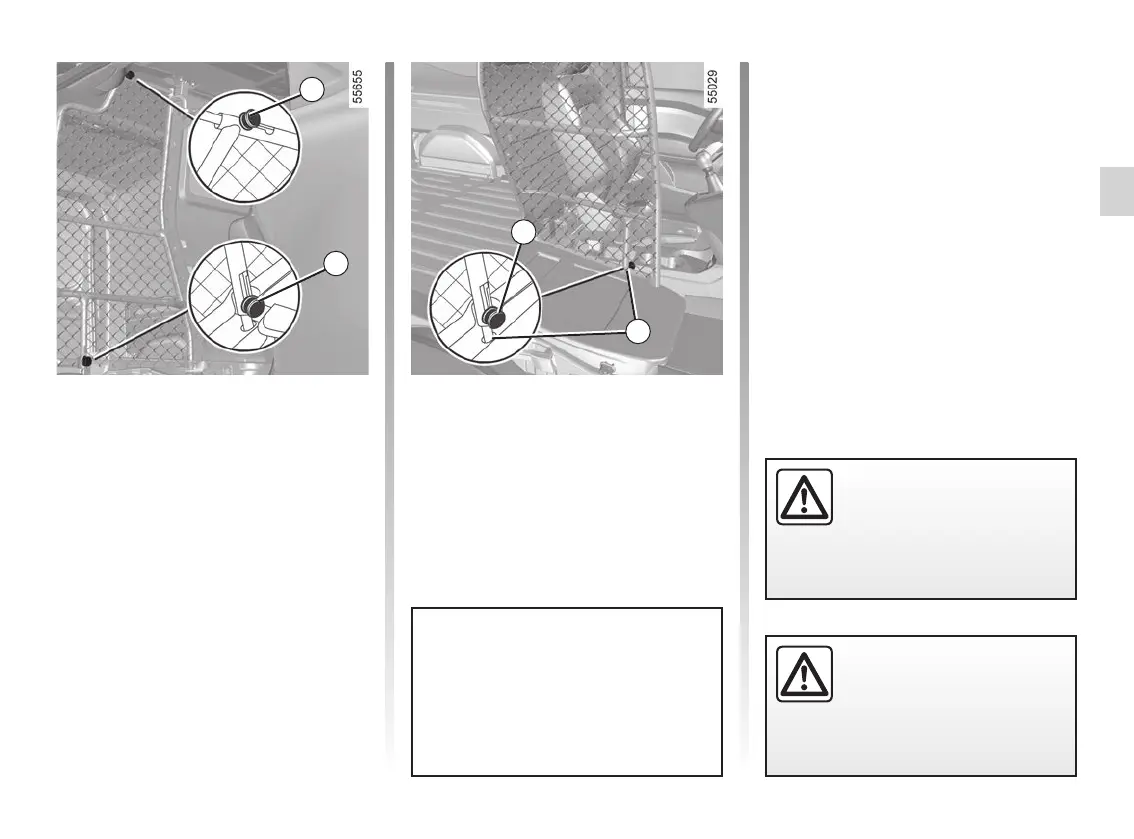

Cloison de séparation pivotante (XFK - Renault)
– pivot the moving section 90 de-
grees, lock it at point 3 and lower
the catch 2. Ensure that the catch is
locked correctly 2.
To rotate the partition
– Deactivate the front passenger
airbag ➥ 1.131 ;
– place the seat in the flat position
➥ 1.60 ;
– unlock the swivelling section of the
partition by lifting catches 1 and 2;
– before turning the mobile section,
ensure that the 1 and 2 catches are
in the unlocked position;
When handling, ensure that the seat
belt does not become damaged.
3
2
SWIVELLING PARTITION (1/2)
1
2
The swivelling section must
always be locked when the
vehicle is driven.
Risk of injury.
For your safety, fasten
down any objects trans-
ported with the seat in flat-
floor position.
