Reversing camera
Operation

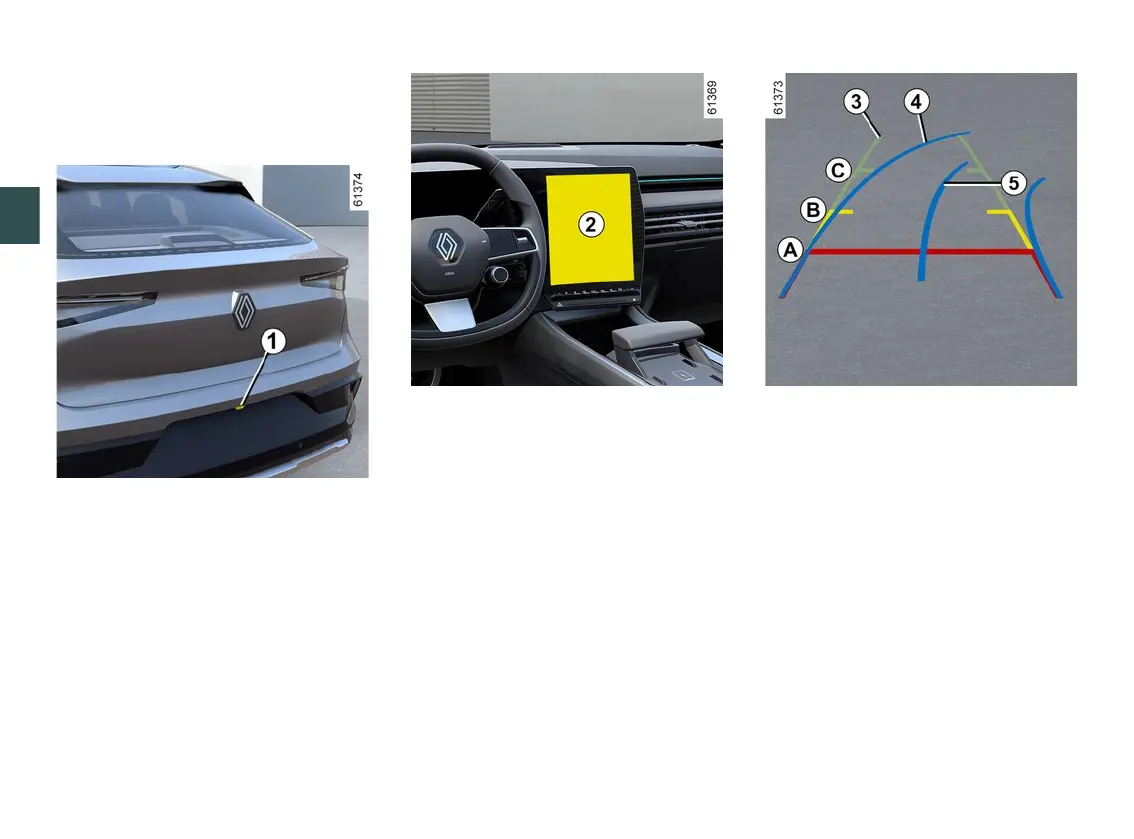

When the vehicle is reversing, the
camera
1
on the tailgate transmits a
view of the area surrounding the rear
of the vehicle to the multimedia display
2
accompanied by one to three guide
lines
3
,
4
and
5
(fixed, mobile and
trailer guide lines).
This system uses several guidelines
for its operation (mobile for trajectory
and fixed for distance). When the red
zoneisreached,usethebumperim-
age to stop accurately.
Fixed guide lines
3
The fixed gauge includes coloured
markers
A
,
B
and
C
indicating the
distance behind the vehicle:
–
A
(red)atapproximately30cen-
timetres from the vehicle;
–
B
(yellow)atapproximately70cen-
timetres from the vehicle;
–
C
(green) at approximately 150
centimetres from the vehicle.
Thisgaugeremainsfixedandindi-
cates the vehicle trajectory if the
wheels are in line with the vehicle.
Moving guide line
4
Thisisshowninblueonthemultime-
dia screen
2
. It indicates the vehicle
trajectory according to the position of
the steering wheel.
Trailer guide line
5
Thisisshowninblueonthemultime-
dia screen
2
.Thisindicatesthetrajec-
tory of the trailer towbar according to
the steering wheel position. It allows
the driver to position the towbar as
close as possible to the trailer's towing
head.
Trailer view
In forward gear, if a trailer is attached,
pressthe"Trailer"buttonfromthe"Ve-
hicle" world on your multimedia screen
2
to enable the camera
1
to transmit a
view of the area surrounding the rear
of the vehicle during approximately 30
seconds.
