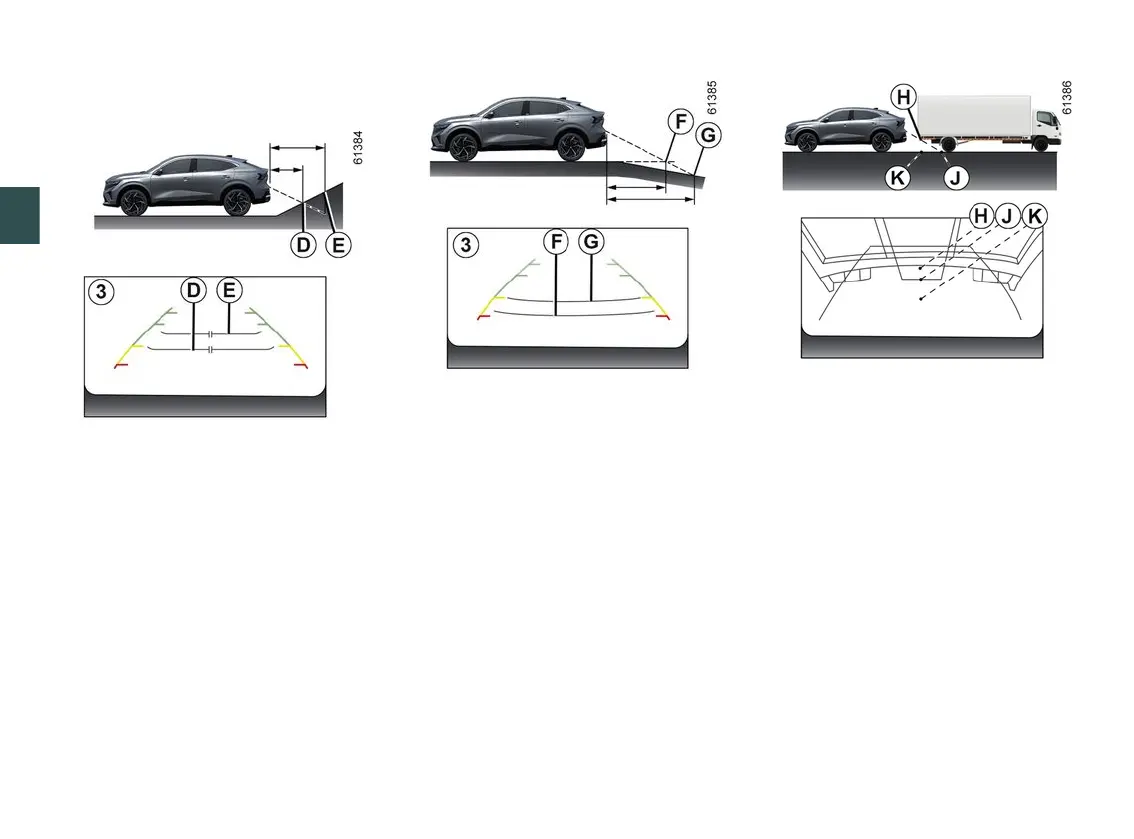

Difference between the estimated
distance and actual distance
Driving or reversing towards a steep
uphill slope
The fixed guidelines 3 showthedis-
tances as closer than they actually are.
The objects shown on the screen are
actually further away on the slope.
For example, if the screen displays an
object at D , the actual distance of the
object is at E .
Driving or reversing towards a steep
downhill slope
The fixed guidelines 3 showthedis-
tances as further than they actually
are.
Therefore, the objects shown on the
screen are actually closer on the
slope.
For example, if the screen displays an
object at G , the actual distance of the
object is at F .
Driving or reversing towards a pro
truding object
Position H seems further than position
J on the screen. However, position H
is at the same distance as position K .
The trajectory indicated by the fixed
and mobile guidelines do not take into
account the height of the object. So
thereisariskthatthevehiclemaycol-
lidewiththeobjectwhenreversingto-
wards position K .
