FUSES
6
366 - Practical advice
Do not pull the component
5
(risk of
somevehicleequipmentbeingdeacti-
vated).
Replacement fuses are available in
zone
6
.

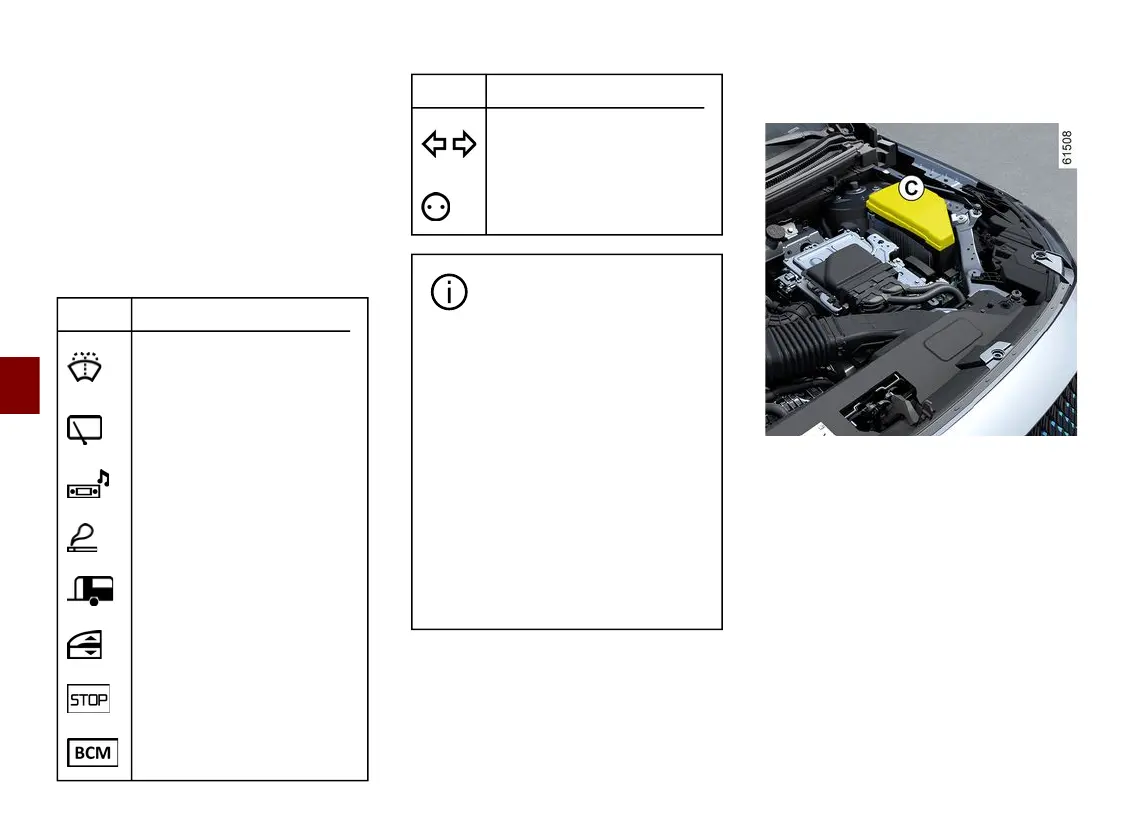

Allocation of fuses
(the presence of certain fuse de
pends on the vehicle equipment lev
el)
Icon Allocation
Screen washer pump
(dependingonthevehi-
cle)
Rear windscreen wiper
Multimedia accessories
socket
Cigarette lighter socket
Towbar socket
One-touchelectricwin-
dows
Brake lights
Passenger compartment
ECU
Icon Allocation
Direction indicator lights
(dependingonthevehi-
cle)
Luggage compartment
accessories socket
Usethefuseallocationla-
belinthestoragecompart-
ment to identify the fuses.
Passenger compartment
A
: the
fuse allocation label can be found
on the rear side of the flap
1
.
Passenger compartment
B
: the
fuse allocation label can be found
behind the glovebox
3
.
Certainfusesshouldonlybere-
placed by a qualified professional.
These fuses are not listed on the
label.
Onlychangethefusesrepresent-
ed on the label.
Fuses in the engine compartment
C
Some functions are protected by fuses
located in the engine compartment
(unit
C
).
However,becauseoftheirreducedac-
cessibility, we advise you to have
your fuses replaced by an approved
Dealer.
Fuses underneath the rear floor
D
(depending on the vehicle)
