E-TECH PLUG-IN HYBRID VEHICLE (PHEV)
2
48 - Getting to know your vehicle

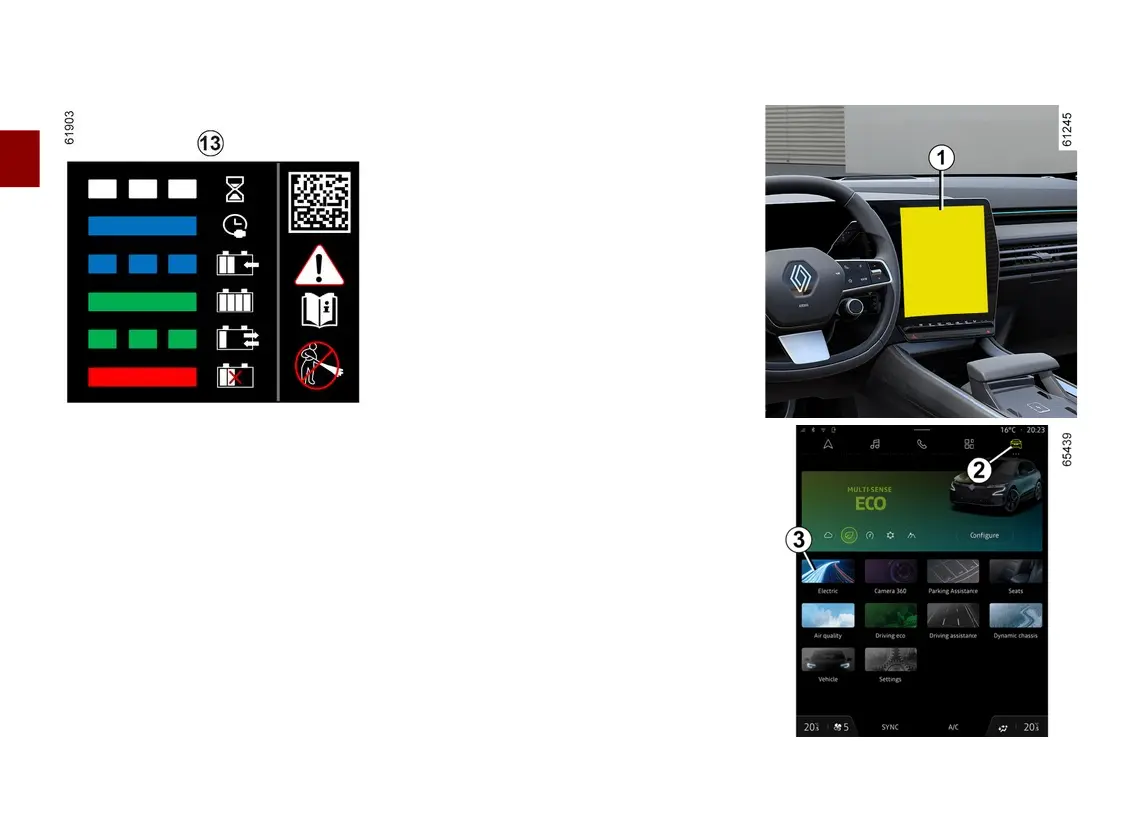

Label 13
The label 13 located on the charging
flap 8 provides information on the
charging operation according to the
status of the warning light 9 :
– when it flashes in white this indicates
that the lead is plugged into the vehicle
and the system is carrying out its
checks;
– when it lights up continuously in blue
thisindicatesthatchargingprogram-
ming is activated;
– when it flashes in blue this indicates
that charging is in progress;
– when it lights up continuously in
green this indicates that the vehicle is
fully charged;
– when it lights up continuously in red
this indicates an operating fault.
The label 13 located on the right-hand
sideremindsyouofthefollowingin-
structions:
– do not wash the charging flap using
a high-pressure water jet;
– with the vehicle stationary, the valve
and the charging flap can be opened;
– when the vehicle is being driven, the
valve and the charging flap must be
closed;
– opentheflaptoconnectthecharg-
ing lead;
– closetheflapagainoncediscon-
nected;
– connecttoadomesticsocket,anal-
ternating current charging terminal or a
quick charging terminal;
– for any information on charging,
pleaseconsultyourvehicleuserman-
ual.
Charging programming
