5.5 Miscellaneous
5.5.1 User and Power LEDs
5 LEDs are provided on the EK-RA4M3 board.
Behavior of the LEDs on the EK-RA4M3 board is described in the following table.
Table 18. EK-RA4M3 Board LED Functions
Designator
Color
Function
MCU Control Port
LED1
Blue
User LED
P415
LED2
Green
User LED
P404
LED3
Red
User LED
P400
LED4
White
Power on indicator
+3.3V
LED5
Yellow
Debug LED
J-Link OB MCU
The User LEDs may be isolated from the Main MCU, so the associated ports can be used for other
purposes. To separate LED1 from P415, Trace Cut Jumper E27 must be open. To separate LED2 from
P404, Trace Cut Jumper E26 must be open. To separate LED3 from P400, Trace Cut Jumper E28 must be
open.

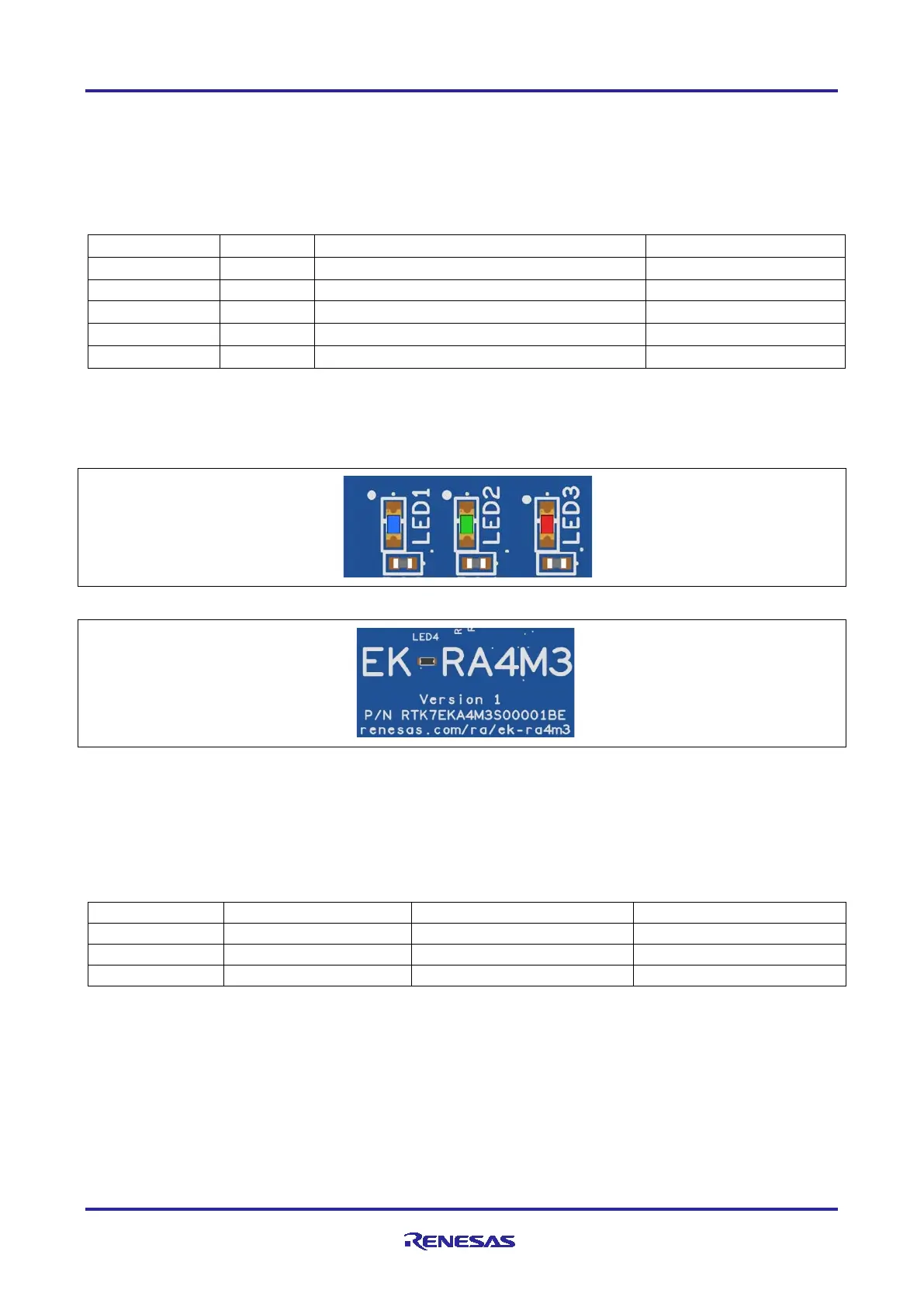

Figure 17. User LEDs
Figure 18. Power LED
5.5.2 User and Reset Switches
Three miniature, momentary, mechanical push-button type SMT switches are mounted on the EK-RA4M3
board.
Pressing the Reset switch (S3) generates a reset signal to restart the RA MCU.
Table 19. EK-RA4M3 Board Switches
Designator
Function
MCU Control Port
Button Color
S3
MCU Reset Switch
RESET#
Red
S2
User Switch
P006 (IRQ11-DS)
Blue
S1
User Switch
P005 (IRQ10-DS)
Blue
The User Switches S1 and S2 may be isolated from the Main MCU, so the associated ports can be used for
other purposes. To separate S1 from P005, Trace Cut Jumper E31 must be open. To separate S2 from
P600, Trace Cut Jumper E32 must be open.
