Renesas RA Family FPB-RA2E1 v1 – User's Manual

R20UT4956EG0100 Rev 1.00 Page 8 of 24

Jul.23.21

2. Box Contents

The following components are included in the box:

1. FPB-RA2E1 v1 board

2. Printed Quick Start Guide

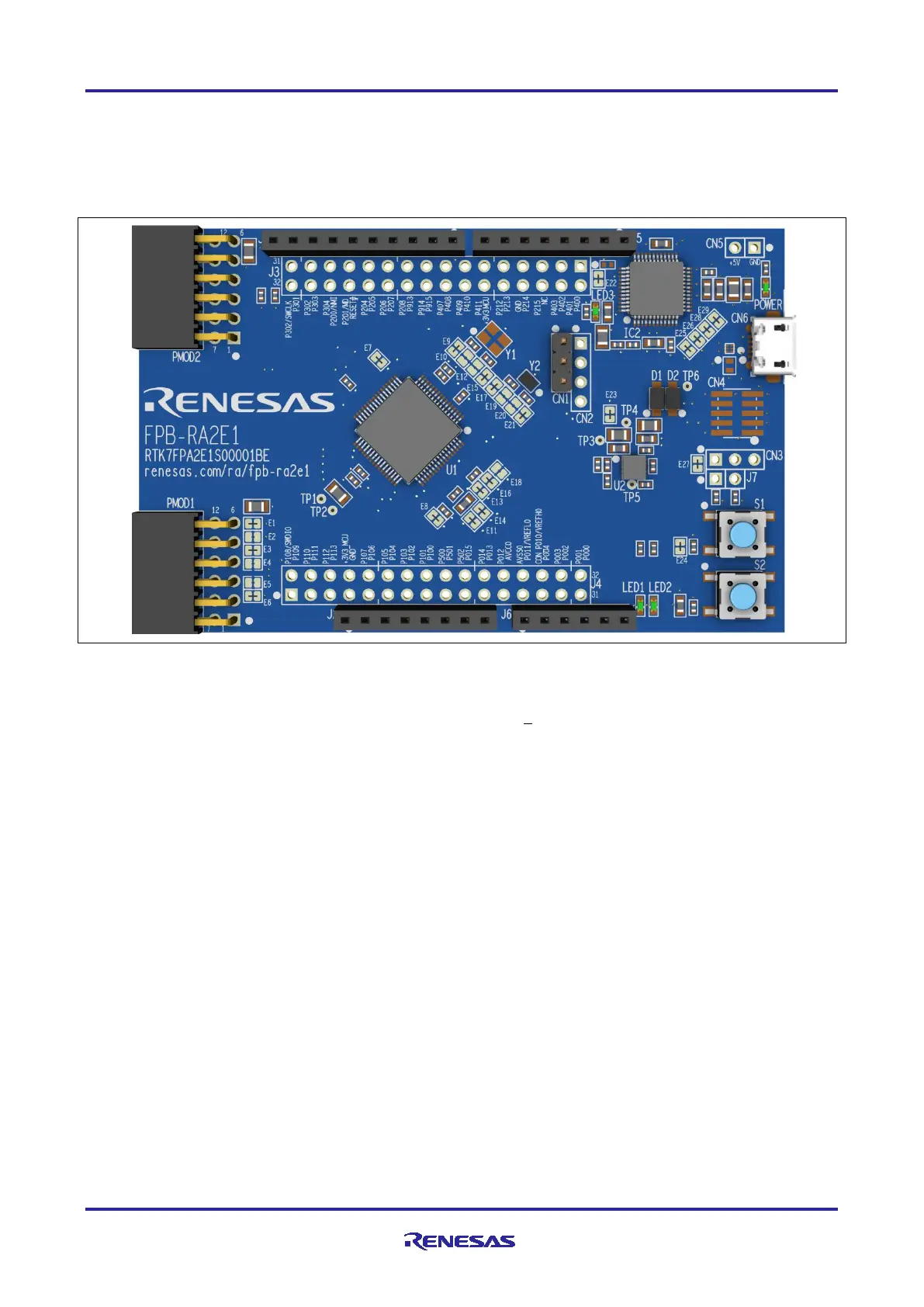

Figure 3. FPB-RA2E1 Board

3. Ordering Information

• FPB-RA2E1 v1 orderable part number: RTK7FPA2E1S00001BE

Note: The underlined character in the orderable part number represents the kit version.

• FPB-RA2E1 board dimensions: 53 mm (width) x 85 mm (length)
