Renesas RA Family FPB-RA2E1 v1 – User's Manual
R20UT4956EG0100 Rev 1.00 Page 18 of 24
Jul.23.21

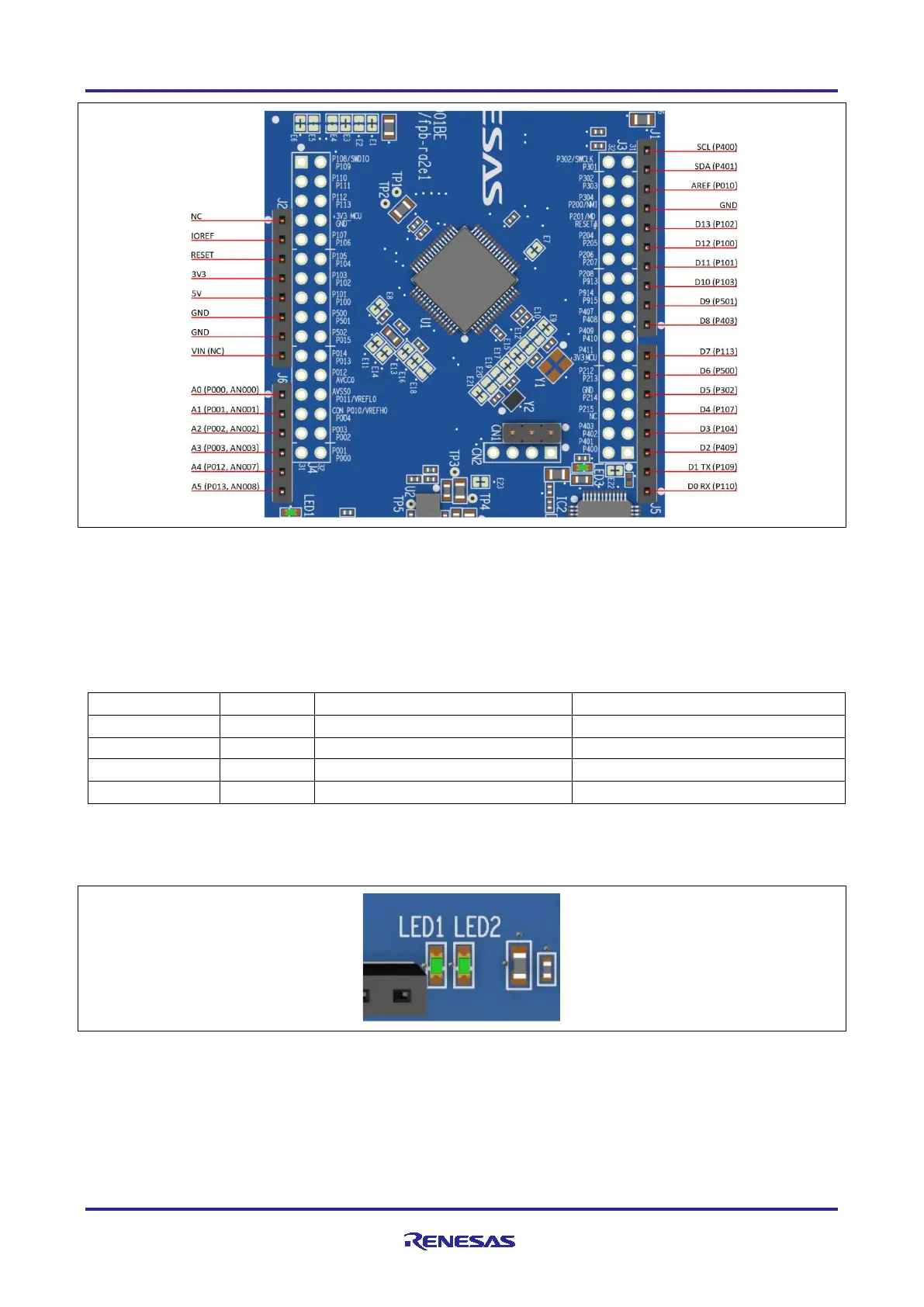

Figure 12. Arduino Uno Connectors
5.4 Miscellaneous
5.4.1 User and Power LEDs
Four LEDs are provided on the FPB-RA2E1 board.
Behaviour of the LEDs on the FPB-RA2E1 board is described in the following table.
Table 11. FPB-RA2E1 Board LED Functions
Designator
Colour
Function
MCU Control Port
LED1
Green
User LED
P015
LED2
Green
User LED
P914
POWER
Green
Power on indicator
+3.3 V
LED3
Green
Debug LED
E2 On Board Debugger MCU
The User LEDs may be isolated from the main MCU so that the associated ports can be used for other
purposes. To disconnect LED1 from P015, trace cut jumper E8 must be open. To disconnect LED2 from
P914, trace cut jumper E7 must be open.
Figure 13. User LEDs
