4. Hardware Architecture and Default Configuration
4.1 Board Architecture
The FPB-RA2E1 board is designed with an architecture similar to other boards in the FPB series. Alongside
the MCU there is an on-board programmer, pin headers for access to all the pins on the MCU, a power
supply regulator, some LEDs and switches, and several ecosystem I/O connectors (Pmod and Arduino).
Board
Functionality
Features
Function present on
all similar boards
Functionality is:
MCU Native Pin
Access
RA MCU, breakout pin headers
for all MCU I/O and power,
current measurement
Yes
MCU dependent
System Control
and Ecosystem
Access
Power, debugger, user LEDs
and switches, reset switch,
ecosystem connectors, boot
configuration
Yes
Same or similar across
other FPB boards

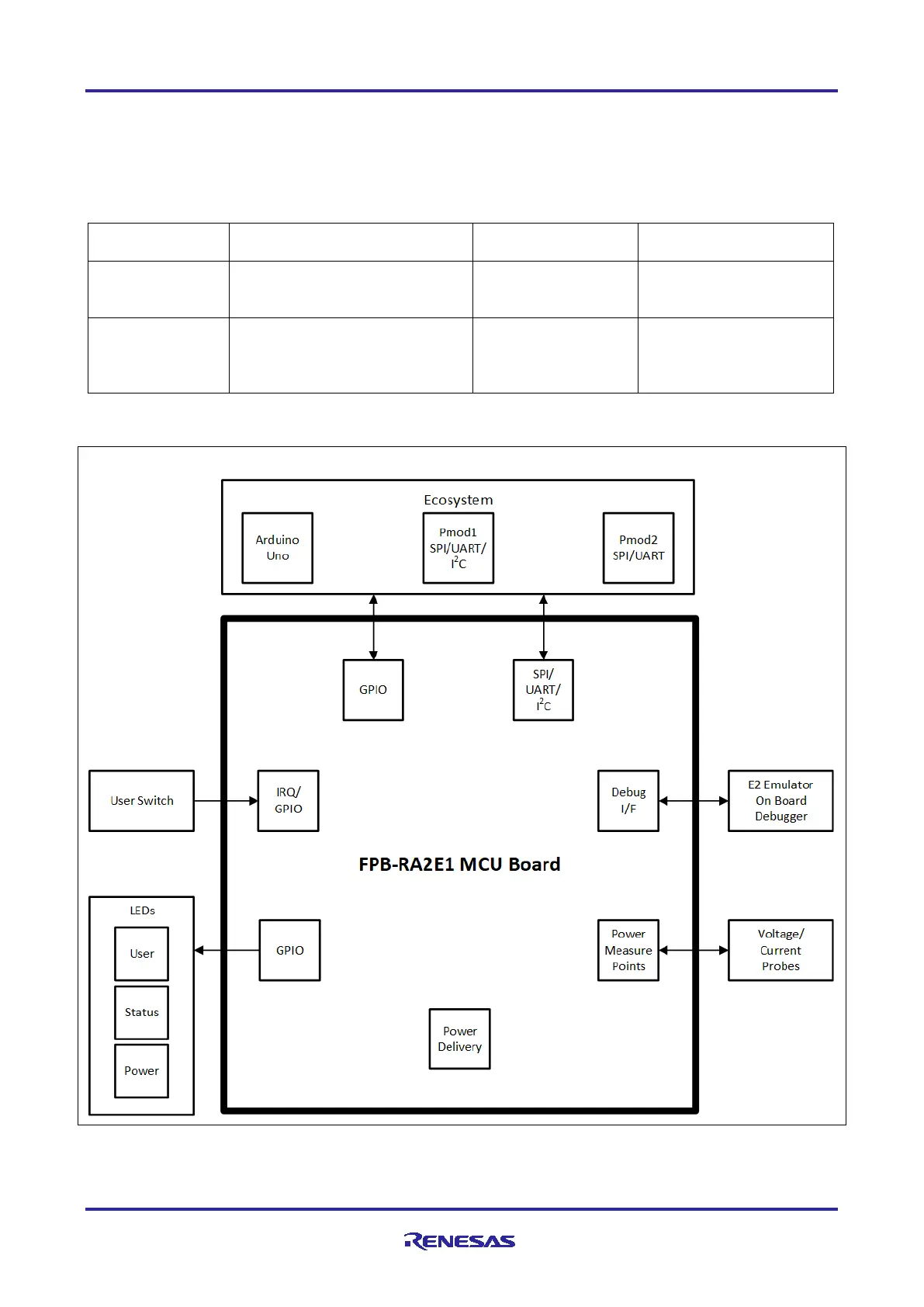

4.2 Block Diagram
System Block Diagram
Figure 4. FPB-RA2E1 Board Block Diagram
