Renesas RC22312A - Configure the Evaluation Board; Figure 30. Connect to the Device in Ricbox; Figure 31. Connected Button; Figure 32. Program Button

To Next Page

To Previous Page

RC22312A/RC32312A Evaluation Board Manual

R31UH0022EU0100 Rev.1.00

Mar 28, 2023

Page 20

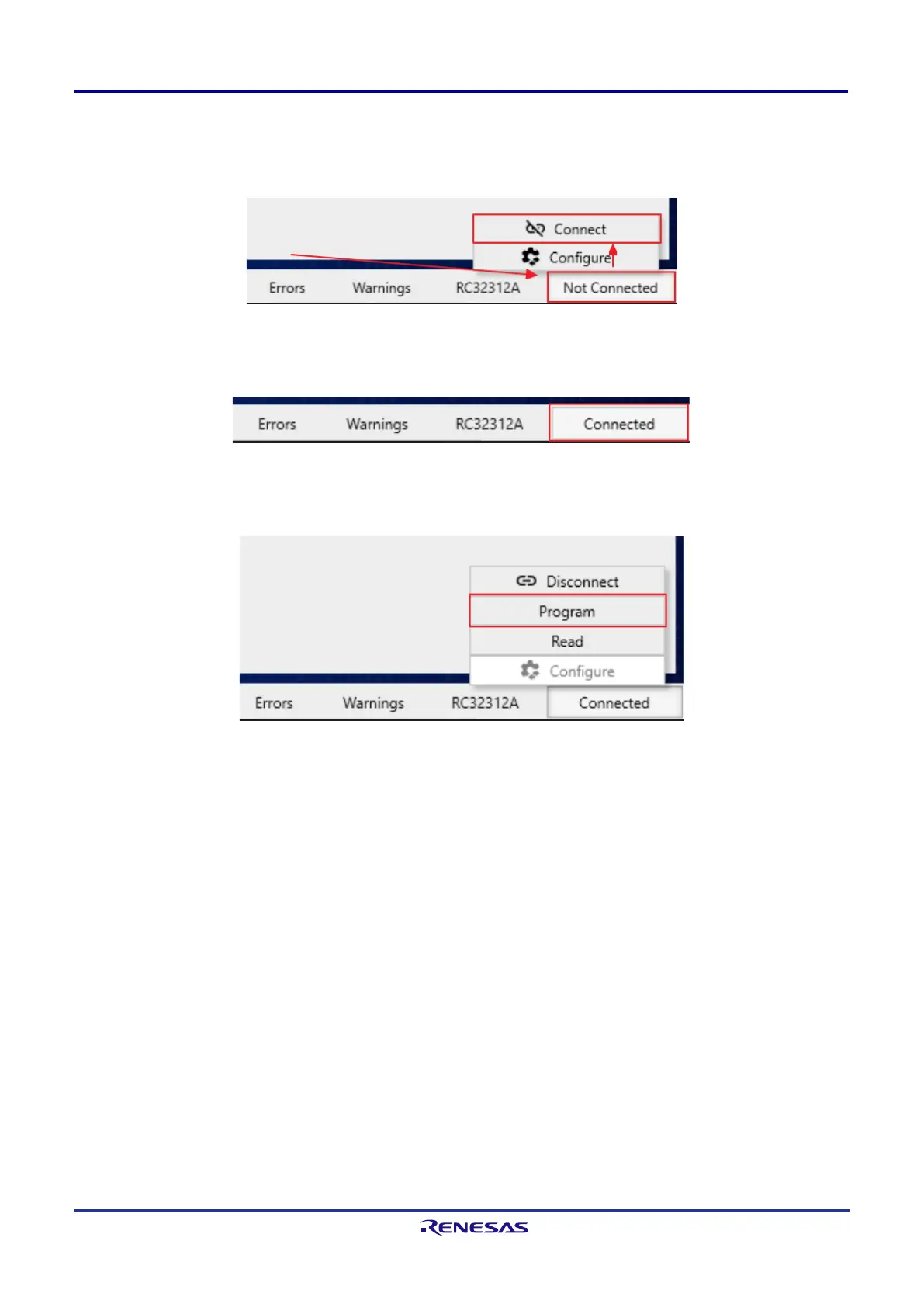

1.3.3. Configure the Evaluation Board

1. To establish communication between the EVB and the GUI, click the Not Connected button in the lower right

corner, then click Connect.

Figure 30. Connect to the Device in RICBox

2. Once the RICBox connection is established to the EVB, the “Not Connected” button will change to

“Connected”.

Figure 31. Connected Button

3. Click the Program button to write all the changed registers from the GUI to the on-board device. Any register

changes made after clicking the “Program” button will occur in real-time and the device will update.

Figure 32. Program Button
