1.5 Mounting of the Device
The board is designed for use with the following devices:
• R7F702302FAFM-C (RH850/U2A6)
The device must be placed inside the socket IC1. To insert the device, align the device pin 1
with the marking of the socket.
Pin 1 of the socket is on the side with the “IC1” label (see also white point in
Figure 1.1
Piggyback board top view
and in Figure 1.5 Enplas OTQ-144SG-0.4-003 socket ).
CAUTION
Be careful with the device placement in the socket to avoid damage of the device.

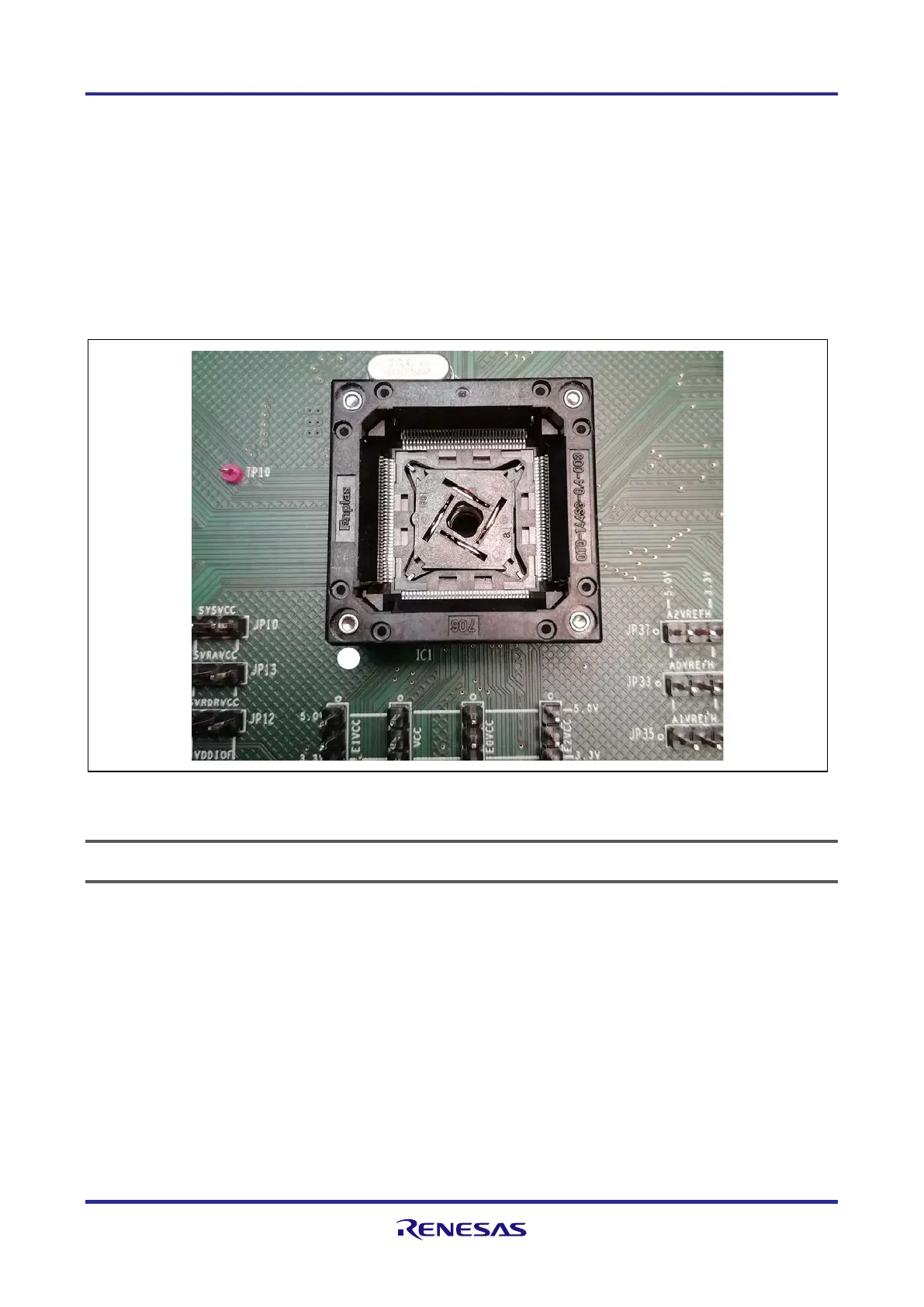

Figure
1.5 Enplas OTQ-144SG-0.4-003 socket
