RH850/U2A 144pin 8. Jumper Configuration Examples
R20UT5089ED0101 Rev.1.01 Page 37 of 56
July 08, 2022
8.2.5 Stand-Alone Operation with All External Power Supplies: Maximum Configuration
This example assumes all external power supplies are connected and used.
• CN8: GND connection
• CN9: 5 V
• CN10: 3.3V
− select desired 3.3 V/5.0 V via jumpers JP1, JP6 to JP8, JP10 to JP13, JP33, JP35 and JP37
• CN11: 1.12 V (IN_1v12)
− JP16[2-3], JP23[2-1]: use IN_1v12 for VDD voltage
Refer to 3.3 Device Core Voltage (VDD) Selection for further details about VDD voltage.

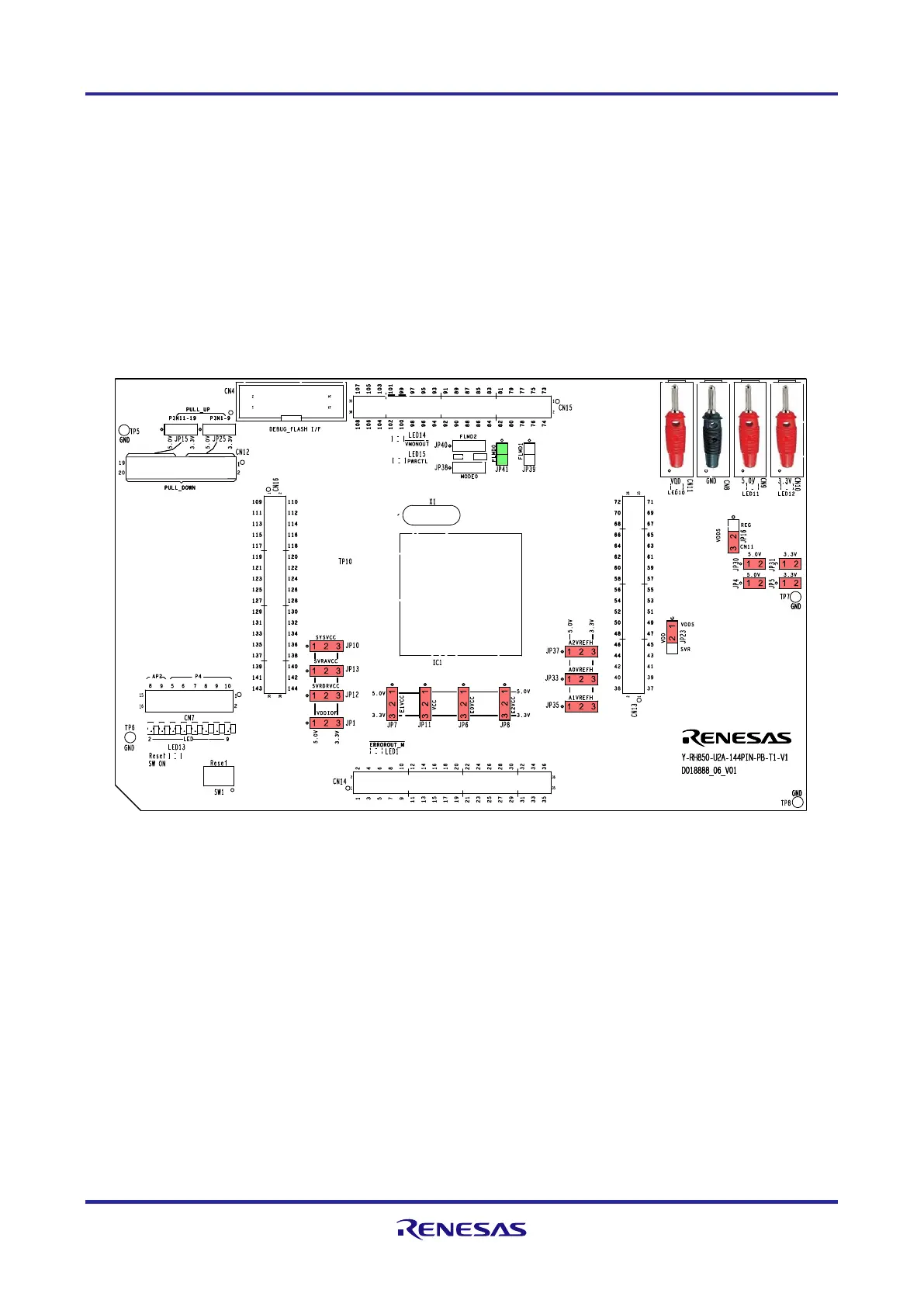

8.3 Stand-alone operation with maximum external power supply
