RL78/G13 CHAPTER 29 ELECTRICAL SPECIFICATIONS
R01UH0146EJ0100 Rev.1.00 1039
Sep 22, 2011
Caution The pins mounted depend on the product. Refer to 2.1.1 20-pin products to 2.1.14 128-pin products,
and 2.1.15 Pins for each product (pins other than port pins).
Supply Voltage Rise Time (T
A = −40 to +85°C, VSS = 0 V)
Parameter Symbol Conditions MIN. TYP. MAX. Unit
Maximum time
to rise to
1.6 V (V
DD (MIN.))
Note
(V
DD: 0 V → 1.6 V)
t
PUP1 When RESET input is not used 3.2 ms
Note Make sure to raise the power supply in a shorter time than this.

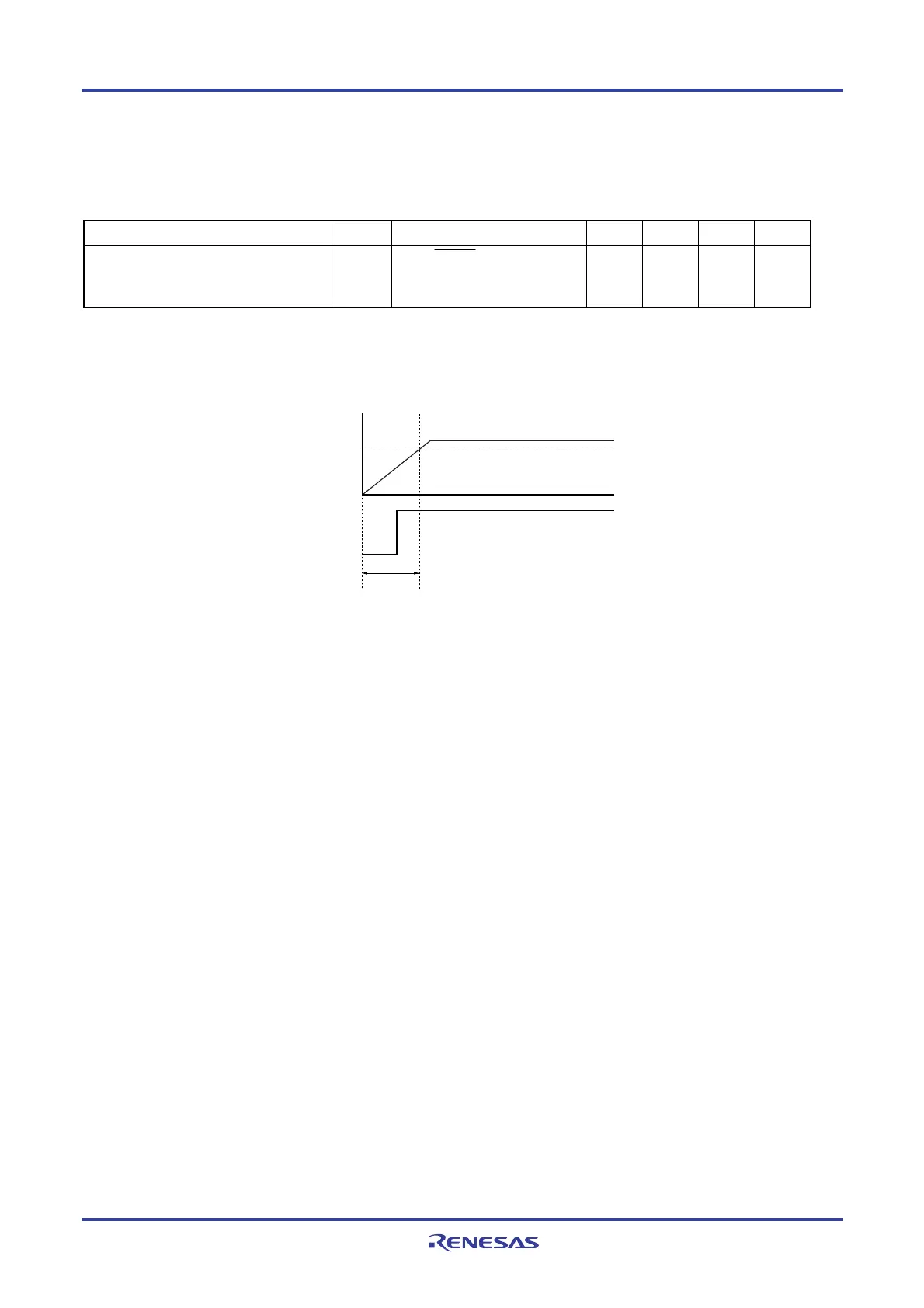

Supply Voltage Rise Time Timing
• When RESET pin input is not used
Supply voltage
(V
DD
)
Time
1.6 V
0 V
POR internal
signal
t
PUP1
