RL78/G13 CHAPTER 6 TIMER ARRAY UNIT
R01UH0146EJ0100 Rev.1.00 368
Sep 22, 2011
(d) Start timing in one-count mode
<1> Operation is enabled (TEmn = 1) by writing 1 to the TSmn bit.
<2> Timer count register mn (TCRmn) holds the initial value until start trigger generation.
<3> Rising edge of the TImn input is detected.
<4> On start trigger detection, the value of timer data register mn (TDRmn) is loaded to the TCRmn register
and count starts.
<5> When the TCRmn register counts down and its count value is 0000H, INTTMmn is generated and the
value of the TCRmn register becomes FFFFH and counting stops
.

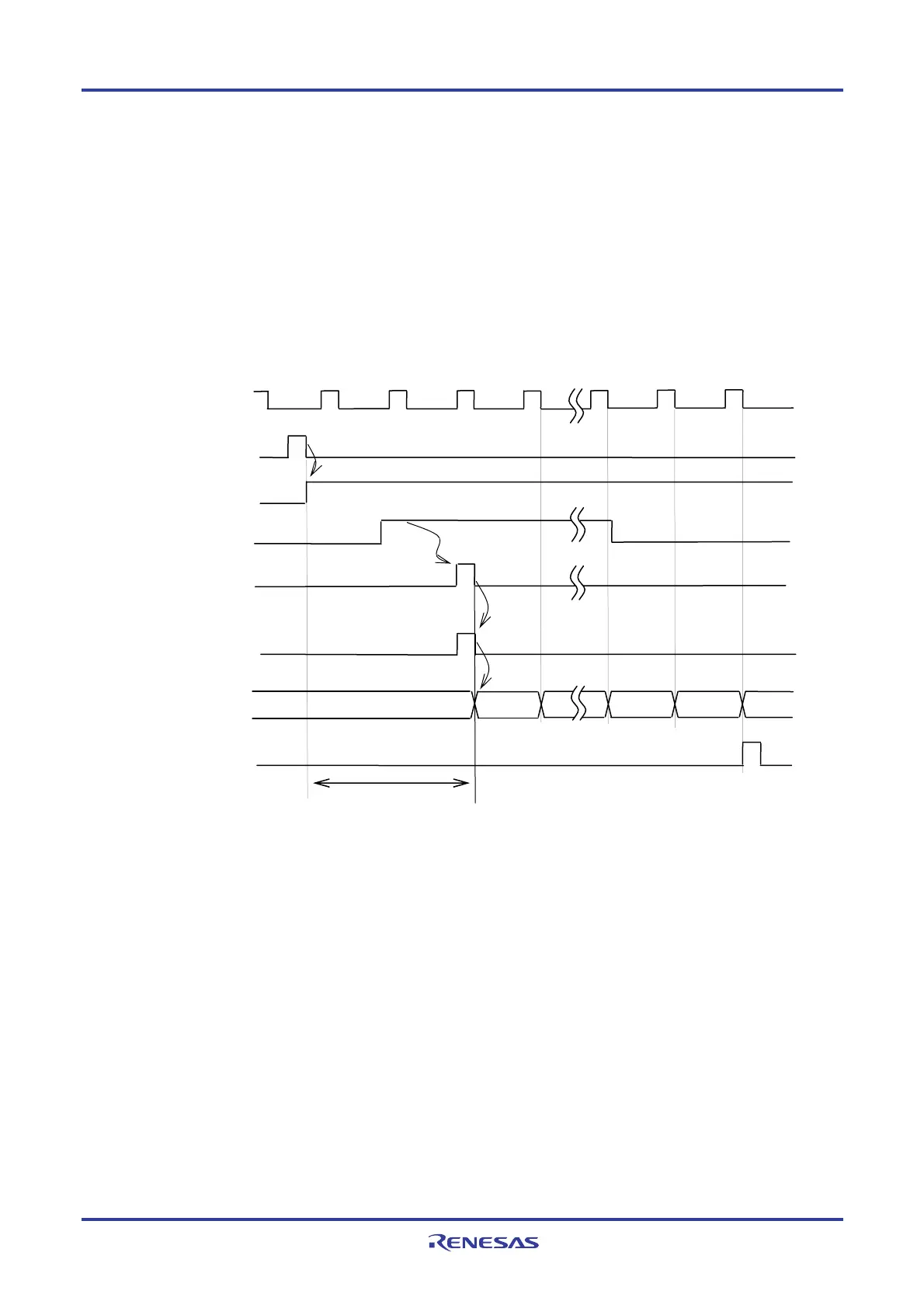

Figure 6-26. Start Timing (In One-count Mode)
Remark The timing is shown in Figure 6-26 indicates while the noise filter is not used. By making the noise filter
on-state, the edge detection becomes 2 f
MCK cycles (it sums up to 3 to 4 cycles) later than the normal
cycle of TImn input. The error per one period occurs be the asynchronous between the period of the
TImn input and that of the count clock (f
MCK).
fMC
(fTCLK)
TSmn(Write)
TEmn
TImn input
<1>
<2>
Rising edge
Edge detection
<4>
TCRmn
Initial value
1
Start trigger
detection signal
<3>
m
0
FFFF
INTTMmn
Start trigger input wait status
<5>
