(e) Start timing in capture & one-count mode (when high-level width is measured)
<1> Operation is enabled (TEmn = 1) by writing 1 to the TSmn bit of timer channel start register m (TSm).
<2> Timer count register mn (TCRmn) holds the initial value until start trigger generation.
<3> Rising edge of the TImn input is detected.
<4> On start trigger detection, the value of 0000H is loaded to the TCRmn register and count starts.
<5> On detection of the falling edge of the TImn input, the value of the TCRmn register is captured to timer
data register mn (TDRmn) and INTTMmn is generated.

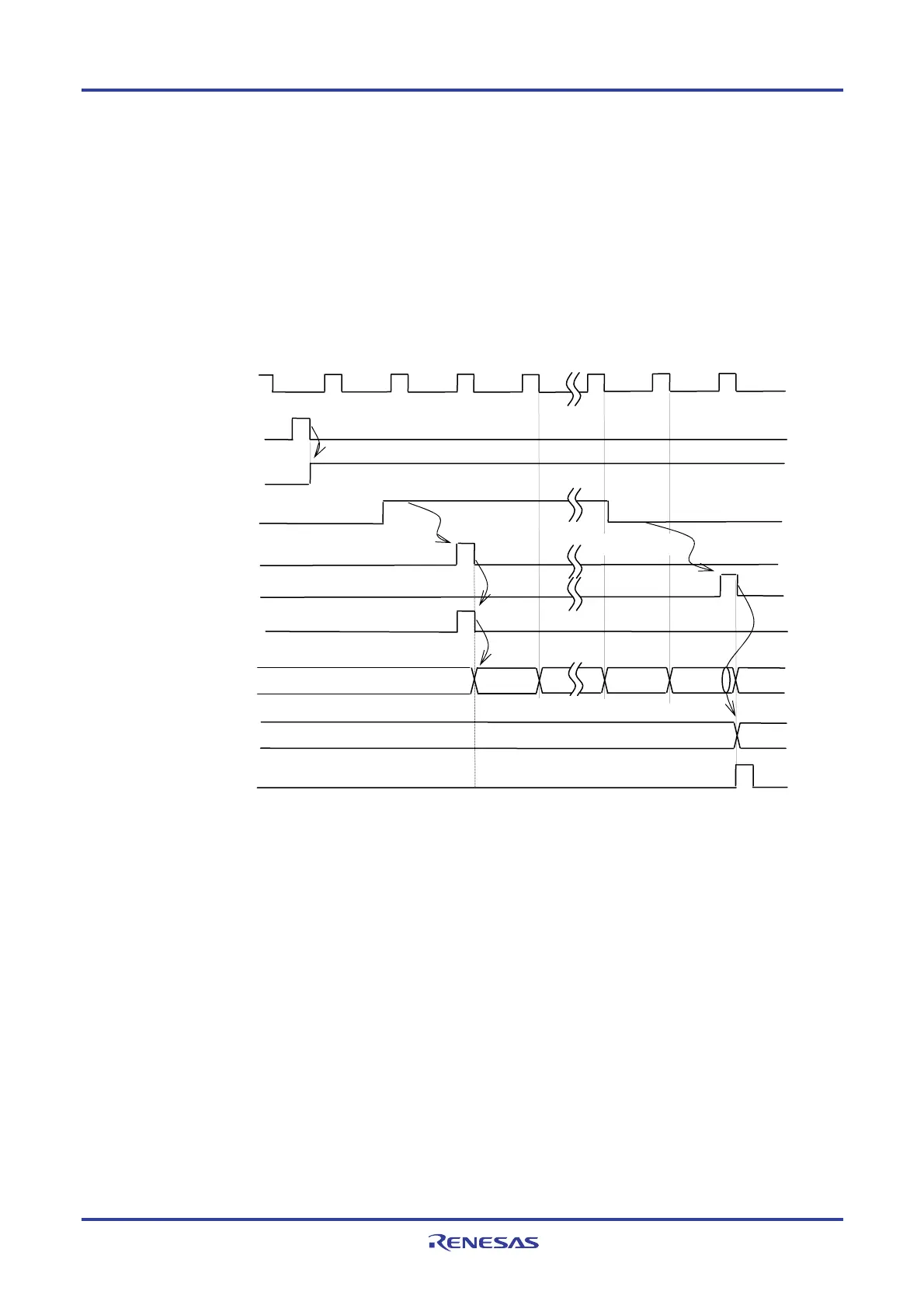

Figure 6-27. Start Timing (In Capture & One-count Mode)
Remark The timing is shown in Figure 6-27 indicates while the noise filter is not used. By making the noise filter
on-state, the edge detection becomes 2 f
MCK cycles (it sums up to 3 to 4 cycles) later than the normal
cycle of TImn input.
fMC
(fTCLK)
TSmn(Write)
TEmn
TImn input
<1>
<2>
Rising edge
Edge detection
<4>
TCRmn
Initial value
m−1
m
TDRmn
Start trigger
detection signal
<3>
Falling edge
0000
m
Edge detection
0000
0000
INTTMmn
<5>
