RL78/G13 CHAPTER 6 TIMER ARRAY UNIT
R01UH0146EJ0100 Rev.1.00 374
Sep 22, 2011
(b) When operation starts with slave channel output mode (TOMmn = 1) setting (PWM output))
When slave channel output mode (TOMmn = 1), the active level is determined by timer output level register m
(TOLm) setting.

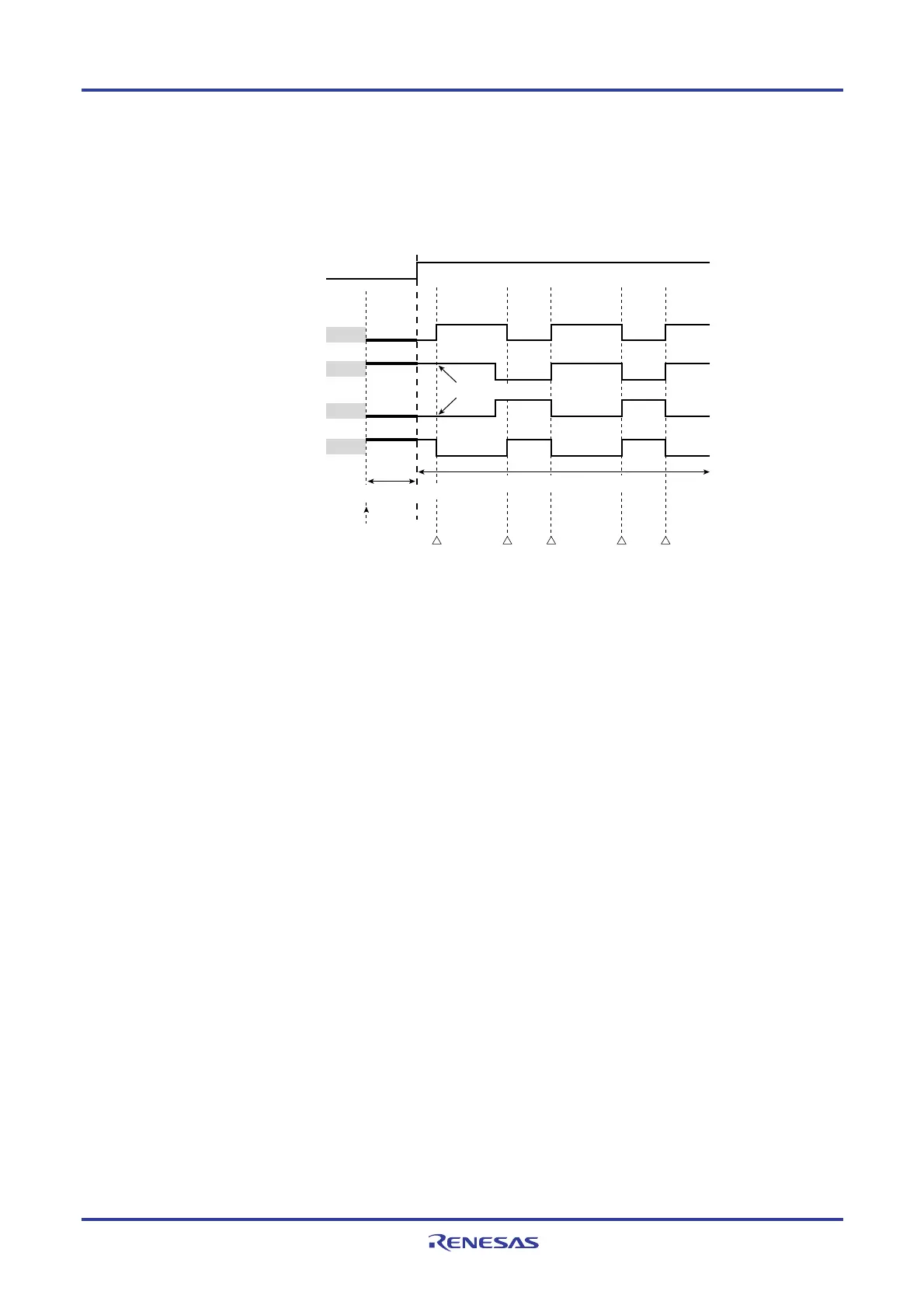

Figure 6-31. TOmn Pin Output Status at PWM Output (TOMmn = 1)
TOEmn
TOmn = 0, TOLmn = 0
(Active high)
TOmn = 1, TOLmn = 0
(Active high)
TOmn = 0, TOLmn = 1
(Active low)
TOmn = 1, TOLmn = 1
(Active low)
Default level, TOLmn setting
Dependent of TOLmn setting
Port output is enabled
TOmn pin transition
Set Reset Set Reset Set
Hi-Z
Hi-Z
Hi-Z
Hi-Z
Dependent on TOmn setting
No change
Remarks 1. Set: The output signal of the TOmn pin changes from inactive level to active level.
Reset: The output signal of the TOmn pin changes from active level to inactive level.
2. m: Unit number (m = 0, 1), n: Channel number (n = 0 to 7)
