RL78/G13 CHAPTER 12 SERIAL ARRAY UNIT
R01UH0146EJ0100 Rev.1.00 551
Sep 22, 2011

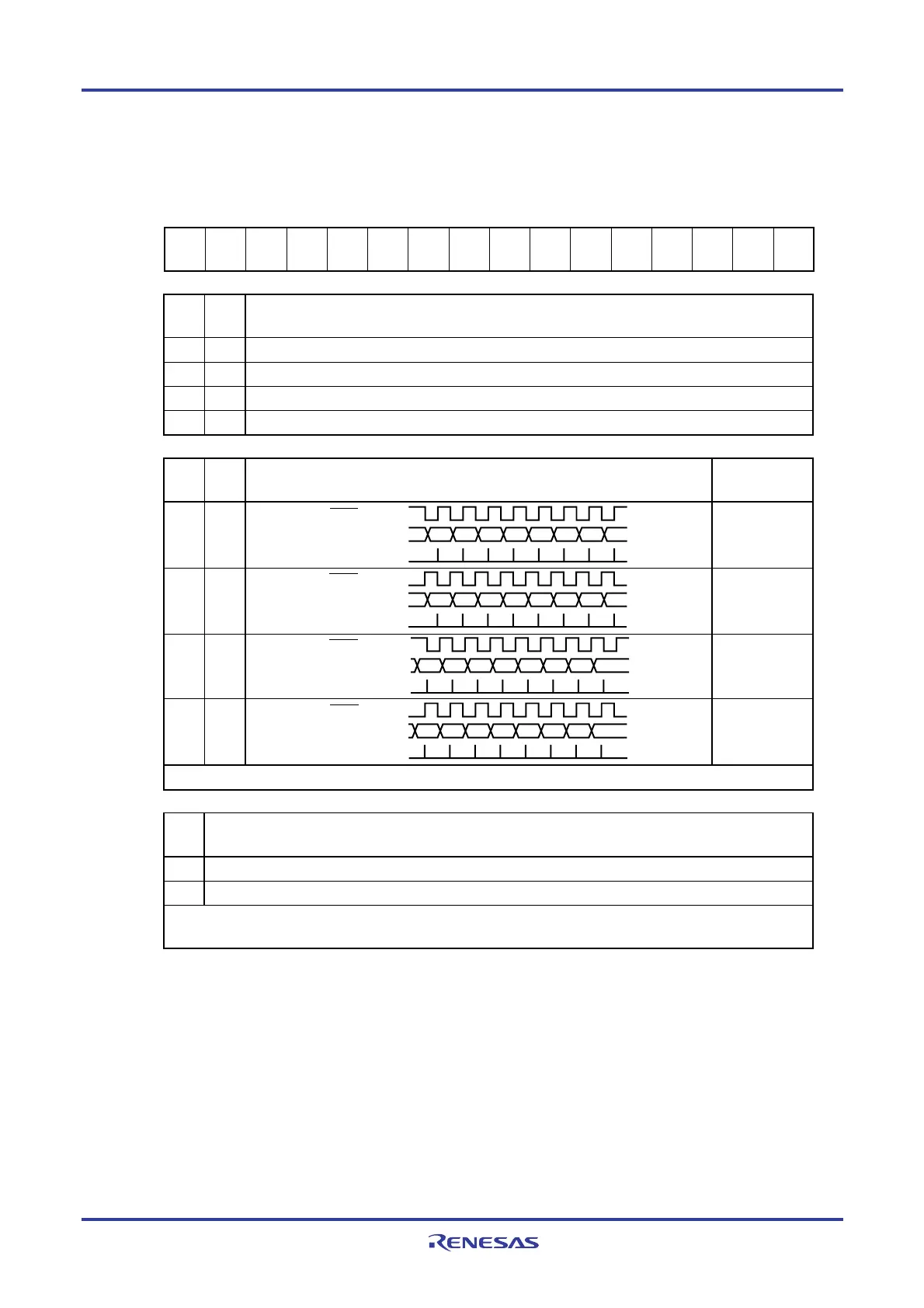

Figure 12-8. Format of Serial Communication Operation Setting Register mn (SCRmn) (1/2)
Address: F0118H, F0119H (SCR00) to F011EH, F011FH (SCR03), After reset: 0087H R/W
F0158H, F0159H (SCR10) to F015EH, F015FH (SCR13)
Symbol 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
SCRmn
TXE
mn
RXE
mn
DAP
mn
CKP
mn
0
EOC
mn
PTC
mn1
PTC
mn0
DIR
mn
0
SLCm
n1
Note 1
SLC
mn0
0 1
DLSm
n1
Note 2
DLS
mn0
TXE
mn
RXE
mn
Setting of operation mode of channel n
0 0 Disable communication.
0 1 Reception only
1 0 Transmission only
1 1 Transmission/reception
DAP
mn
CKP
mn
Selection of data and clock phase in CSI mode Type
0 0
D7 D6 D5 D4 D3 D2 D1 D0
SCKp
SOp
SI
p
input timing
1
0 1
D7 D6 D5 D4 D3 D2 D1 D0
SCKp
SOp
SI
p input timing
2
1 0
D7 D6 D5 D4 D3 D2 D1 D0
SCKp
SOp
SI
p
input timing
3
1 1
D7 D6 D5 D4 D3 D2 D1 D0
SCKp
SOp
SI
p
input timing
4
Be sure to set DAPmn, CKPmn = 0, 0 in the UART mode and simplified I
2
C mode.
EOC
mn
Selection of masking of error interrupt signal (INTSREx (x = 0 to 3))
0 Masks error interrupt INTSREx (INTSRx is not masked).
1 Enables generation of error interrupt INTSREx (INTSRx is masked if an error occurs).
Set EOCmn = 0 in the CSI mode, simplified I
2
C mode, and during UART transmission
Note 3
.
Set EOCmn = 1 during UART reception.
Notes 1. The SCR00, SCR02, SCR10, and SCR12 registers only.
2. The SCR00 and SCR01 registers and SCR10 and SCR11 registers for 80, 100 and 128-pins products
only. Others are fixed to 1.
3. When using CSI01 not with EOC01 = 0, error interrupt INTSRE0 may be generated.
Caution Be sure to clear bits 3, 6, and 11 to “0”. (Also clear bit 5 of the SCR01, SCR03, SCR11, or SCR13
register to 0, as well as bit 1 of the SCR02, SCR03, SCR12, SCR13 registers, and SCR10, or
SCR11 registers for 20 to 64-pin products.). Be sure to set bit 2 to “1”.
Remark m: Unit number (m = 0, 1), n: Channel number (n = 0 to 3), p: CSI number (p = 00, 01, 10, 11, 20, 21, 30,
31)
<R>
<R>
