RL78/G13 CHAPTER 19 RESET FUNCTION
R01UH0146EJ0100 Rev.1.00 871
Sep 22, 2011

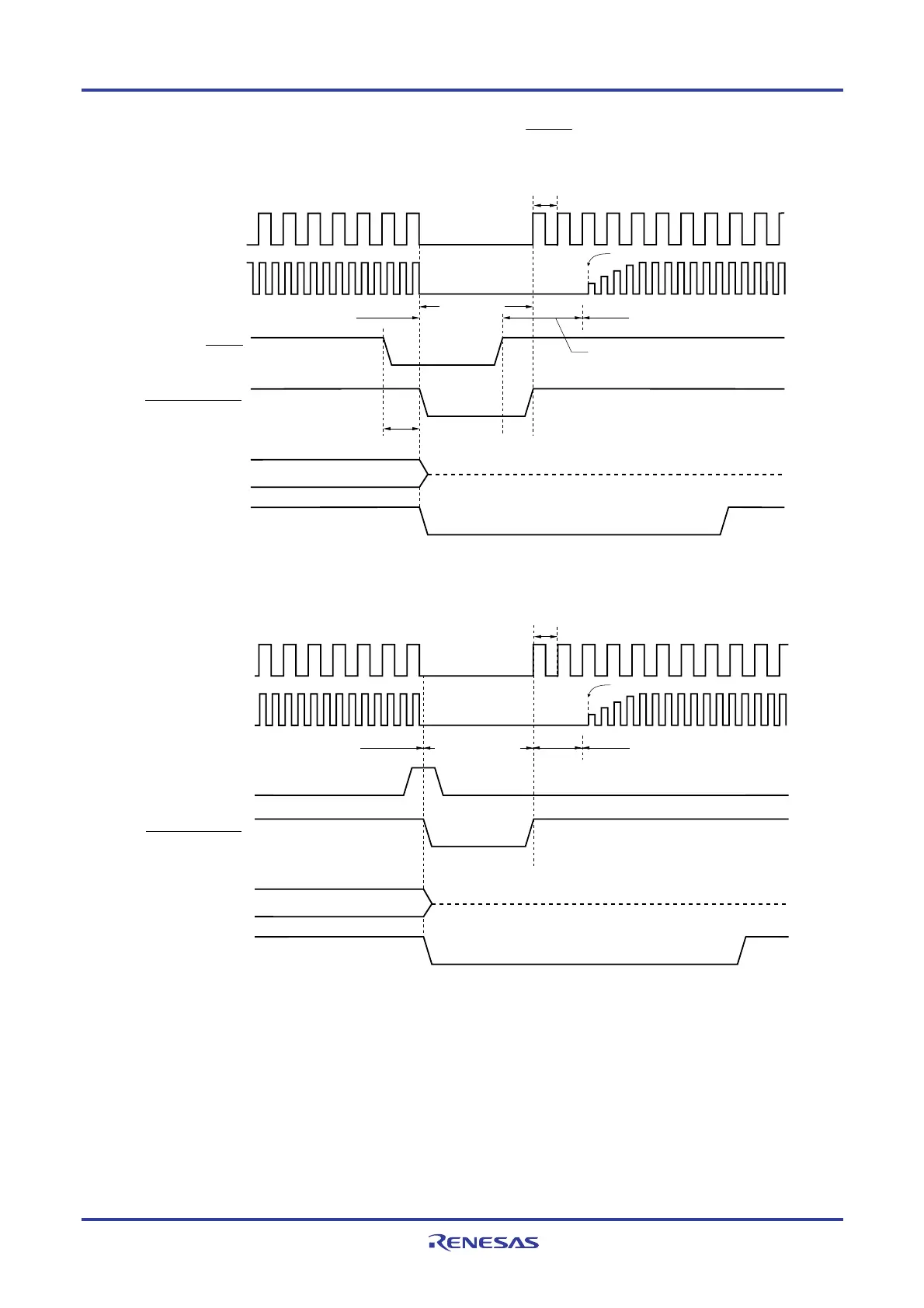

Figure 19-2. Timing of Reset by RESET Input
Delay
Hi-Z
Normal operationCPU status
Normal operation
(high-speed on-chip oscillator clock)
RESET
Internal reset signal
Port pin
(except P130)
Port pin
(P130)
Note
High-speed system clock
(when X1 oscillation is selected)
High-speed on-chip
oscillator clock
Starting X1 oscillation is specified by software.
Reset processing : 387 to 674 μs (When LVD is used)
155 to 360 μs (When LVD off)
Wait for oscillation
accuracy stabilization
Reset period
Figure 19-3. Timing of Reset Due to Execution of Illegal Instruction or Watchdog Timer Overflow
Normal operation
Reset period
(oscillation stop)
CPU status
Execution of Illegal
Instruction/
Watchdog timer
overflow
Internal reset signal
Hi-Z
Note
High-speed system clock
(when X1 oscillation is selected)
High-speed on-chip
oscillator clock
Starting X1 oscillation is specified by software.
Normal operation
(high-speed on-chip oscillator clock)
Wait for oscillation
accuracy stabilization
Reset processing
Port pin
(except P130)
Port pin
(P130)
41 to 69 μs
Note When P130 is set to high-level output before reset is effected, the output signal of P130 can be dummy-output
as a reset signal to an external device, because P130 outputs a low level when reset is effected. To release a
reset signal to an external device, set P130 to high-level output by software.
Caution A watchdog timer internal reset resets the watchdog timer.
