ATOM linear encoder system

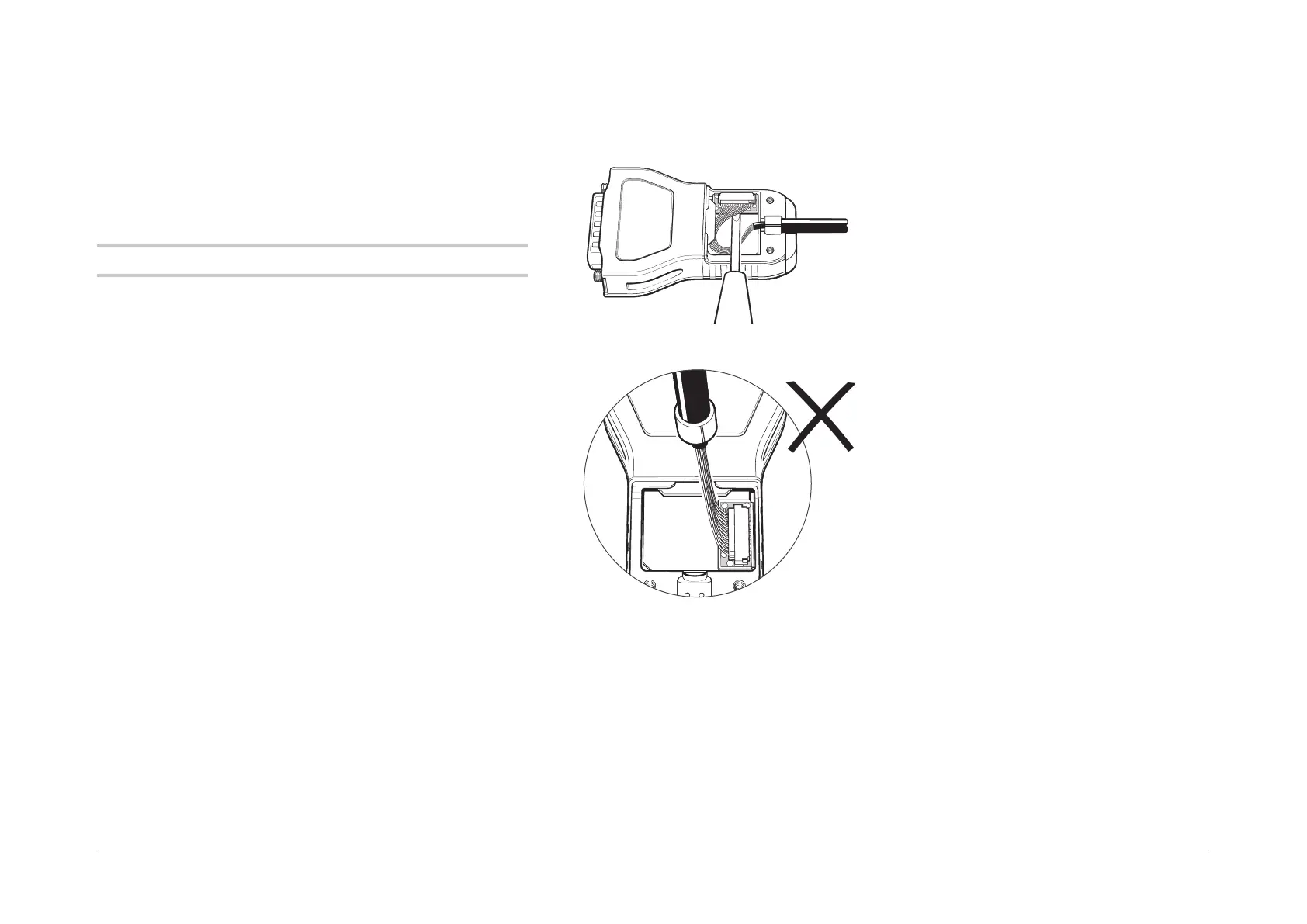

1. Disconnect power.
2. Remove the cover plate on the interface (two M2.5 hex head screws).
3. Gently lever the connector PCB (on the end of the cable) out of the socket.
CAUTION: Do not pull the cable to remove theconnector.
4. Place the connector in an anti-static bag.
5. Ret the cover plate.
Disconnecting the readhead
