Renishaw ATOM User Manual

43
www.renishaw.com

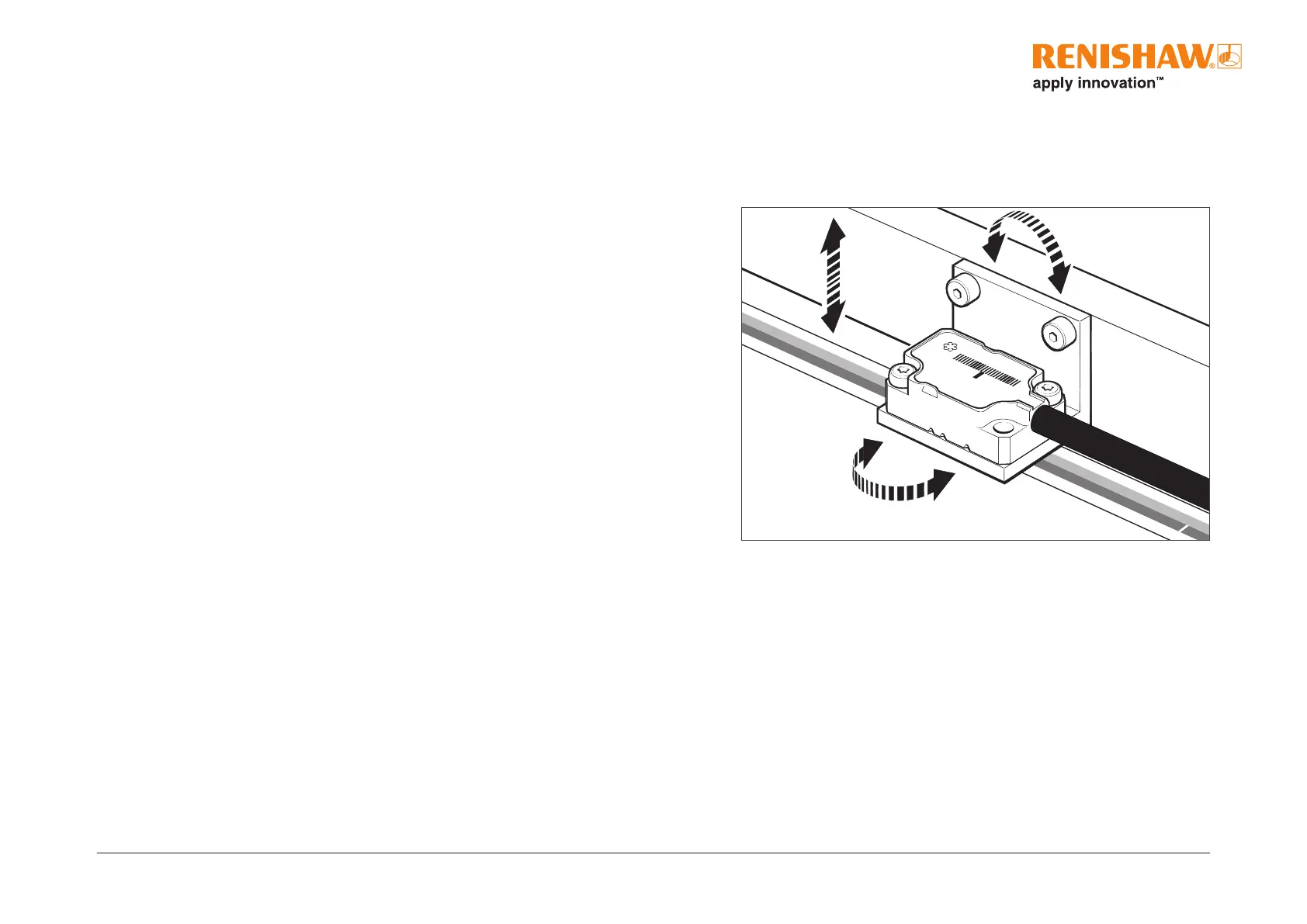

Rideheight
Pitch
Ya w
For more information on system tolerances refer to the installation drawings at
www.renishaw.com/atomdownloads
1. Mount the readhead onto the bracket.
2. Loosely mount the readhead bracket onto the axis.
3. Using the Renishaw USB set-up tool kit or an oscilloscope adjust the yaw, pitch and
rideheight of the readhead to maximise the signal strength.
4. Tighten the bracket and readhead xing screws.
5. Connect the system up. See pages 25 to 36 for relevant system connection.
6. Check the readhead set-up LED is green along the full axis of travel.
• Applications where the readhead mounting bracket allows full adjustment of the readhead and the
Renishaw USB set-up tool kit and software or an oscilloscope can be used to monitor the output signals.
Signal amplitude adjustment
Suitable for:
Required parts:
• ‘L’ mount bracket (A-9402-0037) or customer designed bracket
1
• 2 × bracket mounting screws
• 2 × M2 × 6 screws
• ATOM readhead
• Oscilloscope or Renishaw USB set-up tool kit and software
1
For more information on bracket design and the Renishaw USB set-up tool kit, contact your local Renishaw representative.
