Renishaw RTS User Manual

2.9
RTS basics

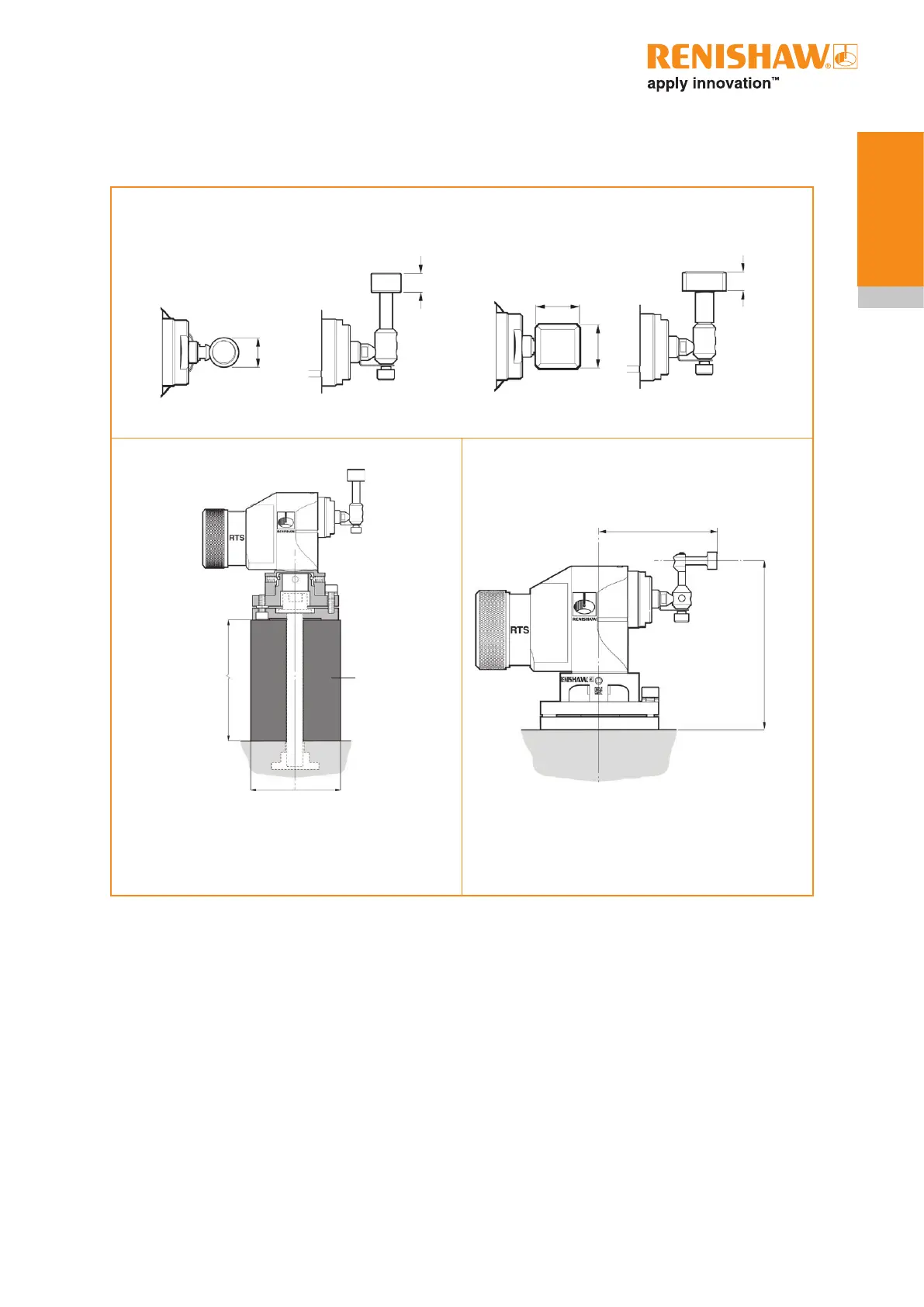

RTS dimensions (continued)
Ø65 (2.56)
Cranked horizontal stylus adaptor kit
Disc and square stylus
70 (2.76)
95.7 (3.77)
76.5 (30.12) shown
Typical bolt length 110 (4.3)
or
125.5 (4.94)
Typical bolt length 150 (5.9)
Raising block
Raising block
19.05
(0.75)
8
(0.31)
8
(0.31)
19.05
(0.75)
Disc stylus
Ø12.7 mm × 8 mm (Ø0.5 in × 0.31 in)
Tungsten carbide 75 Rockwell C
Square stylus
19.05 mm × 19.05 mm (0.75 in × 0.75 in)
Ceramic 75 Rockwell C
Ø12.7
(Ø0.5)
Dimensions given in mm (in)
