Renishaw RTS User Manual

3.7
System installation
1
2.5 mm A/F
0.7Nm – 0.9Nm
(0.52lbf.ft – 0.66lbf.ft)
× 2
Probe module
1

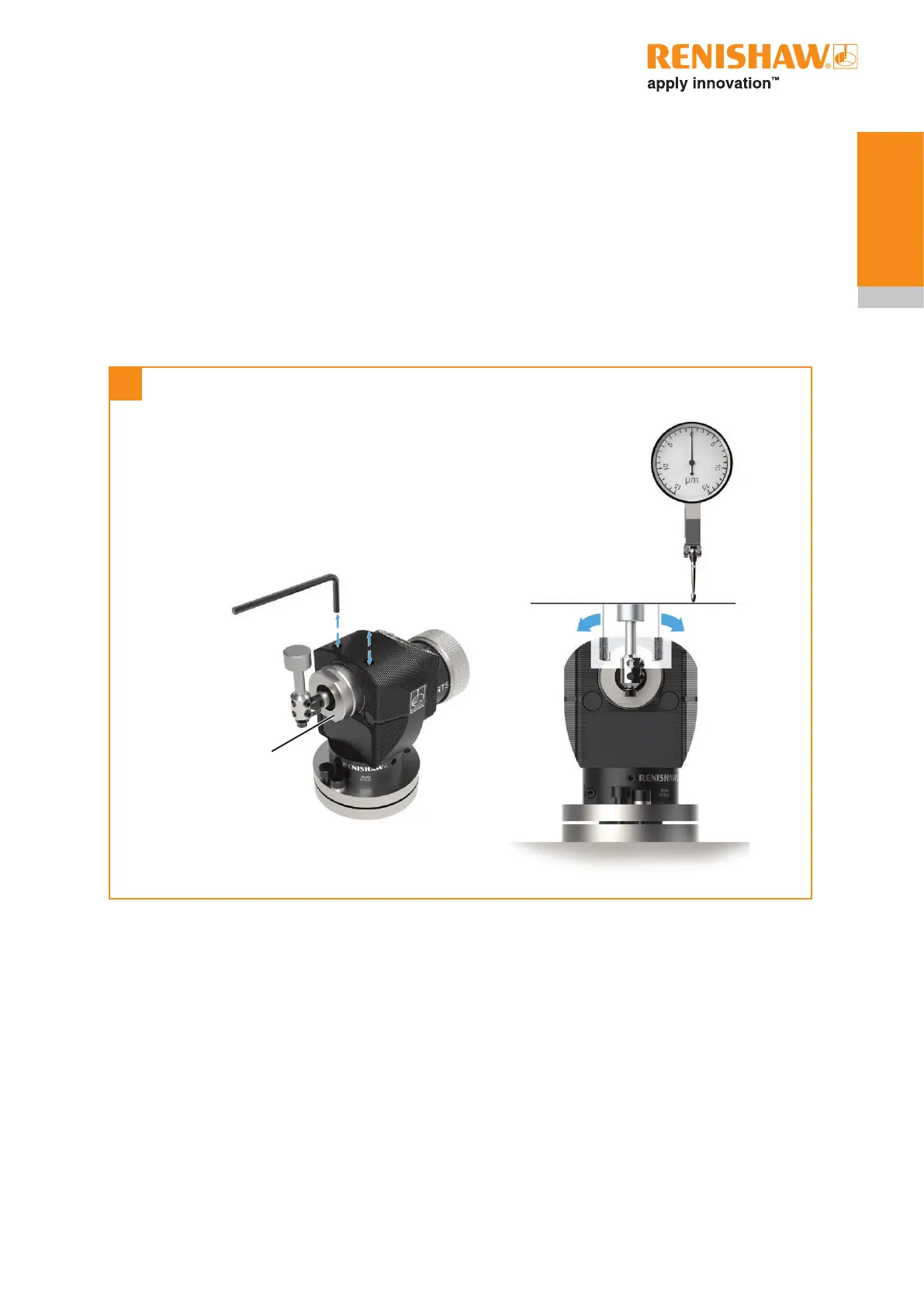

Stylus level setting
The top surface of the stylus must be set level, front to back and side to side.
Side-to-side level adjustment
Side-to-side level adjustment is obtained by alternately adjusting grub screws 1, which causes the
probe module to rotate and changes the stylus level setting.
When a level stylus surface is obtained, tighten screws 1.
± 2.5 µm
