Renishaw RTS User Manual

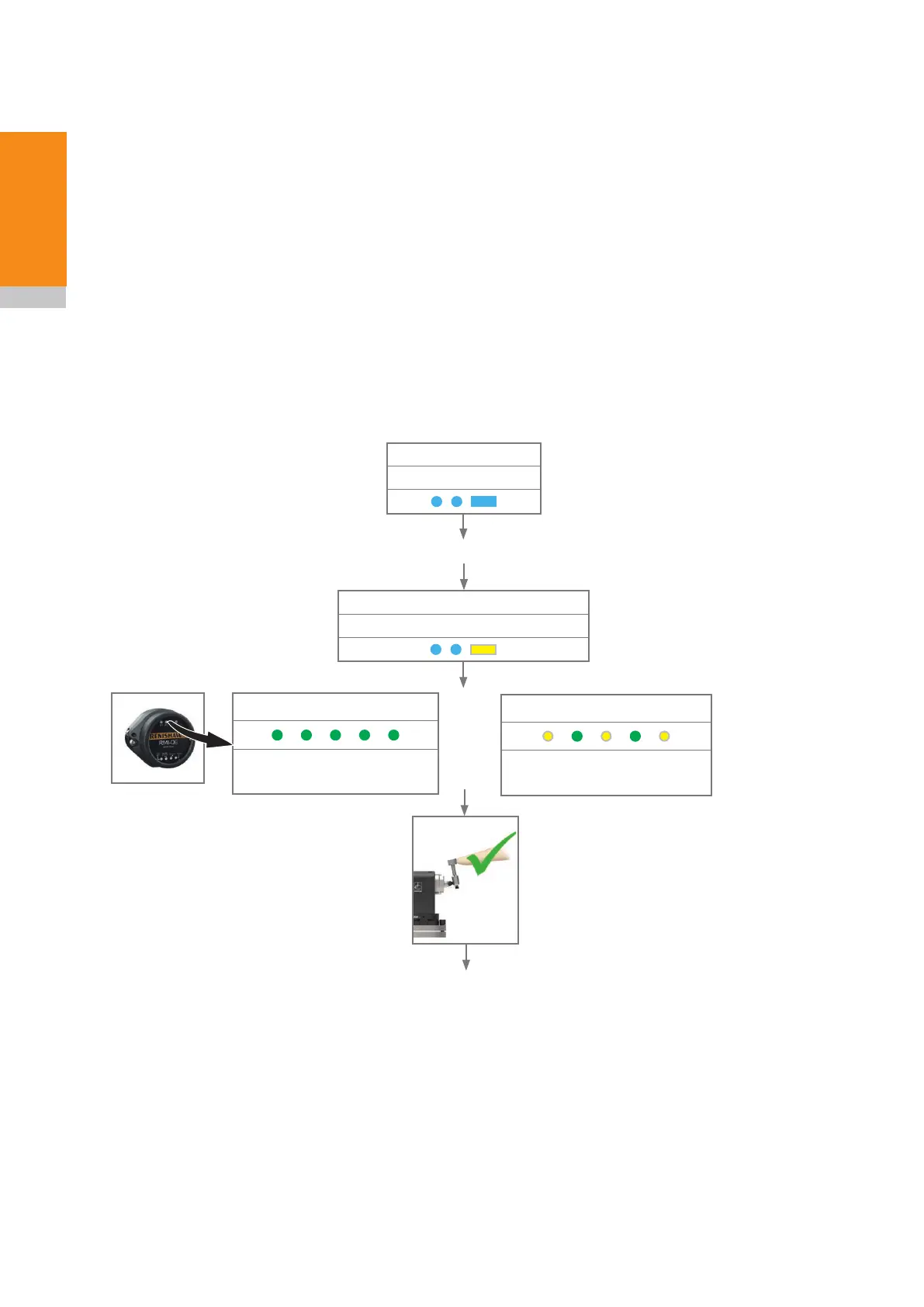

SYSTEM STATUS LED
RMI-QE in “Partnering mode”
with empty probe location
Partnering mode
Off
Switch on the RMI-QE
SYSTEM STATUS LED
RMI-QE in “Partnering mode”
with full probe location
or
 
RMI-QE
Partnering mode
Off (RMI-QE found)
4.6
Probe configuration
RTS – RMI-QE partnership
System set-up is achieved by using Trigger Logic™ and powering on the RMI-QE. Alternatively,
partnering to an RMI-QE can be achieved by using ReniKey; a Renishaw machine macro cycle which
does not require the RMI-QE to be power cycled.
Partnering is required during initial system set-up. Further partnering will be required if either the RTS
or RMI-QE is changed.
Partnering will not be lost by reconfiguring the probe settings or changing the batteries. Partnering can
take place anywhere within the operating envelope.
An RTS that is partnered with the RMI-QE but then used with another system will need to be
repartnered before being used again with the RMI-QE.
See page 4.3 “Probe partnering function” for further information on how to reach “Partnering
mode”.
Deflect the stylus to select “Partnering
mode on”. Ensure this is done within 60
seconds of the RMI-QE system status
LED flashing green.
