Renishaw RTS User Manual

3.11
System installation
5

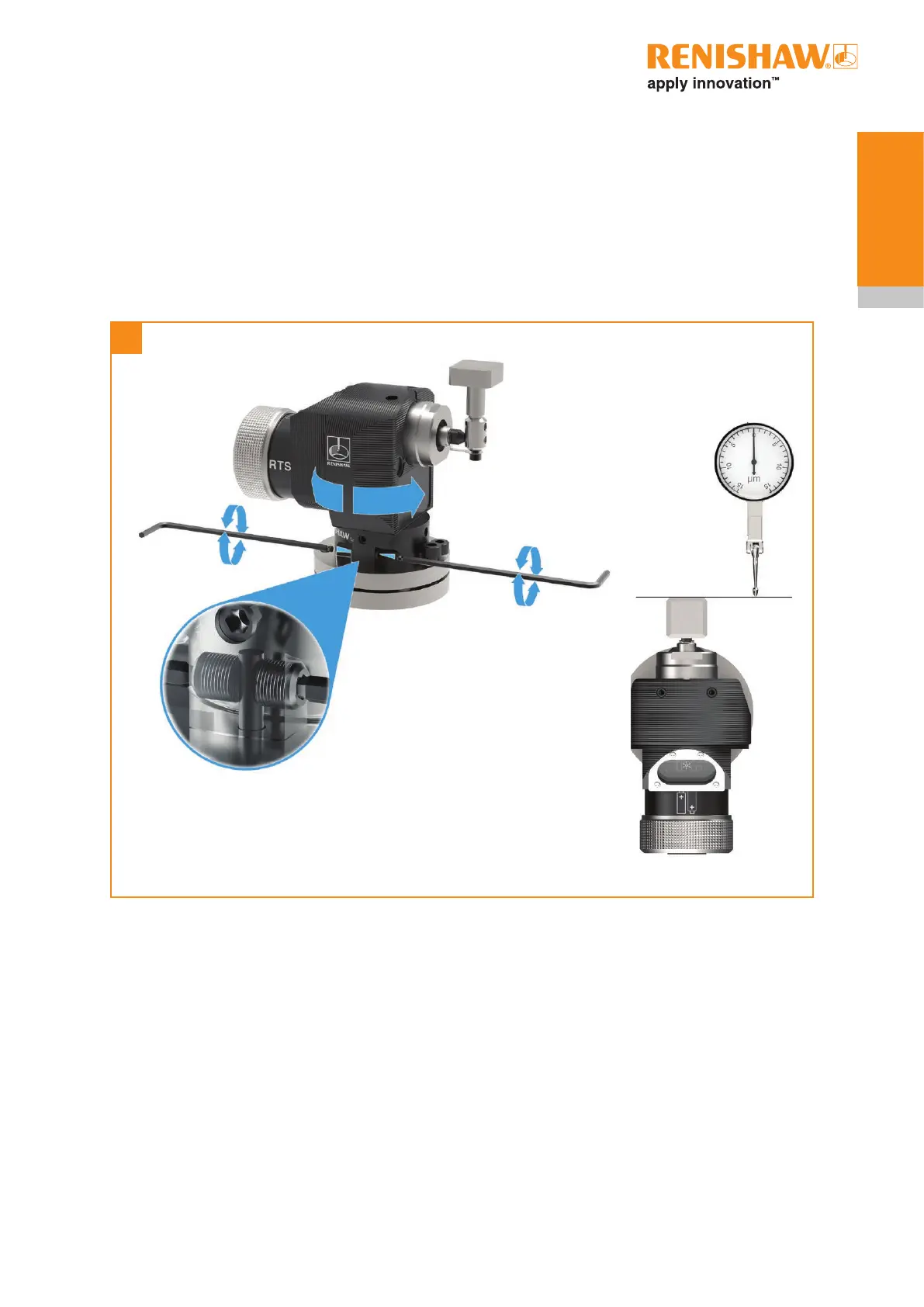

Square stylus setting only (continued)
Fine rotational adjustment (continued)
Opposing grub screws 3 are tightened against a locating pin fixed to the base. By alternately
slackening and re-tightening these grub screws, fine rotational adjustment of the stylus is achieved.
Then tighten the grub screws.
2,5 mm A/F
0.7Nm – 0.9Nm
(0.52lbf.ft – 0.66 lbf.ft)
× 2
3
3
± 5 µm
