Renogy ROVER BOOST User Manual

12
48V 100Ah Wiring
NOTE
The M3 screws have a recommended torque of 0.5~0.8 N-m / 0.4~0.6 lb. ft.
The M6 screws have a recommended toque 4.1~5.0 N-m / 3~3.7 lb. ft.
36V 100Ah Wiring
Assuming each battery is 12V 100Ah battery bank, you will combine 3 x 12V batteries in series
to achieve a 36V 100Ah battery bank. In series connections, the 12V voltages add up to 36V,
while the 100Ah Rating remains the same.
Assuming each battery is 12V 100Ah battery bank, you will combine 4 x 12V batteries in series
to achieve a 48V 100Ah battery bank. In series connections, the 12V voltages add up to 48V,
while the 100Ah Rating remains the same.

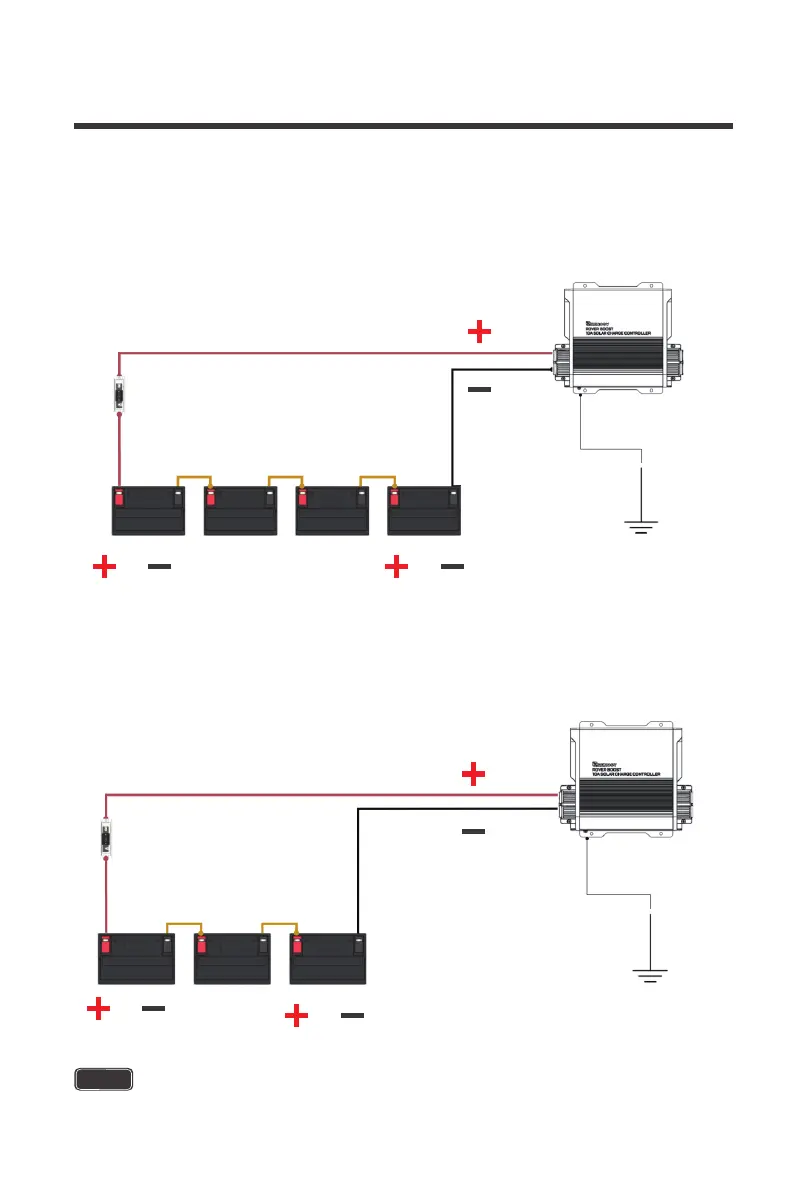

10A Rover Boost
12-10AWG Tray Cable
15A-20A
ANL Fuse Set+Cable
48V Battery System
Battery Interconnects
Ground
10A Rover Boost
12-10AWG Tray Cable
15A-20A
ANL Fuse Set+Cable
36V Battery System
Battery Interconnects
Ground
