Mounting
The TouchDisplay is preferably installed in a mounting box.
The mounting box needs to have a sufficient depth (min. 47mm).
Make sure that the mounting box has two screw holes enabling the fixation of the TouchDisplay.
The mounting box has to be placed vertically with the screw holes placed at the top and
bottom.

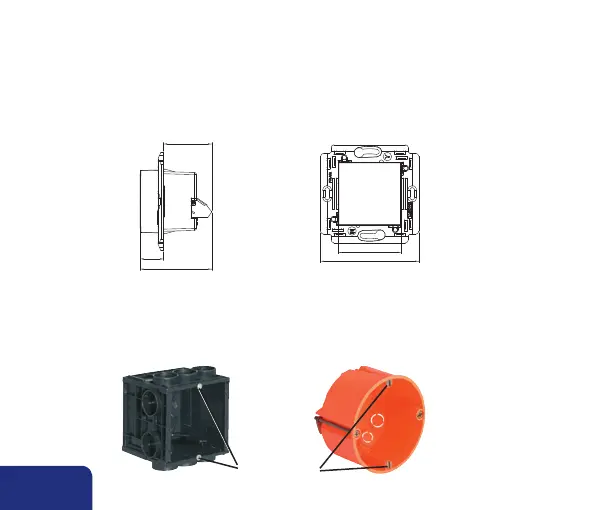

Some examples of mounting boxes:
16,7
34
50,7
44,5
69,2
Screw holes
Side view Front view
