EN 115
– After a successful linking procedure the TouchDisplay switches
automatically to the main control menu. The TouchDisplay is now
ready for use.
– The following screen appears if the link is not established:
Repeat the procedure in case of a “failed” notification.
Remark:
The unit and TouchDisplay stay linked even after a power failure.

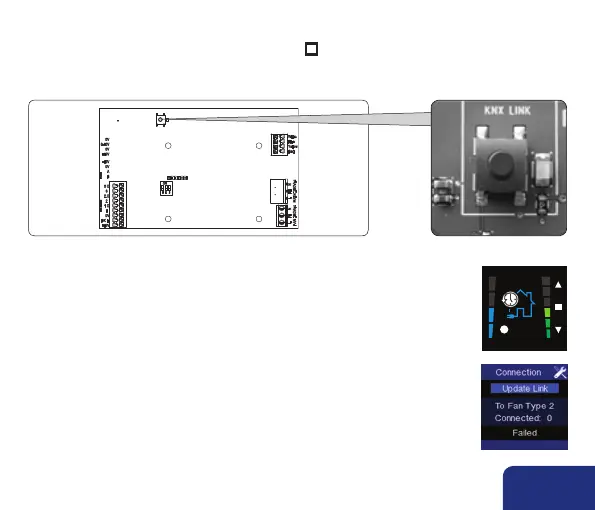

Briefly push on the button KNX / LINK on the PCB of the Cube. The green LED above the button
wil now start to blink. Now continue by pressing n on the TouchDisplay.
An extra line appears at the bottom of the display: “Linking”.
11:38
1
XVKS Sensoren
Fan power 230V~
Main 230V~
0-10V Fan control
