Prusa i3 – Build Manual
Next you can increase the belt tension by slotting the small belt tensioner onto the belt close to where the belt
leaves the teeth of the x-carriage, you may want to wait until the belt has been run in a bit before adding this.
(see Fig 5.2f)

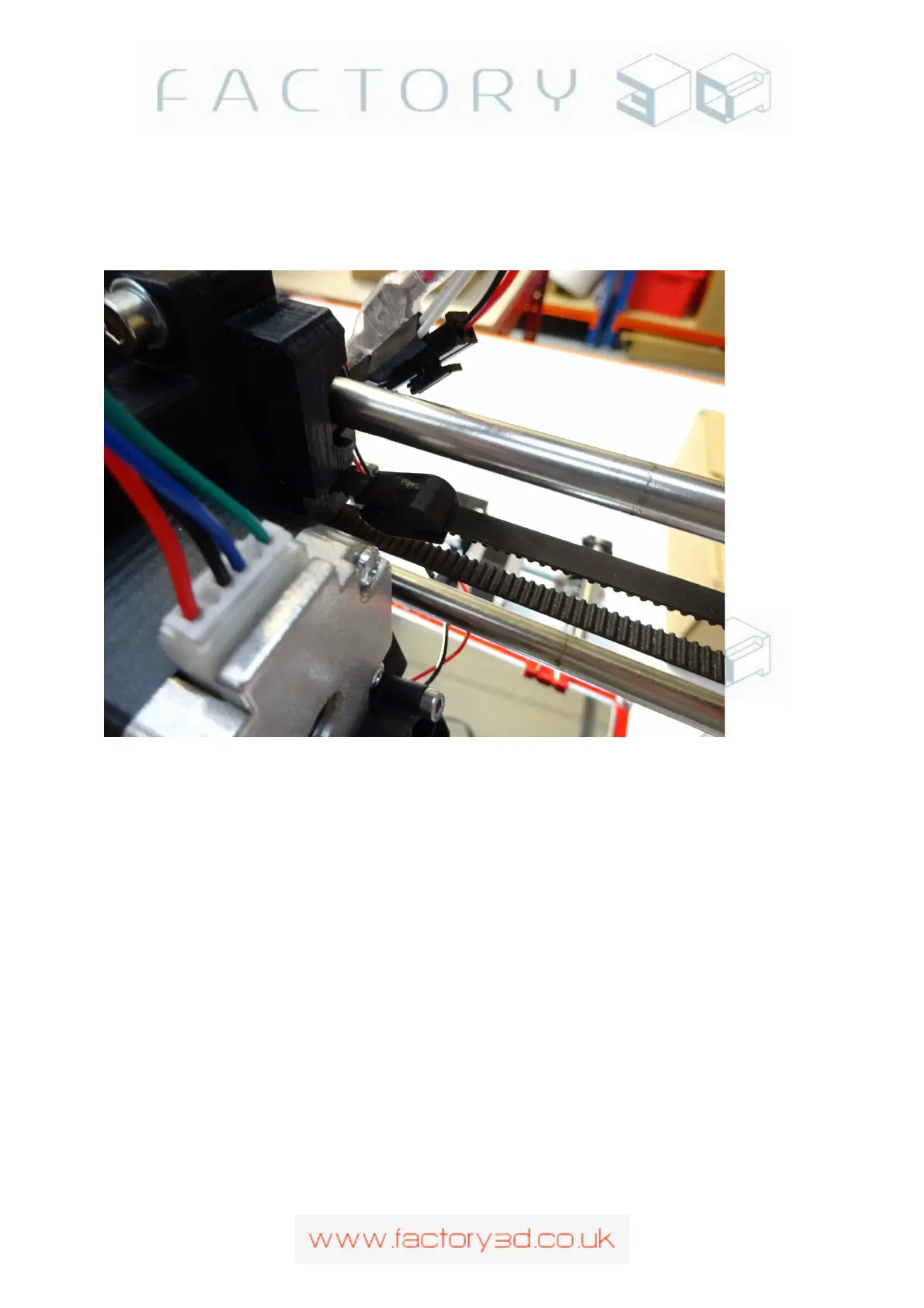

Fig 5.2f:
Finally plug the X-Axis motor into the lower right hand 4 pin motor header on the Ramps and the X-Endstop
cable into the lower two pins of the bank of endstop pins (Fig 4.2b from the previous section).
