Prusa i3 – Build Manual
Now bolt the left and right MK8 mounting brackets together using the M3 35mm bolts and M3 nuts (slotted
into the nut-traps on the right had bracket).
Then slot the MK8 into the bracket, fan to the left, motor to the right and hot-end power / thermistor wires
running to the rear. Carefully note the alignment of the MK8 with the mounting bracket and make sure the fan
wires are tucked into the notch at the top of the fan so that they aren't snagged by the mounting bracket, and can
protrude out to the left hand side of the fan. See Fig 6.1 b (shown upside down).

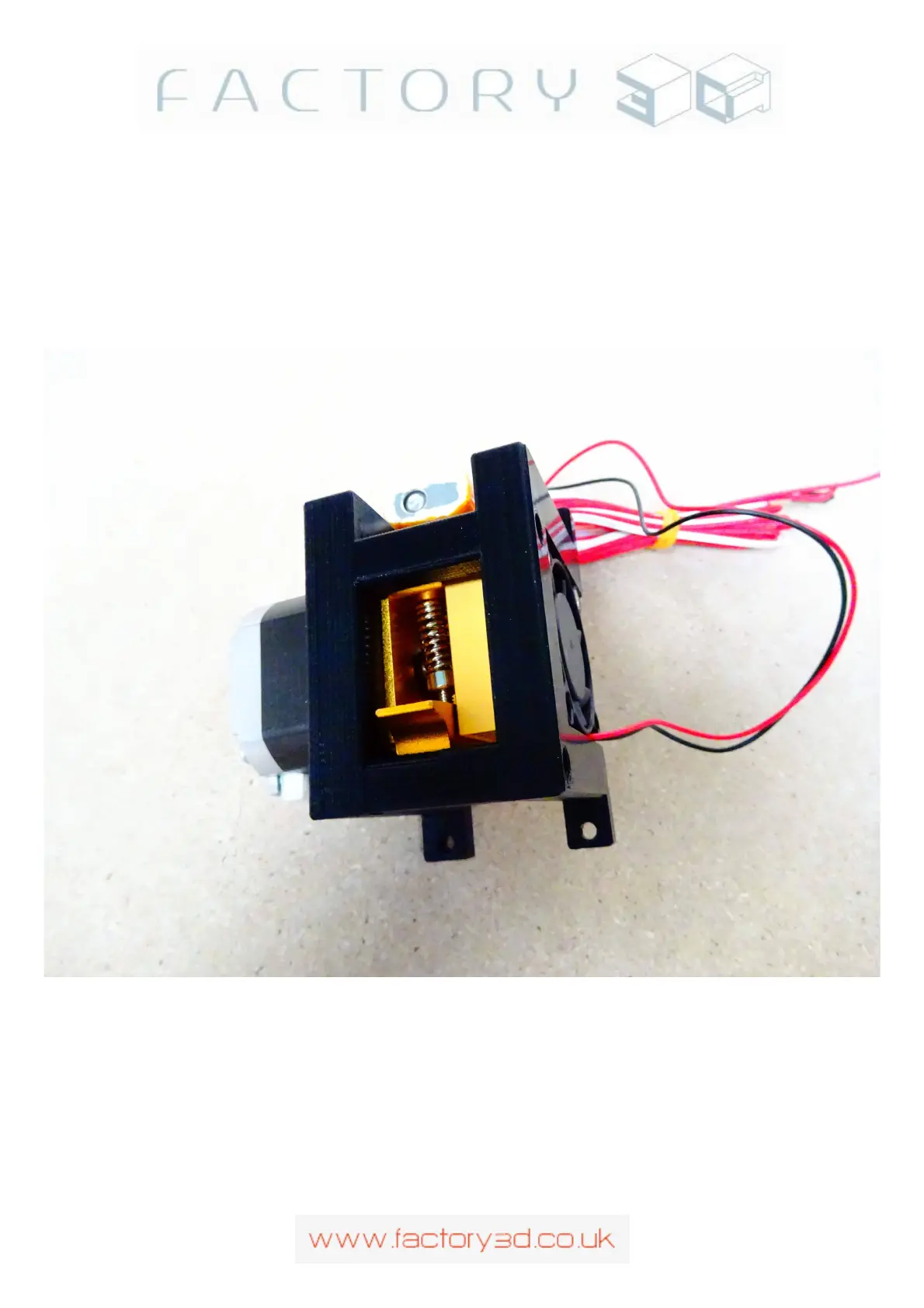

Fig 6.1b:
Version: 1.3 Page: 34
