Prusa i3 – Build Manual

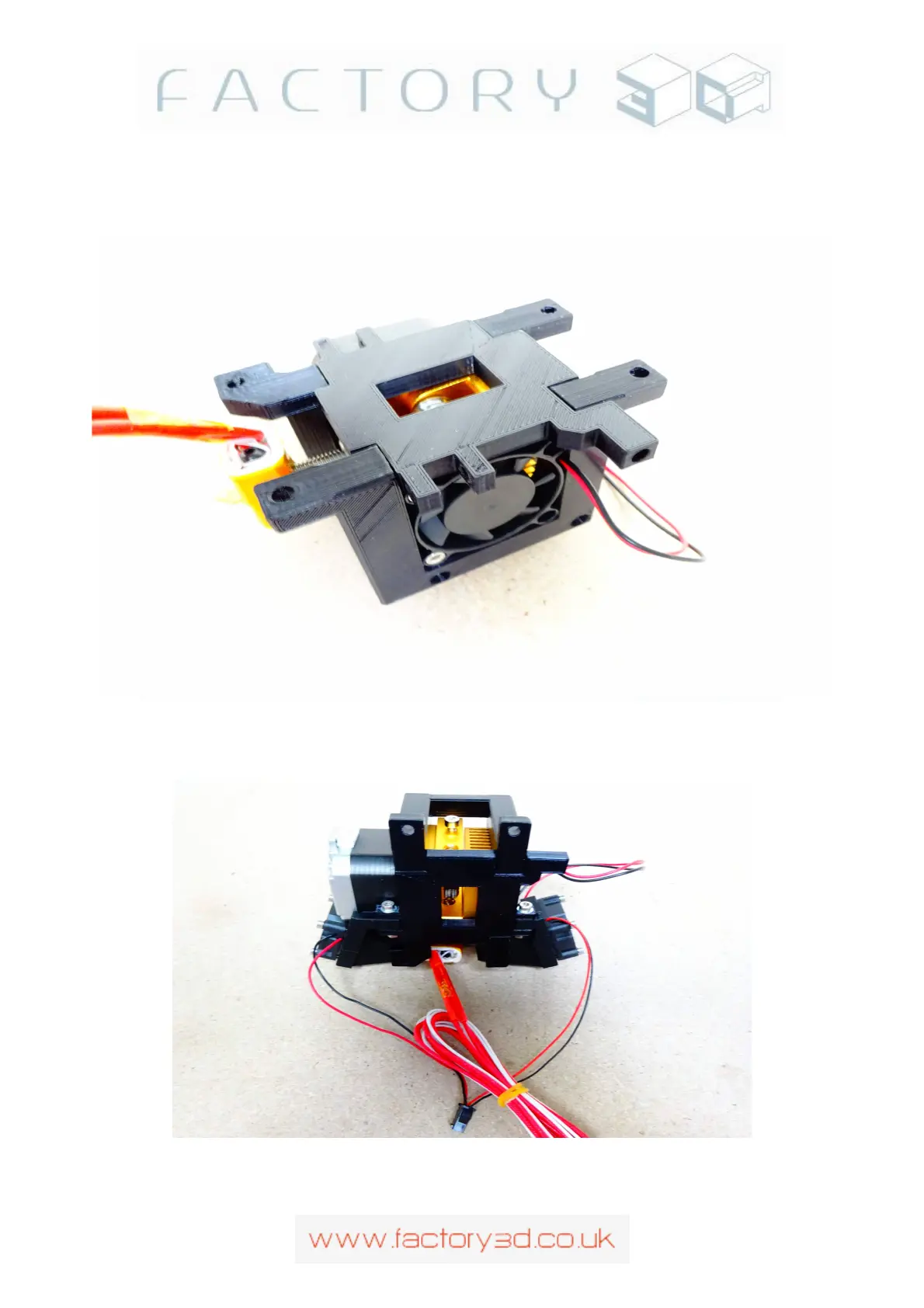

Next slot the rear plate into place, endstop screwmount facing left (fan side) See Fig 6.1 c.
Fig 6.1c:
Next attach the build plate fans to the two fan brackets, the fans should be focused just underneath the brass
hot-end nozzle. The mounting bolts shouldn't be overtightened See Fig 6.1d
Fig 6.1d:
