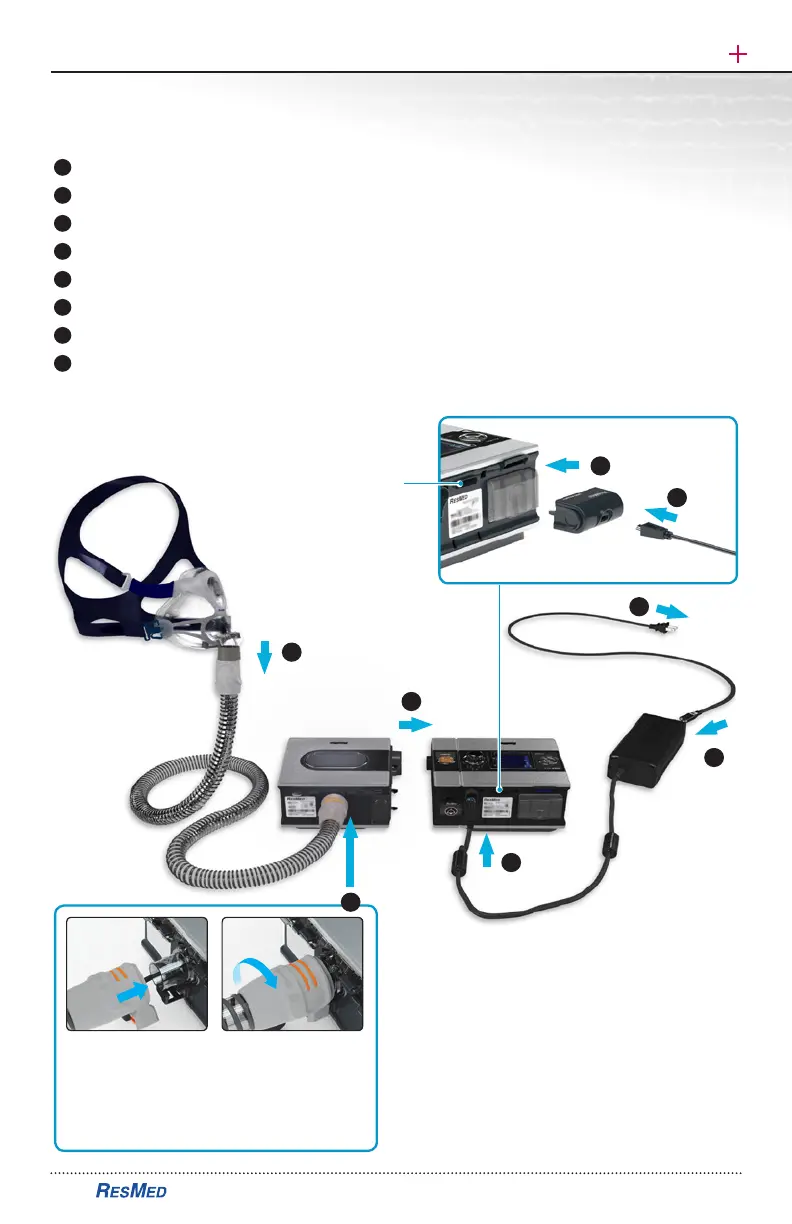

Setting up the S9 VPAP Tx
1
Align the H5i
™
with the S9 VPAP Tx and push them together until they click into place.
2
Connect the DC plug of the power supply unit to the rear of the S9 VPAP Tx.
3
Connect the power cord to the power supply unit.
4
Plug the USB Module into the Module/Adaptor port at the rear of the S9 VPAP Tx.
5
Connect the S9 VPAP Tx to the Tx Link via USB serial cable.
6
Plug the other end of the power cord into the power outlet.
7
Connect one end of the air tubing firmly onto the air outlet.
8
Connect the assembled mask system to the free end of air tubing.
Notes:
•The S9 VPAP Tx does not use the SD Card
function to store data. All necessary data
is transferred via Tx Link and available
through the EasyCare Tx software.
•Always ensure that the S9 VPAP Tx is
placed in an area where the alarm LED
indicators are clearly visible.
•Place the power supply unit away from
the H5i to allow for adequate ventilation.
1
2
3
6
8
To Tx Link
4
5
Module/Adaptor Port
Align the ClimateLine
™
connector with the
outlet port so that the lock symbol is facing
up. Push the ClimateLine firmly onto the air
outlet. Rotate the ClimateLine clockwise
until it clicks into place.
7
S9 VPAP Tx Lab System | Quick Start Guide
Lab Support 24-7 (888) 288-6738
2
