ResMed S9 Series Quick Start Guide

Mask Type and Tube Type Setting
Use the following settings below for each mask type:
Air tubing Inner Diameter Heated Length Settings
ClimateLine 0.6” (15 mm) Yes 6’6” (2 m) Automatically detected
ClimateLine
MAX
Oxy 0.75” (19 mm) Yes 6’3” (1.9 m) Automatically detected
ClimateLine
MAX
0.75” (19 mm) Yes 6’3” (1.9 m) Automatically detected
SlimLine 0.6” (15 mm) No 6’ (1.8 m) If using the SlimLine, Standard or
3 m air tubing, adjust the tube
setting via the Setup menu.
Standard 0.75” (19 mm) No 6’6” (2 m)
3 m 0.75” (19 mm) No 9’10” (3 m)
Mask type Settings
Full Face Full Face
Pillows Pillows
Nasal Nasal*
Pediatric Pediatric
*For Ultra Mirage mask, use Nasal Ultra
Notes:
•For more information on assembling the mask,
see the mask user guide.
•For a complete list of recommended masks and their
settings, go to the ResMed.com Products page
under Service & Support. If you do not have internet
access, please contact your ResMed representative.
Notes:
•When using the SlimLine or ClimateLine above 20 cm H
2
O, the device optimum performance
may not be reached if used with an antibacterial filter. The device performance must be
checked prior to using the SlimLine for use with an antibacterial filter.
•The ClimateLine, ClimateLine
MAX
and ClimateLine
MAX
Oxy are designed only for use with the H5i.

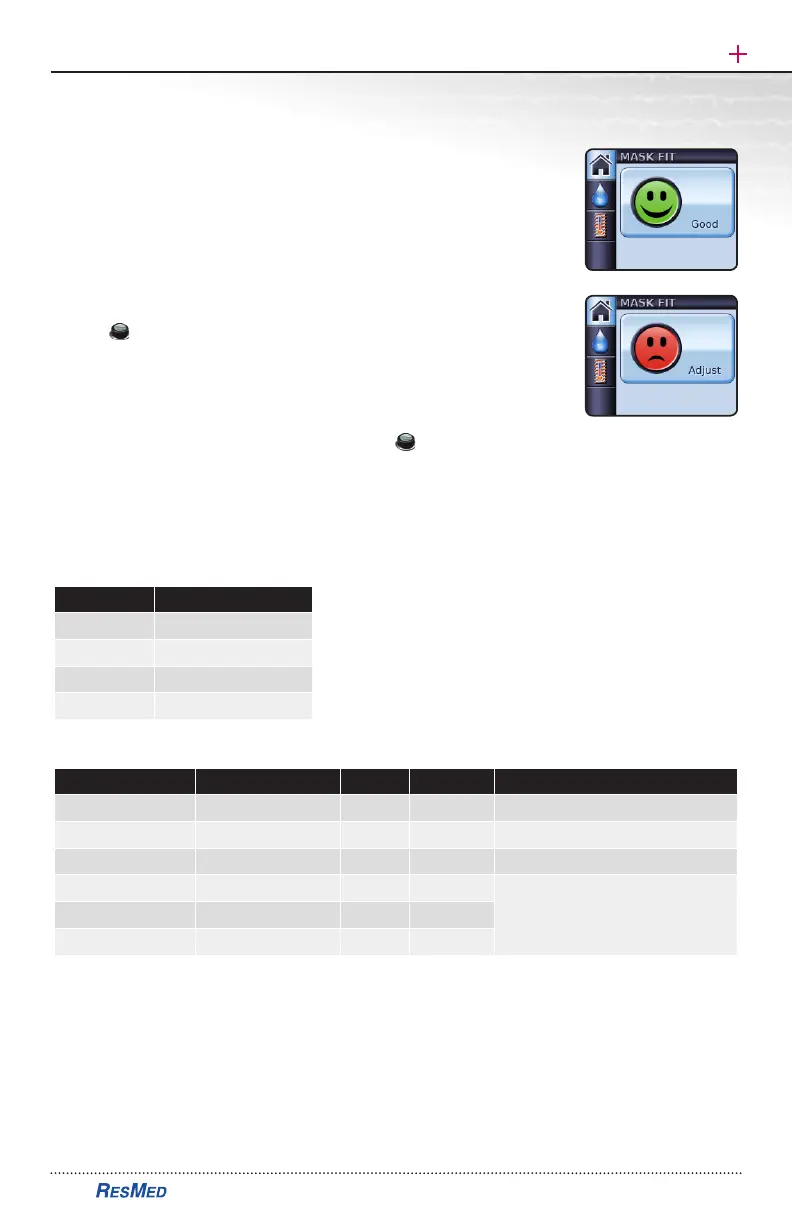

Mask Fit
The Mask Fit feature is designed to help fit the mask
properly to the patient.
It delivers CPAP pressure for a three-minute period,
prior to starting treatment. During this time, the mask
can be adjusted to minimize leaks.
To use Mask Fit:
•Fit the mask as described in the mask information guide.
•Press for at least three seconds. One of the MASK FIT
screens is displayed (as shown on the right).
•If necessary, adjust the mask, mask cushion and headgear until
there is a secure and comfortable fit. After three minutes,
the pressure reverts to the set pressure and treatment will
begin. You can end Mask Fit at any time by pressing .
S9 VPAP Tx Lab System | Quick Start Guide
Lab Support 24-7 (888) 288-6738
4

ResMed S9 Series Specifications

General

Data Storage	SD card
Device Type	CPAP Machine
Pressure Range	4 to 20 cm H2O
Sound Level	24 dB
Power Supply	100-240V AC, 50/60Hz
Therapy Modes	CPAP, VPAP ST, VPAP Auto
Altitude Adjustment	Yes
Operating Temperature	+41°F to +95°F (+5°C to +35°C)
Operating Humidity	10% to 95% non-condensing
AC Voltage	100-240V AC
Humidifier	optional
Ramp	Yes
