GENERAL INFORMATION—CONTINUED
Dimensions

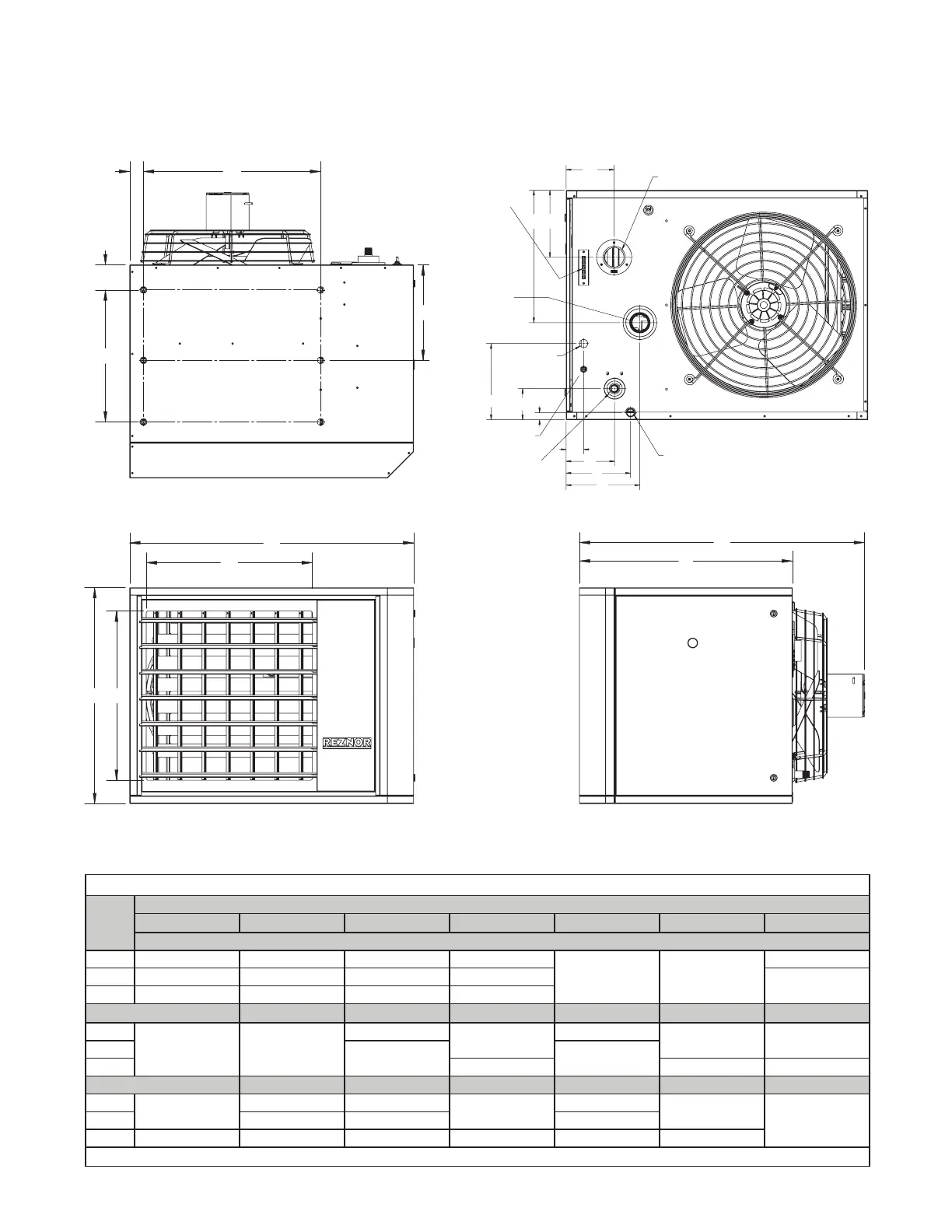

Figure 2. Dimensions—Unit Sizes 055–110 (Refer to Table 5)
Table 5. Dimensions (Unit Sizes 055–110)
Unit
Size
Dimension (See Figure 2)
A B C D
E* F* G*
Inches (mm)
055 17-5/8 (448) 28-1/4 (718) 12-1/2 (318) 15-7/8 (403)
2-27/32 (72) 1-9/16 (40)
18-1/8 (460)
085 21 (533) 30-1/4 (768) 16-7/8 (429) 17-7/8 (454)
20-1/8 (511)
110 24-1/2 (622) 32-1/4 (819) 19-1/4 (489) 18-7/8 (479)
H*
J K
L*
M N P
055
15 (381) 24-1/4 (616)
31 (787)
12 (305)
2 (51)
3-3/16 (81) 4-7/8 (124)
085
33 (838) 1-7/8 (48)
110 10-7/8 (276) 5-3/16 (132) 6-7/8 (175)
R S T W X Y Z
055
6 (152)
7-1/4 (184) 3-1/4 (83)
3-3/16 (81)
6-1/8 (156)
2-1/4 (57)
3/4 (19)085 10-11/16 (271) 3-11/16 (94) 10-11/16 (271)
110 7-7/8 (200) 14-1/8 (359) 7-7/8 (200) 5-1/8 (130) 8-1/8 (206) 3-3/8 (86)
*Heater suspension points (3/8-16 FEM).
B
D
C
A
FRONT VIEW
F
G
E
H
L
TOP VIEW
J
K
RIGHT SIDE VIEW
M
N
P
R
W
T
S
X
Y
Z
CONDENSATE
DRAIN
GAS
CONNECTION
DISCONNECT
SWITCH
LOW
VOLTAGE
ENTRANCE
VENT
CONNECTION
COMBUSTION
AIR INLET
THERMOSTAT
CONNECTION
REAR VIEW
