SELECTION OF LOCATION FOR INSTALLATION
INDOOR UNIT
· The installation of the indoor unit must be carried out on a solid and vibration-free wall.
· There should be no obstruction of the air flow into and out of the unit and the air should
be evenly distributed around the whole of the room.
· Do not install the unit near sources of heat, steam or inflammable gases.
· Install the unit near an electric socket or connect it directly to the power supply.
· Do not install the unit in a place which is exposed to direct sunlight.
· Install the unit in a place where it can be easily connected to the outdoor unit.
· The place selected should allow easy drainage of the condensed water.
· Allow sufficient space for maintenance around the appliance, as shown in the diagram.
· Install the indoor unit so that the filter is easily accessible.
OUTDOOR UNIT
· Do not install the outdoor unit near sources of
heat, steam or inflammable gases.
· Do not install the unit where a strong wind blows
or it is very dusty.
· Do not position the unit where people often pass.
· Select a place where the air discharge and opera
ting sound level will not annoy the neighbours.
· Avoid installing the unit where it will be exposed
to direct sunlight (otherwise use an awning for
protection, if necessary. This should not interfere
with the air flow).
· Leave the spaces shown in the figure for the air to
circulate freely.
· Install the outdoor unit in a safe and solid place.
· If the outdoor unit is subject to vibration, fix
rubber gaskets onto it.
600
1
600
100
200
100

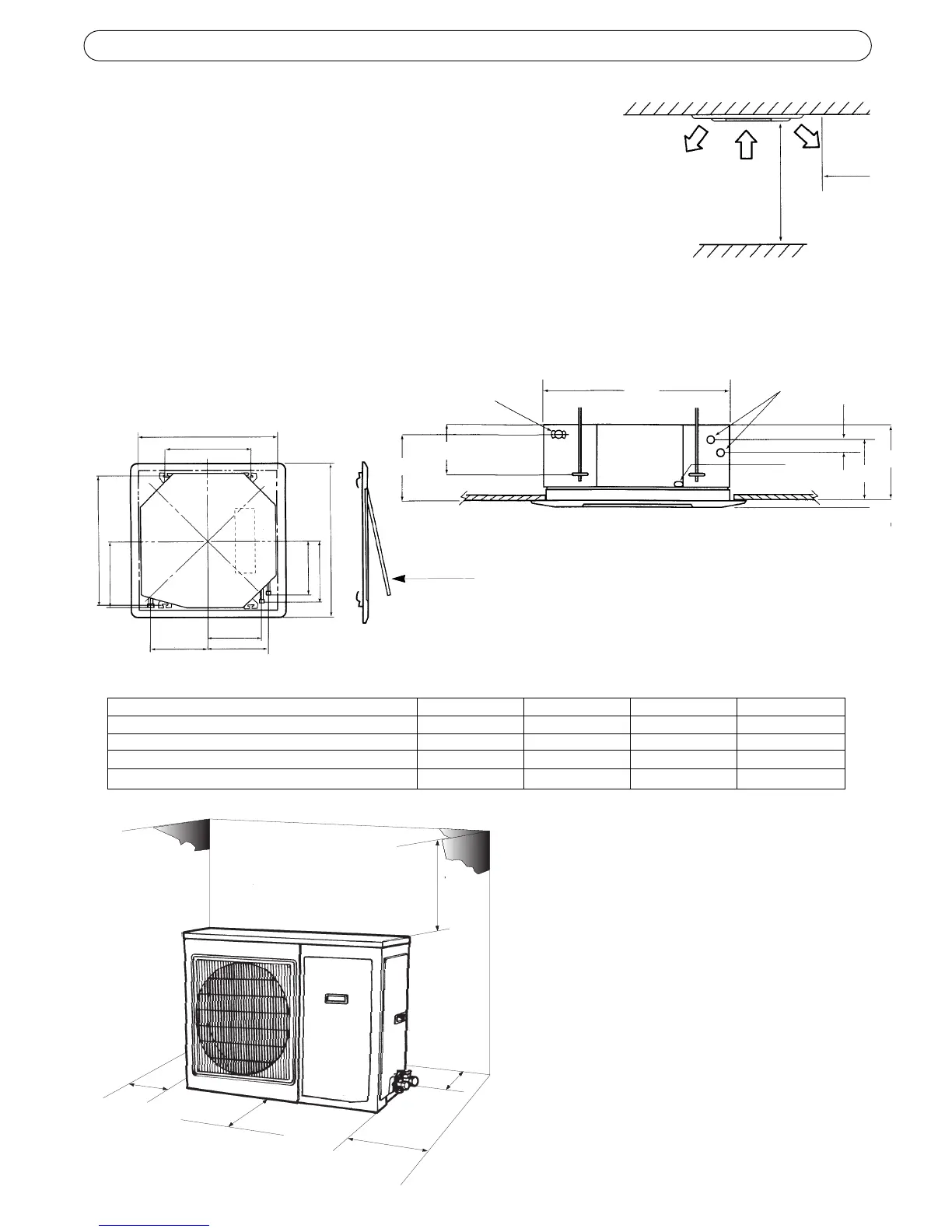

INDOOR UNIT DIMENSIONS
SIDE VIEW
PANEL SECTIONAL VIEW
PLAN VIEW
min. 100cm
min.
100cm
refrigerant pipes
condensed water drain
cable entry
60
830
512
330
370
350
785
340
950
390
418
A
D
B
C
MODEL BTU/h 18000 24000 36000 48000
A - distance from ceiling mm 290 290 340 340
B - distance from hanging brackets mm 180 180 130 230
C - distance between drain pipe and ceiling mm 230 230 280 280
D - position of refrigerant pipes mm 165 165 215 215
