CORRECT DRAINAGE OF CONDENSED WATER FROM THE INDOOR UNIT IS ESSENTIAL
FOR SUCCESSFUL INSTALLATION.
pipe insulator
refrigerant pipe
power cable
condensed water
drain hose
insulation sleeve
probe cable
refrigerant pipe

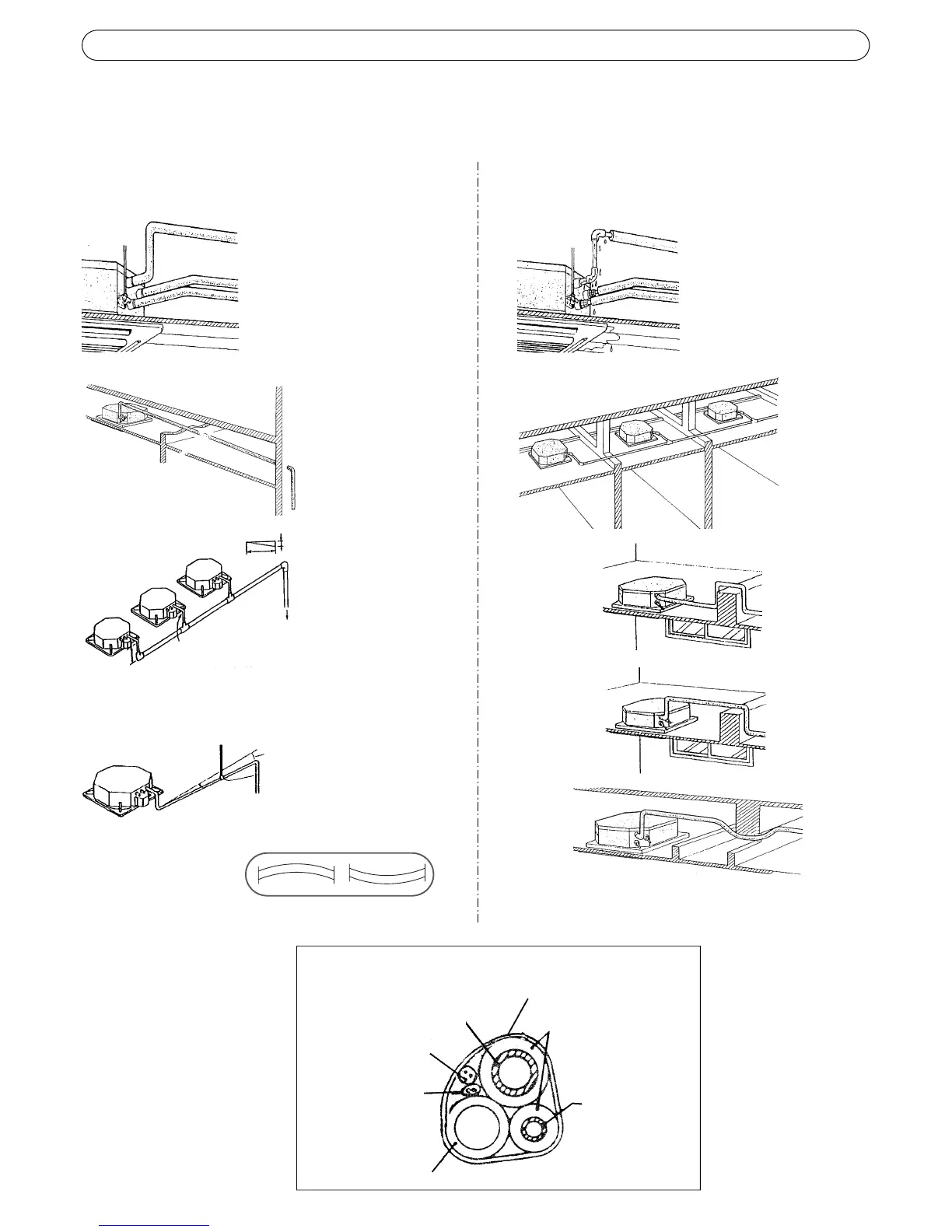

DRAINAGE OF THE INDOOR UNIT CONDENSED WATER
4
Examples are given below which show how to correctly carry out the connection of the condensed water drain
CORRECT INSTALLATION
Preparation of piping
When several units
are installed near to
each other and only
one drain hose is
used, make sure that
the capacity of the
hose is sufficient and
that it is positioned on
a slightly lower level
than the appliance.
The condensed water
drain hose should be
fixed using interme-
diate mounts to pre-
vent deformation of
the hose as shown in
the drawing below
The drain hose should
have a slight
downward gradient to
allow smooth draina-
ge of the condensed
water
The piping has been correctly
insulated
The piping has not been
correctly insulated
INCORRECT INSTALLATION
The drain
hose is on the
same level as
the evapora-
tor unit
The drain hose is bent or points upwards
