ELECTRICAL CONNECTIONS
7
DUCT-TYPE USE
6
1.Remove the cover of the terminal box.
2.Connect the signal cable connector (only present in the heat pump versions).
3.Connect the power cable wires to the terminal box following the same numbering used on the
indoor unit.
4.Fix the cables using the cable clamp.
5.Replace the cover.
power cable
cable clam
cover
probe cable
outdoor unit
OUTDOOR UNIT DISMANTLING

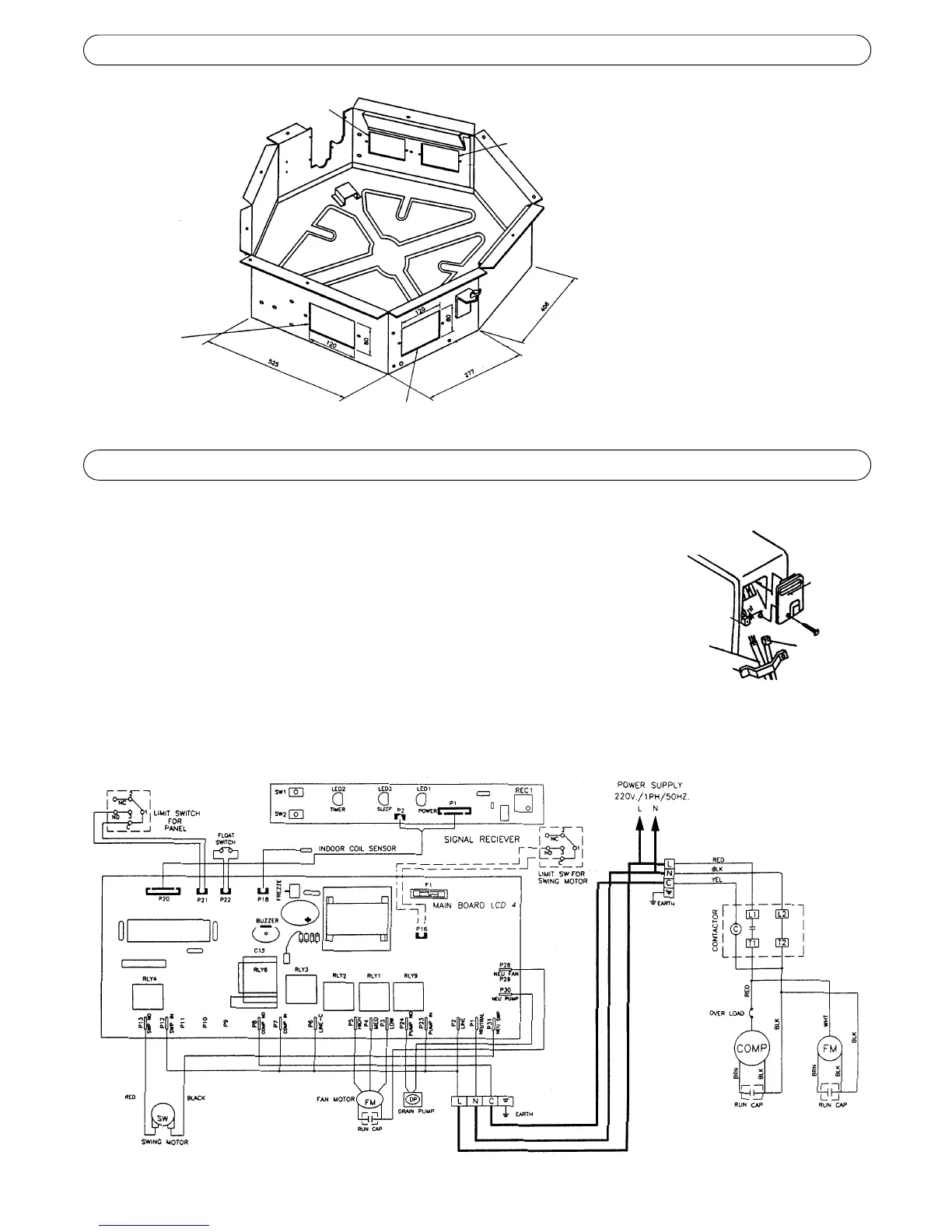

WIRING DIAGRAM :
18000 - 24000 BTU/h COOL ONLY VERSION
The indoor unit of the cassette-type model
allows the appliance to be used as a duct-
type model thanks to the purpose-made ope-
nings shown in the figure.
This method of installation can be very use-
ful if you wish to air condition several rooms
using just one unit.
intake of external air
air delivery for outlet through
air delivery for outlet through
air delivery for
outlet through
INDOOR UNIT
OUTDOOR UNIT
