1.Wrap some insulating material around the joints of
the indoor unit and fasten it with insulation tape.
2.Fix the surplus part of the signal cable to the piping or to
the outdoor unit.
3.Fix the piping to the wall (after covering it with
insulation tape) by means of the clips or insert the pipes
into plastic trunking.
4.Seal the hole in the wall through which the pipes pass to
prevent infiltration of water or air.
TEST RUN
Check the following points:
1. INDOOR UNIT
1. Do the ON/OFF and FAN buttons operate normally?
2. Does the MODE button operate normally?
3. Do the SET POINT and TIMER buttons operate normally?
4. Do all the indicator lights illuminate?
5. Do the louvers for the direction of air flow work properly?
6. Is the condensed water drained off properly?
NOTE:
The electronic control only gives the go-ahead for the compressor to start three minutes after the power has been switched on.
Insulating material
insulation tape
piping
gasket
(outdoor)
(indoor)
sleeve
wall
clips
piping
8
FINAL STAGES
2. OUTDOOR UNIT
1. Are there noises or vibrations during operation?
2. Will the noise, air flow or drainage of condensed water
disturb the neighbours?
3. Are there refrigerant leakages?

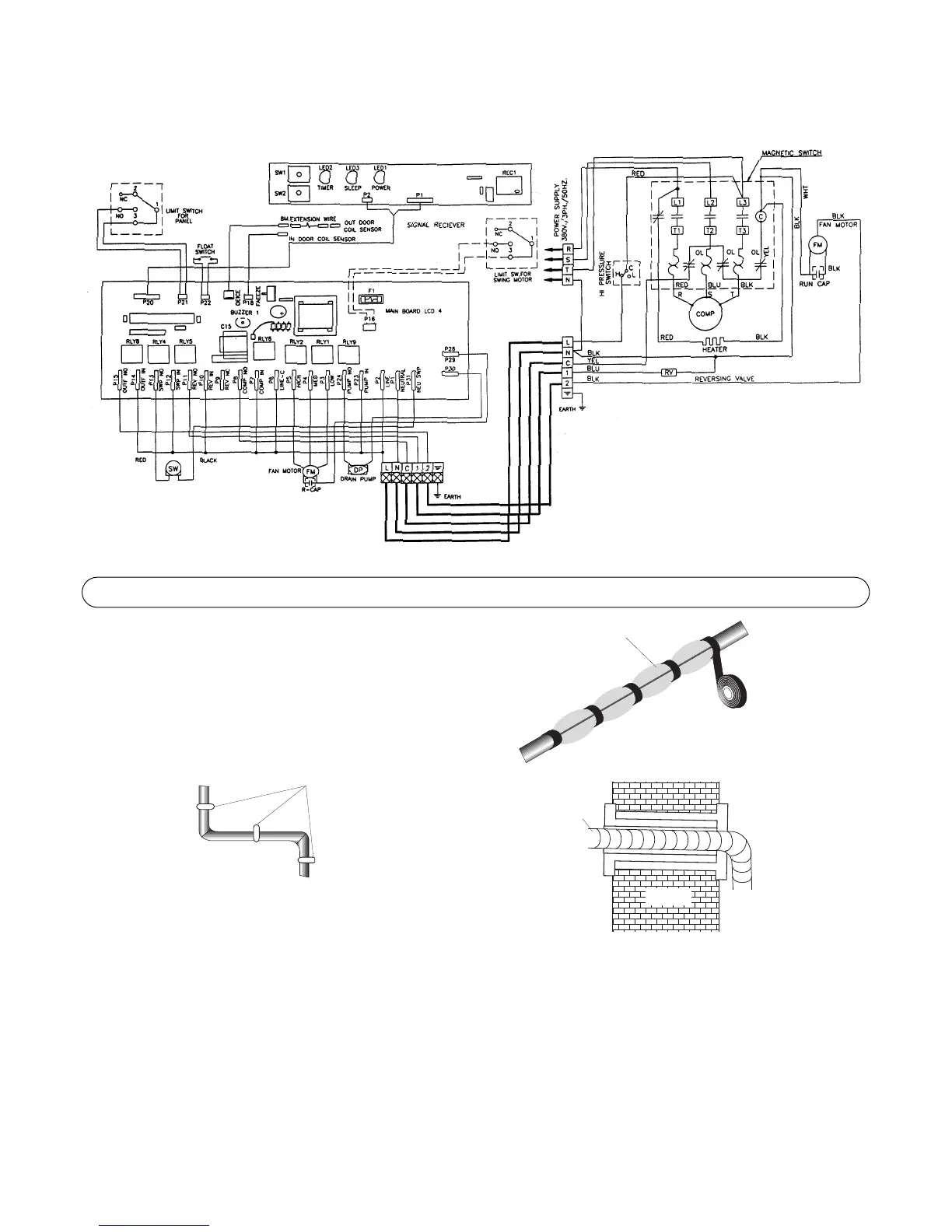

WIRING DIAGRAM
36000 - 48000 BTU/h HEAT PUMP VERSION
INDOOR UNIT
OUTDOOR UNIT
