Ricoh Aficio SP 5210DN - Component Layout

SH-P1 Training
29
Slide 29

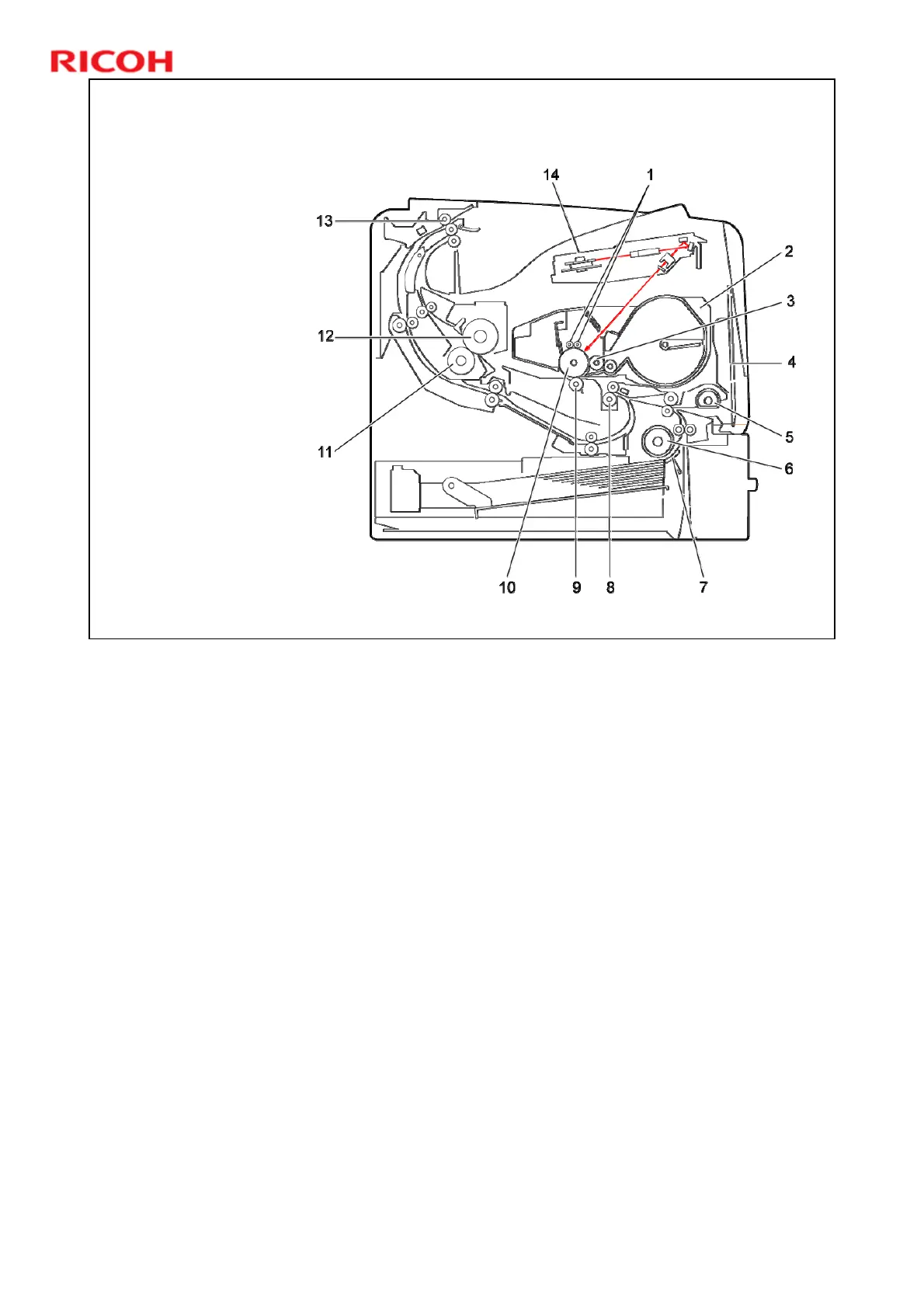

Component Layout
1. Charge roller
2. Cartridge (AIO-
type)
3. Development roller
4. By-pass feed tray
5. By-pass feed roller
6. Paper feed roller
7. Friction pad
8. Registration roller
9. Development roller
10. Drum
11. Pressure roller
12. Hot roller
13. Paper exit roller
14. Laser unit
 This slide shows the major components. Details will be covered later.
 The AIO (all in one unit) contains the drum, charge rollers, toner, development
mechanism, and drum cleaning mechanism.
