Ricoh Aficio SP 5210DN - Automatic Power Control (APC)

SH-P1 Training
62
Slide 62

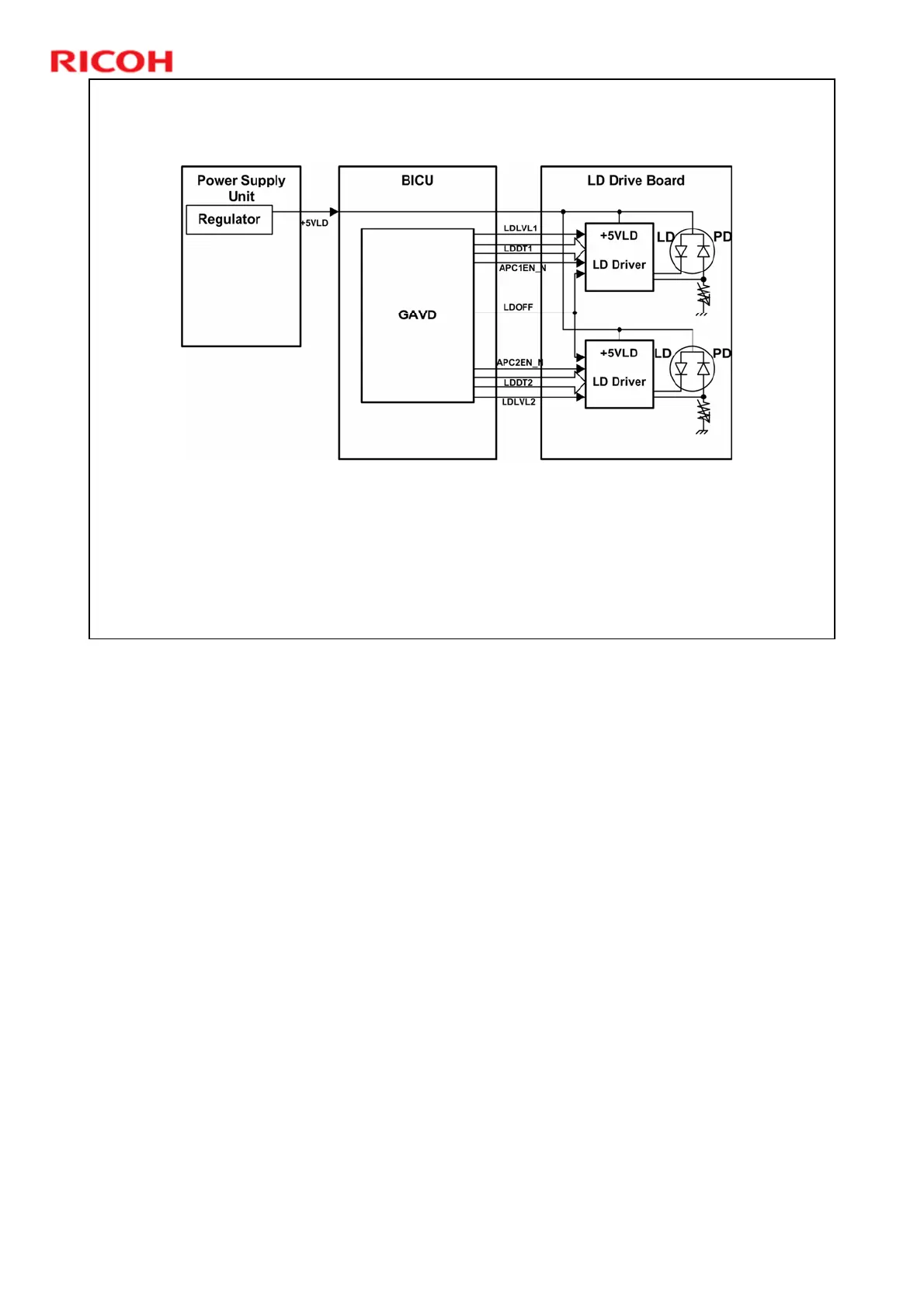

Automatic Power Control (APC)
 The LD driver on the LD drive board automatically controls power
for the laser diodes.
 The laser diode power is adjusted in the factory.
 Never adjust the variable resistors on the LD unit in the field.
No additional notes.
