Ricoh Aficio SP 5210DN - Paper Size Detection

SH-P1 Training
55
Slide 55
Paper Size Detection

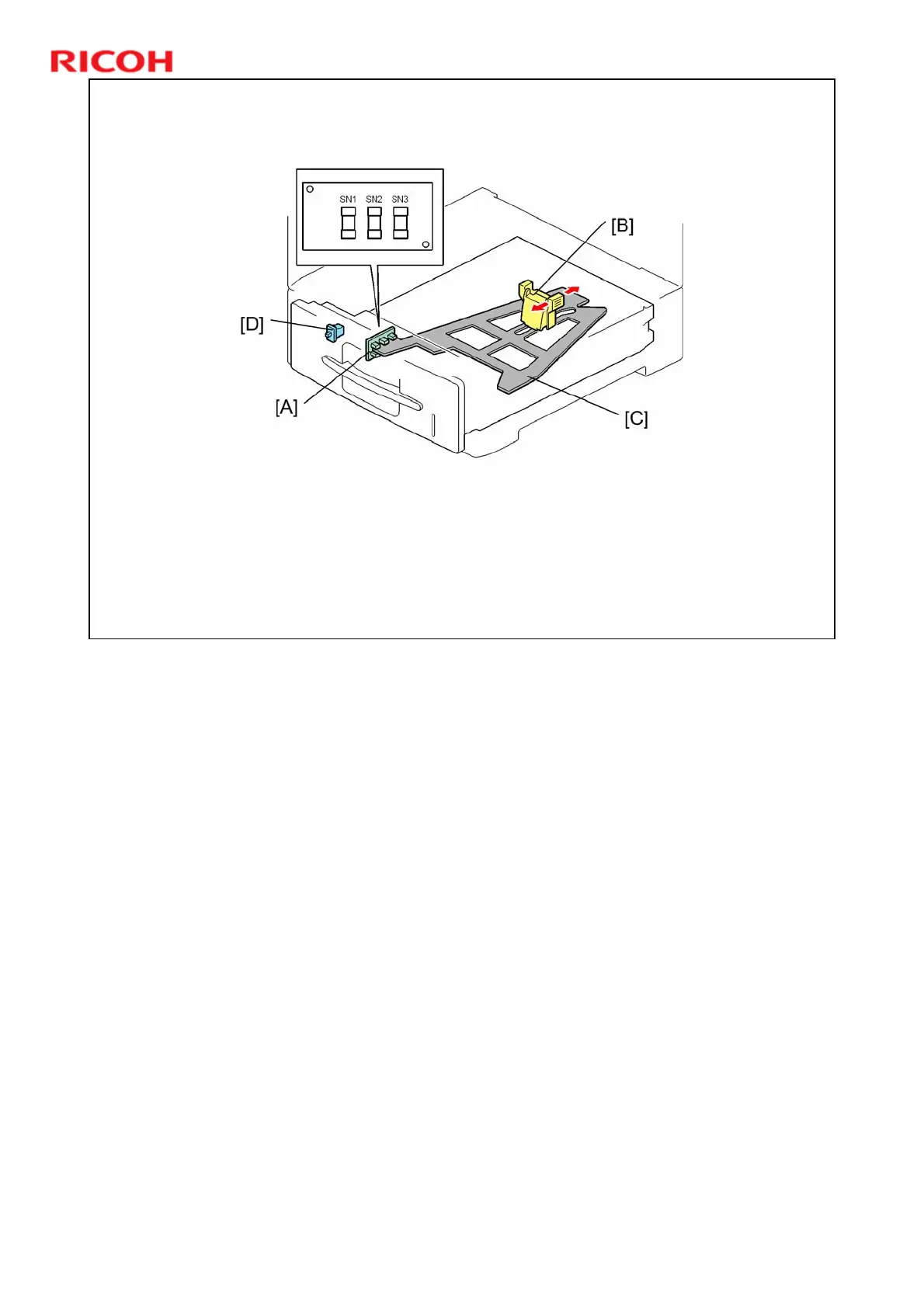

 The paper size detection sensor board [A] detects the size of the paper in the
paper tray.
 Sliding the end fence [B] changes the position of the paper size actuator [C].
 Paper size detection occurs after the tray set switch [D] detects the paper tray.
 See the paper size detection table on the next slide.
